Only 2N.M torque, long service life, full degreasing, sealing elastic compensation, very small size, no internal retention, appearance close to no dead ends, very flexible function combination, maintenance without professional tools, economical, simple and reliable.
| Specifications | 1/2"-4", DN10-DN100 |
| Material | 304/1.4301, 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5% |
| Pressure | Vacuum to 10bar (1.0 MPa) |
| Temperature: | PTFE -20℃ to +130℃, Depending on the seal material |
| Sealing | TFM; PTFE; PTFE+Carbon; PEEK |
| Connection standard: | DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853 |
| Connection method | Thread, clamp, welding, flange |
| Drive mode | manual, turbo, pneumatic, electric |
| Surface finish | Ra≤0.8μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm |
| Certification | FDA 177.2600; 3A-68-00; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC. |

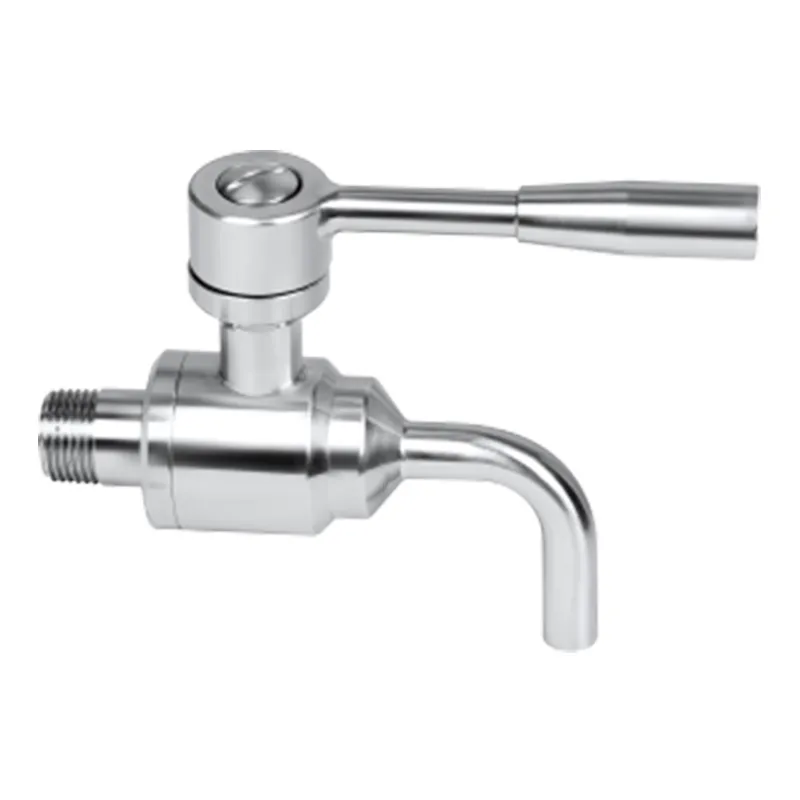

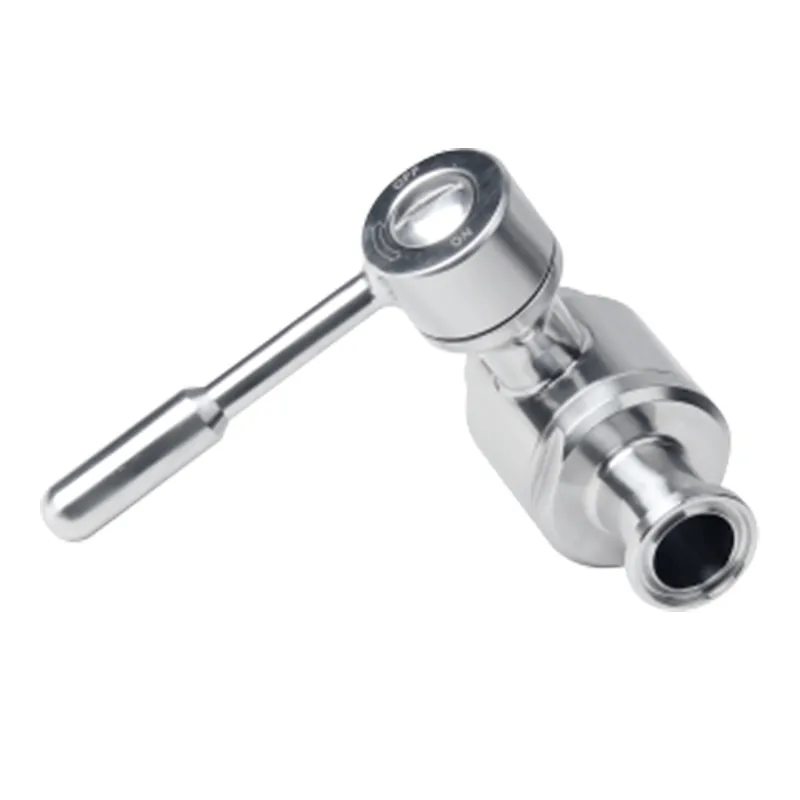

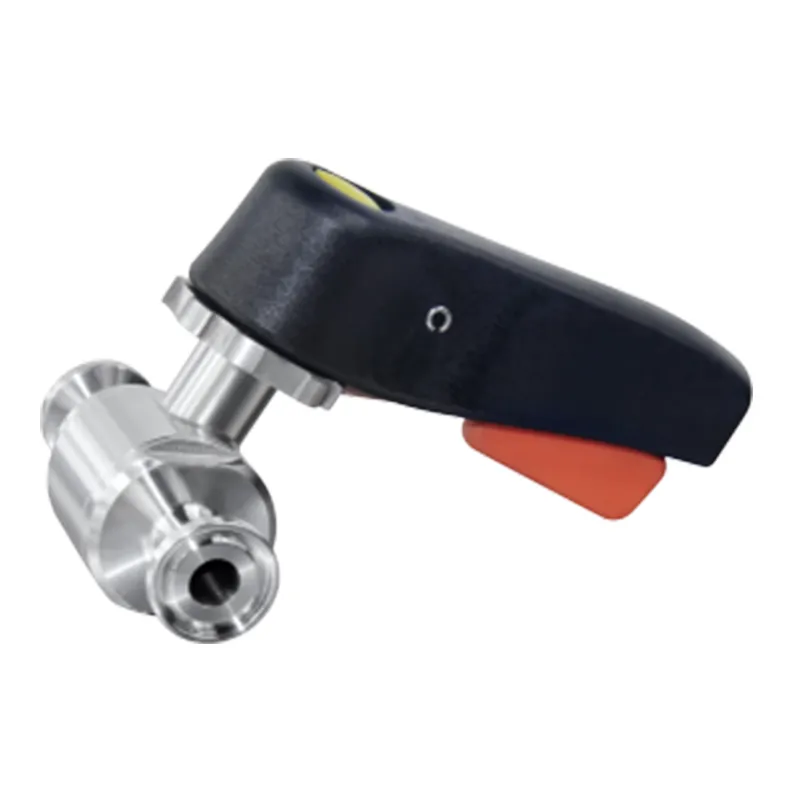

Compact design saves space, Donjoy's mini ball valve delivers smooth flow control with minimal 2N·m torque. FDA/3A compliant for sanitary safety—ideal for tight layouts. Easy to install, reliable for pharma and food applications. Optimize your system with Donjoy's precision engineering.
