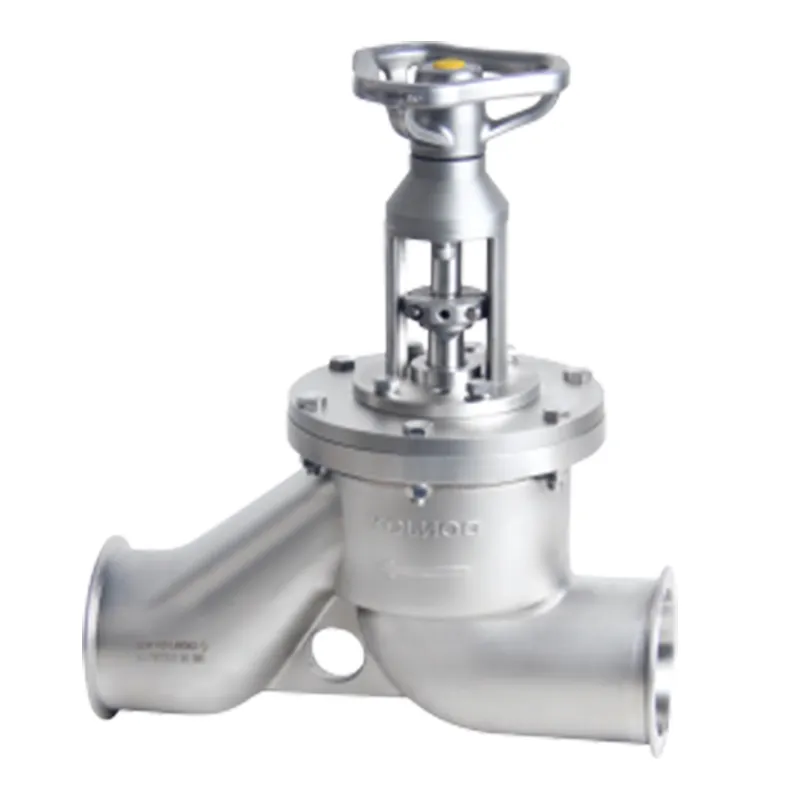

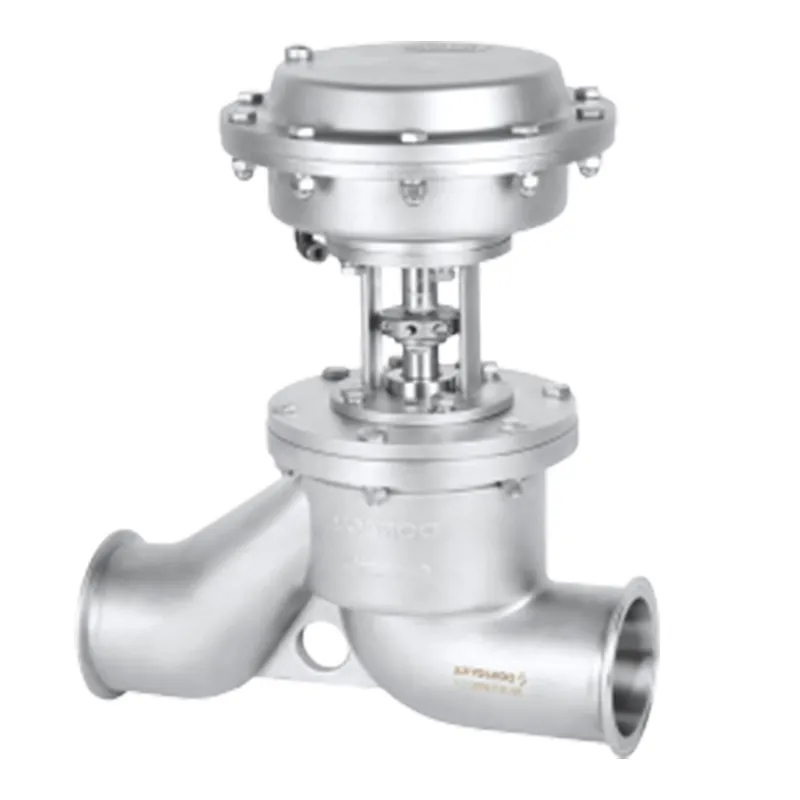

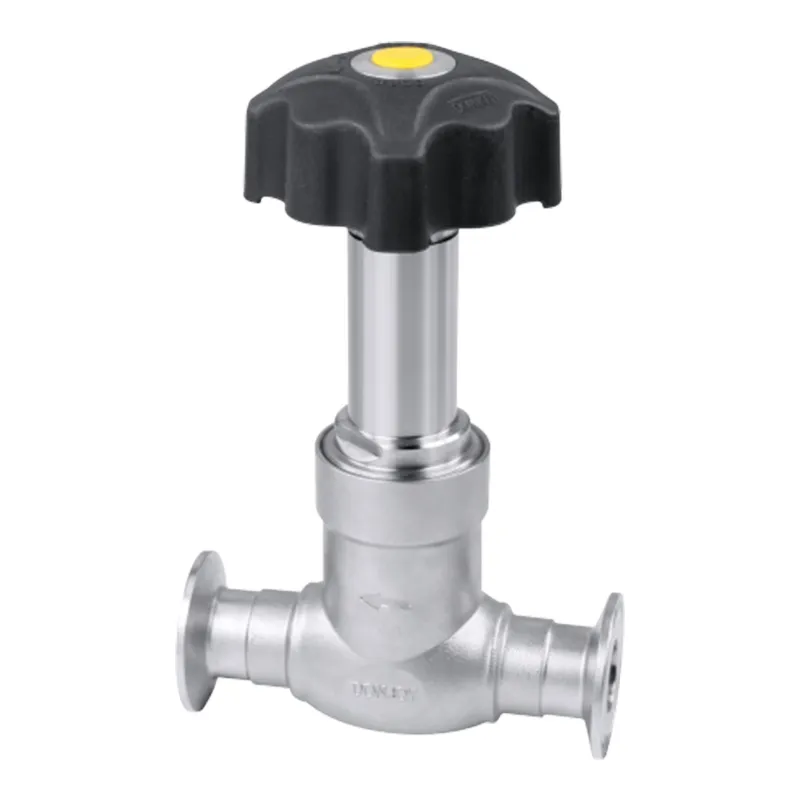

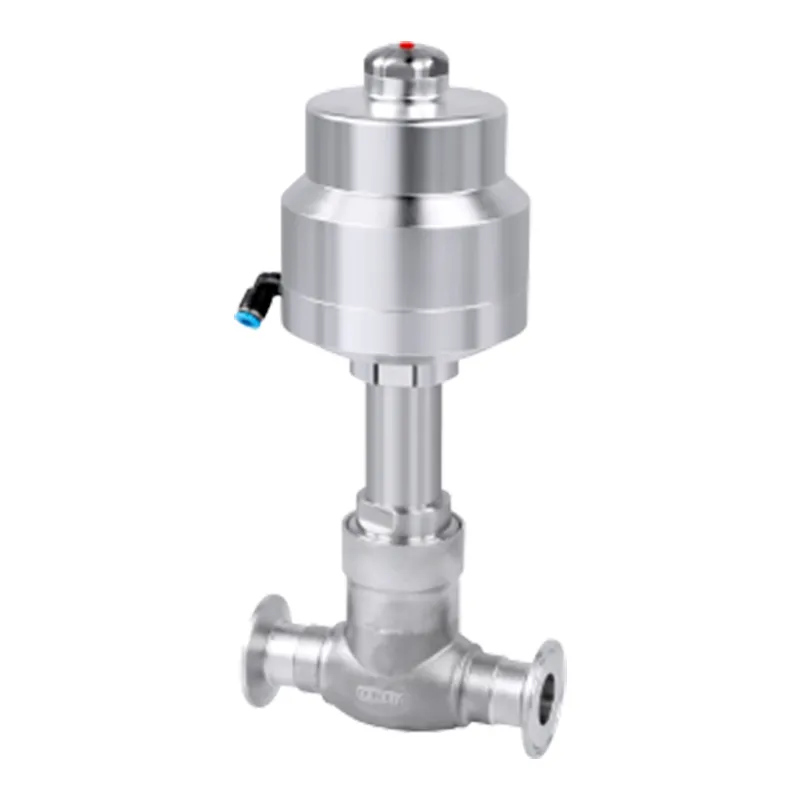

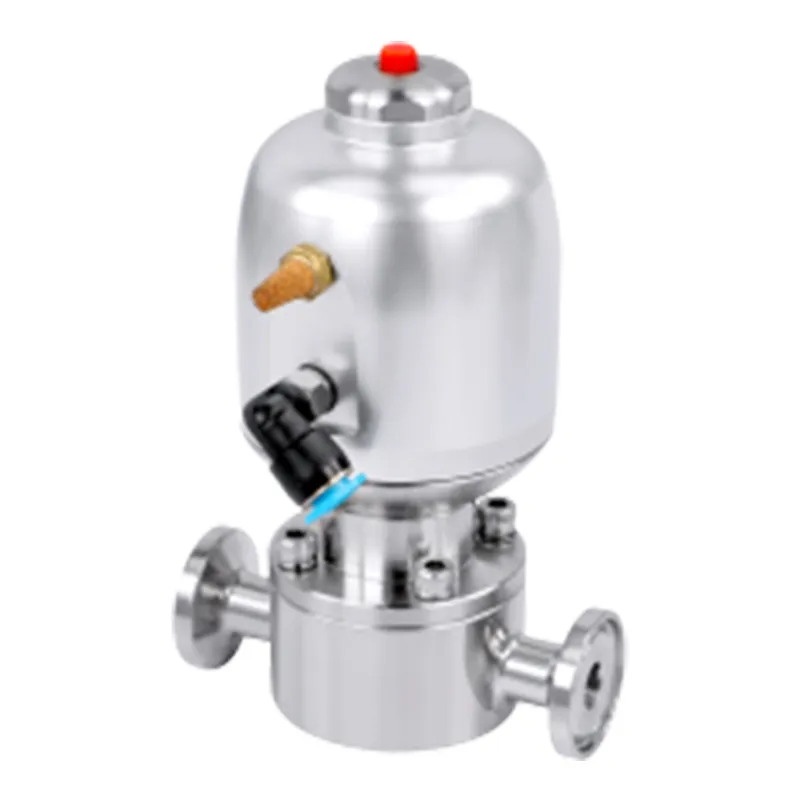

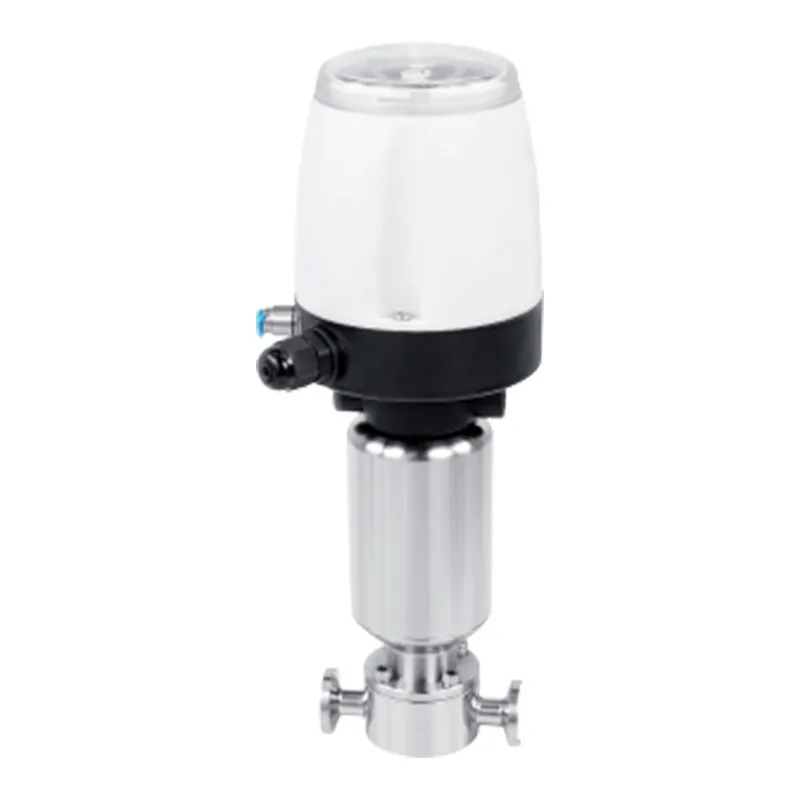

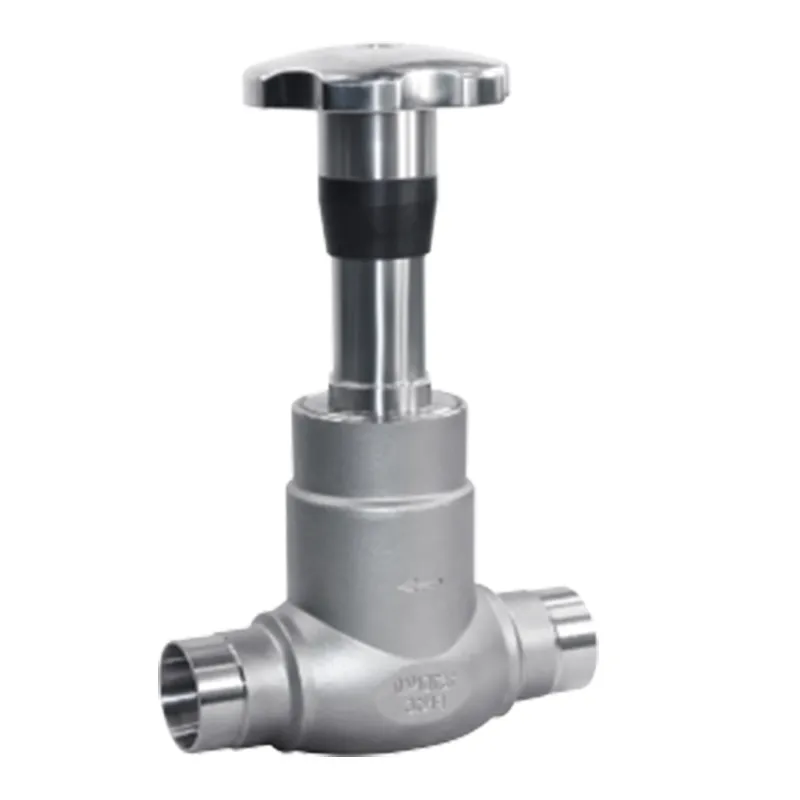

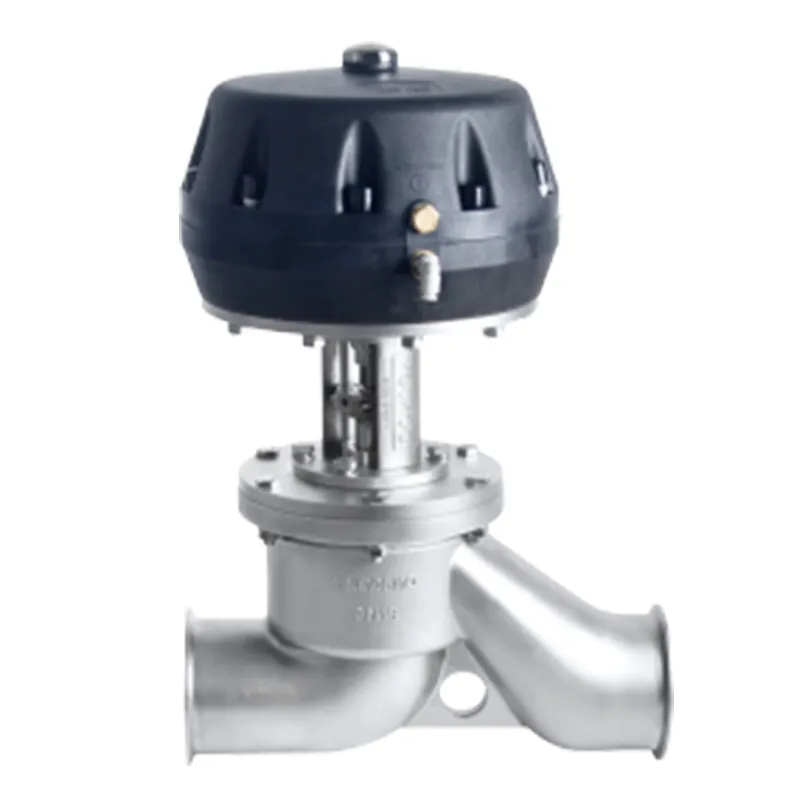

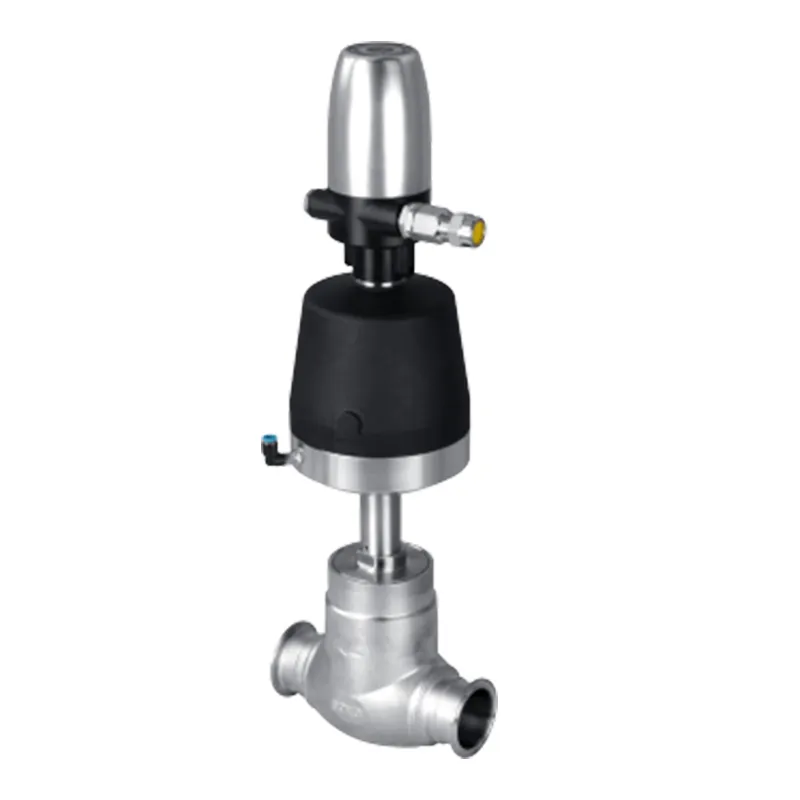

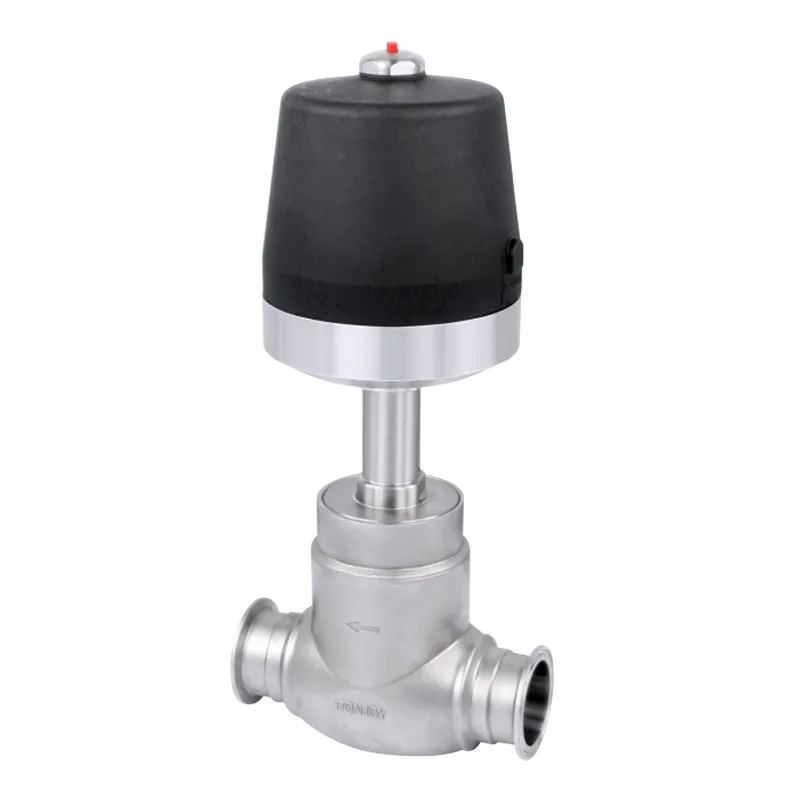

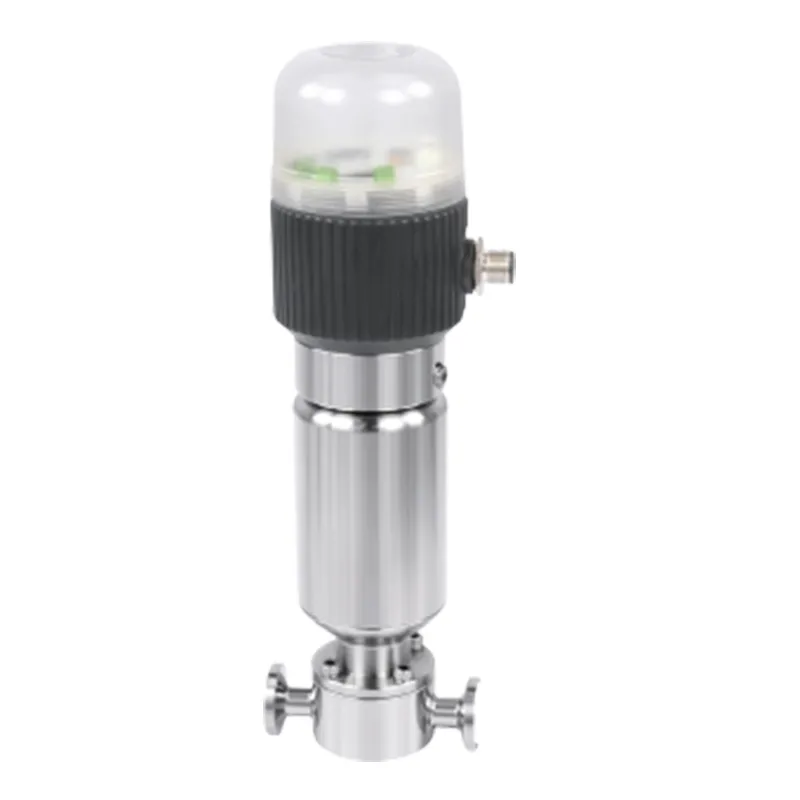

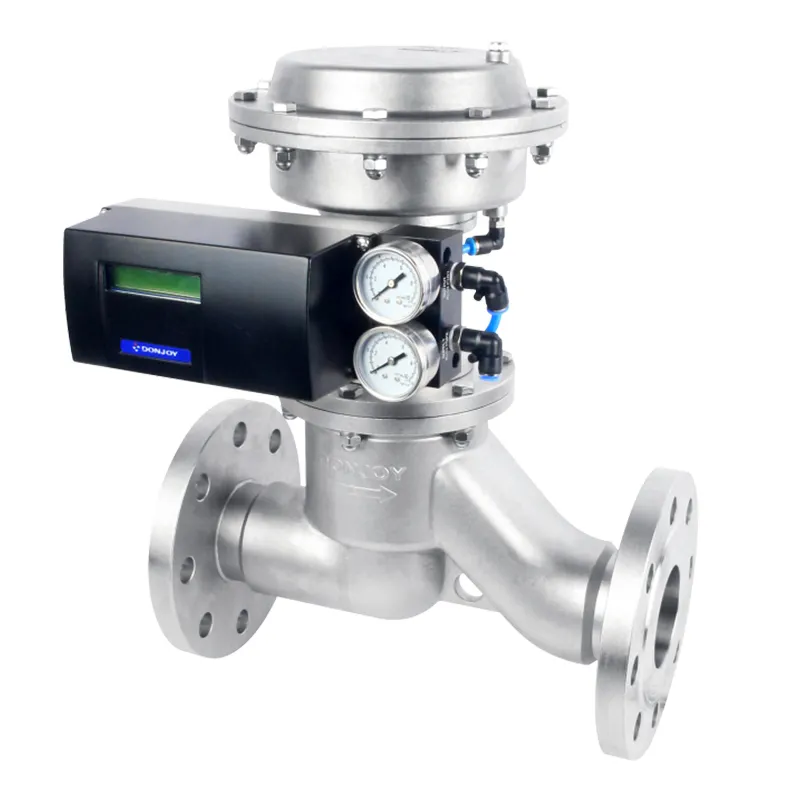

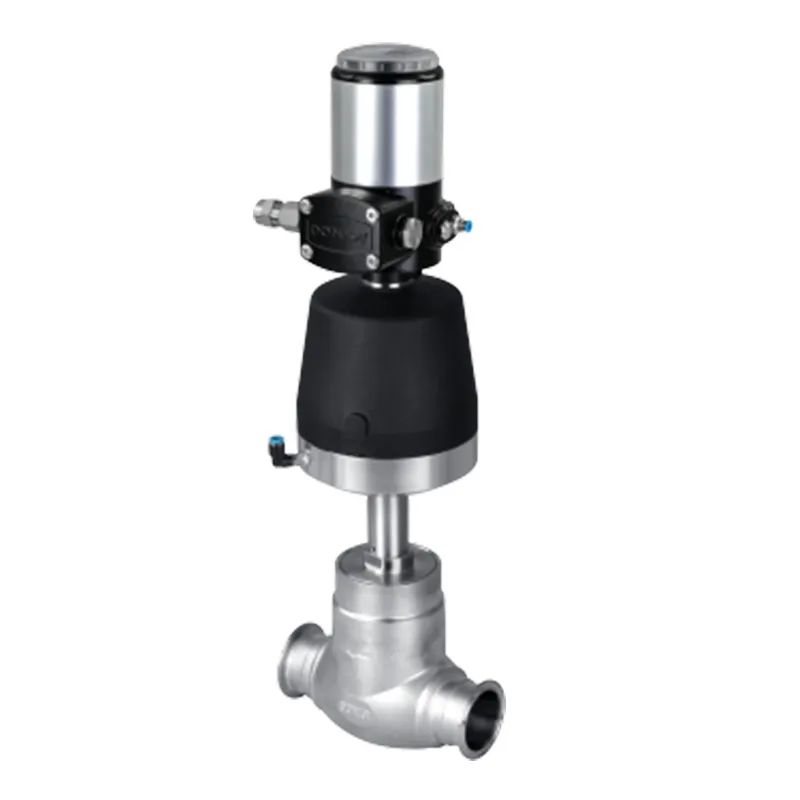

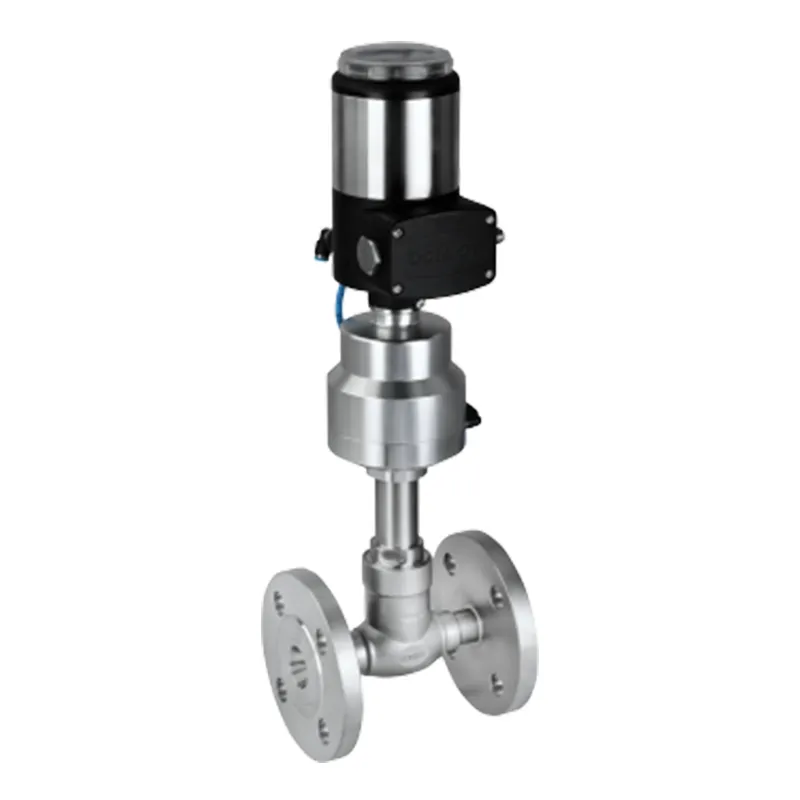

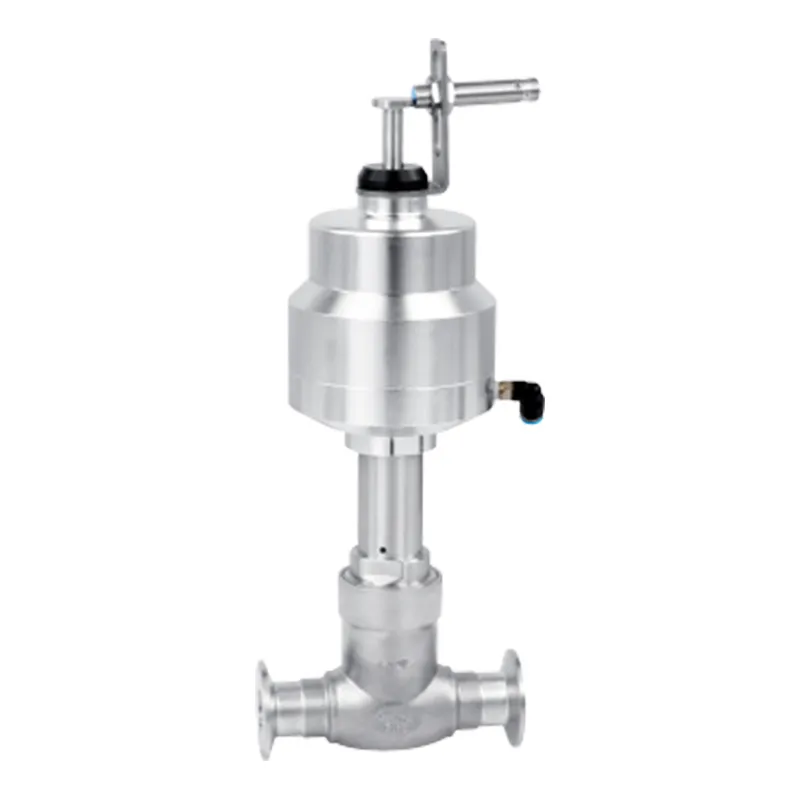

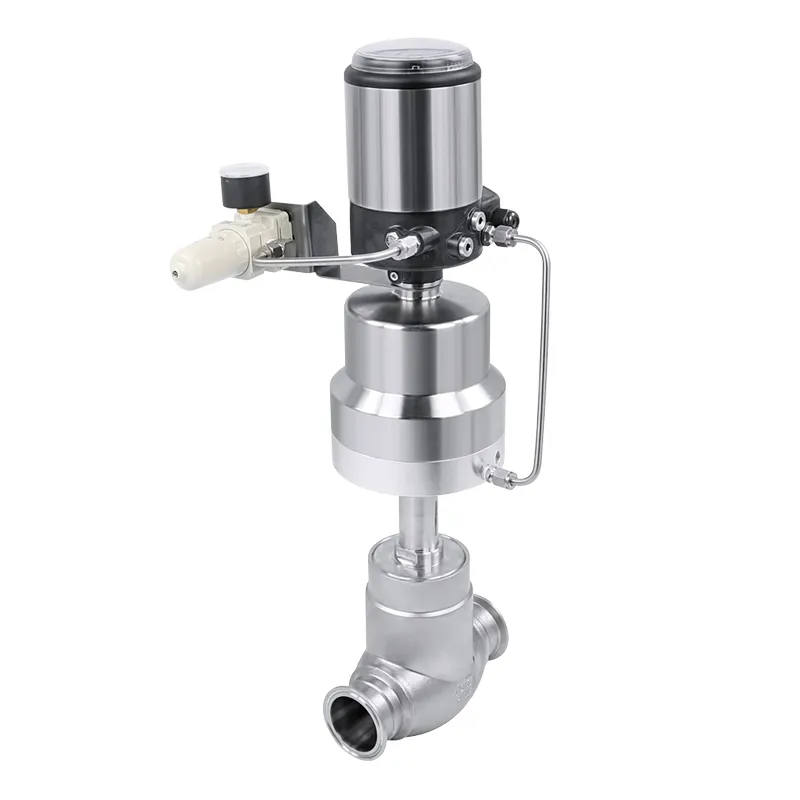

The globe valve has the same flux as the diameter, minimal flow resistance, no noise when opening and closing, no dead ends, it suitable for vacuum environments. When used for on-off valve, the flow rate and the diameter are equal ; As a regulating valve, it has good KV value curve characteristics.
| Specifications | 1/4"-4", DN4-DN100 |
| Material | 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5% |
| Pressure | vacuum to 10bar (1.0 MPa) |
| Temperature | -20℃ to +150℃, Depending on the seal material |
| Sealing | PTFE/TFM/PEEK |
| Connection standard | DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853 |
| Connection method | thread, clamp, welding, flange |
| Drive mode | manual, pneumatic, electric |
| Finish | Ra≤0.6μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm |
| Certification | FDA 177.2600; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC; |

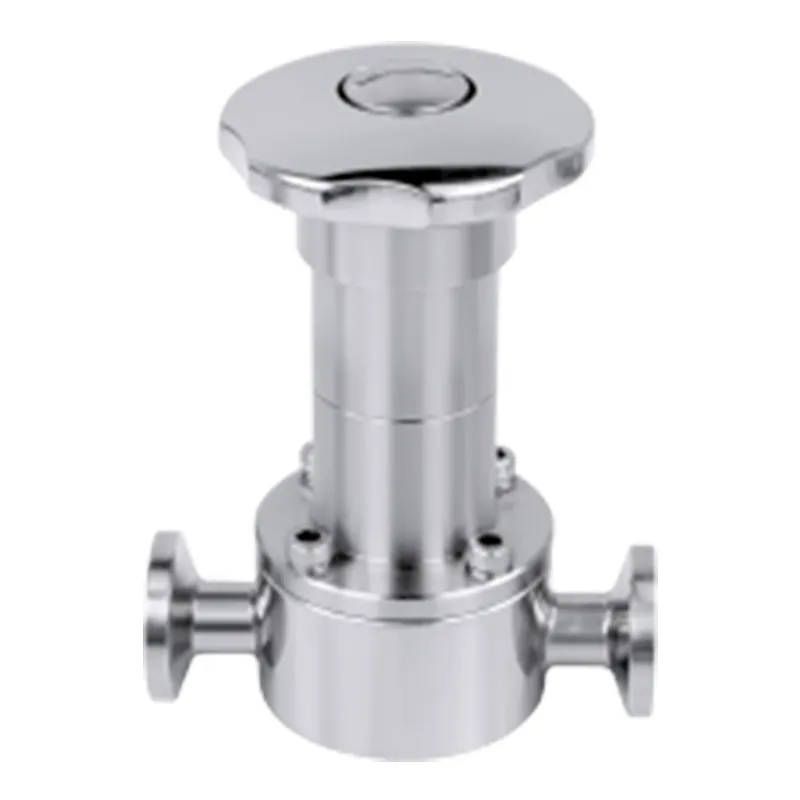

Experience superior sanitary performance with our diaphragm pneumatic globe valve, ideal for biopharmaceutical and food industries. Featuring PTFE isolation, zero dead space, and 3A certifications, it ensures leak-proof reliability and easy cleaning. Enhance your process safety and efficiency—choose innovation for seamless operations
