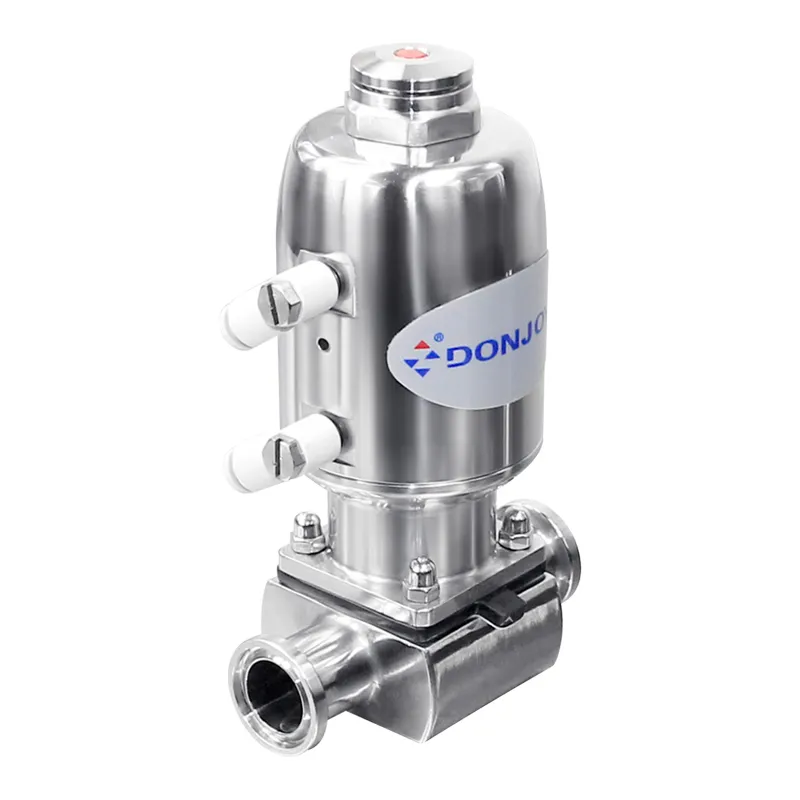

It is a diaphragm-type filling valve with flow switchable, adjustable, sterile, no dead ends, and no retention.
-
-
- EN
It is a diaphragm-type filling valve with flow switchable, adjustable, sterile, no dead ends, and no retention.
| Specification | 1/4"-3/4", DN4-DN15 |
| Cylinder diameter (D) | 38 and 52mm |
| Pressure | ≤ 3bar |
| Material | 304/1.4301, 316L/1.4404 |
| Temperature | -20℃~130℃ |
| Diaphragm | EPDM/FKM/ EPDM+PTFE |
| Life | ≥10 million times |
| Action frequency | ≥5 times/S |
| Valve body structure | 2-way, three-way |
