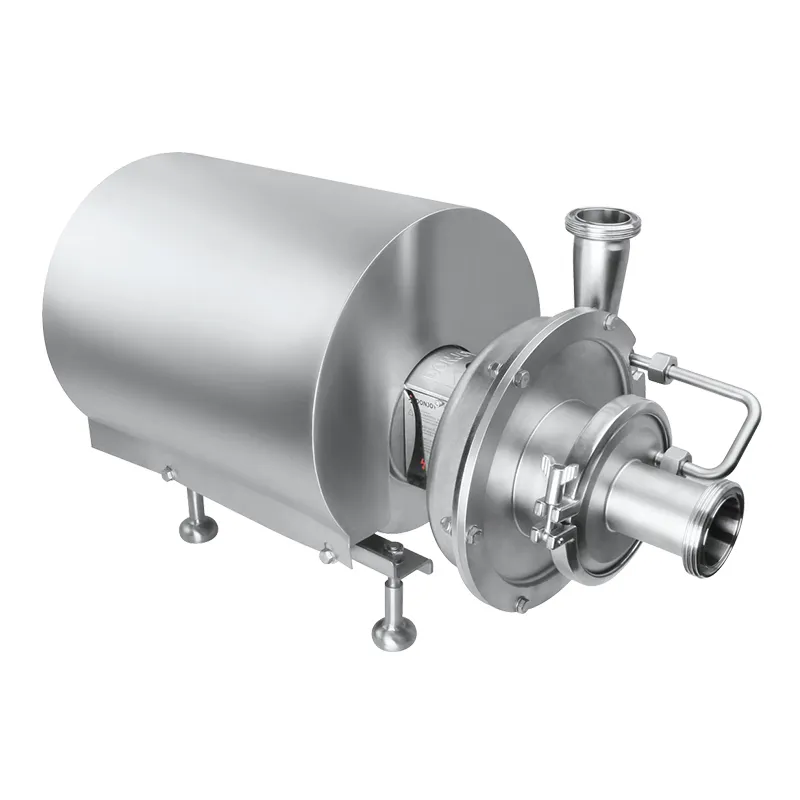

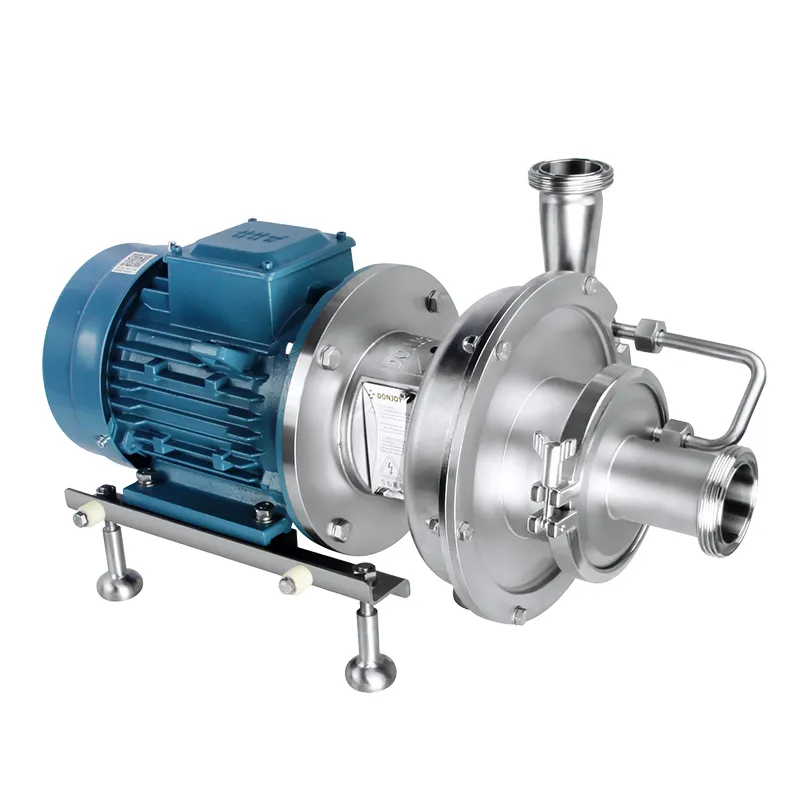

The ZLX series is a self-priming centrifugal pump. It can be used as a self-priming return circulation pump in a CIP system or as a centrifugal pump. The maximum viscosity of the conveyed material is 500CP.S (mPas). The pump has the technical advantages of high efficiency, low noise, high cleanliness, and easy cleaning of wetted parts.
| Max Flow | 70m3/h |
| Max Head | 70M |
| Temperature | -20℃ to 150℃ |
| Material | 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5% Dual-phase steel 2205, Hastelloy alloy C276 |
| Surface treatment | ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm |
| Mechanical seal | Single mechanical seal, double mechanical seal, details see configuration table |
| Inlet/Outlet | Thread, clamp, flange, Aseptic flange |
| Certification | 3-A-02-12(N.O.1579); MD/06/42-EC (N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004 |
Self-priming centrifugal pump with max flow of 70 m³/h and suction capability for CIP return duties. Reliable for chemical infusion or tank filling with minimal maintenance.
