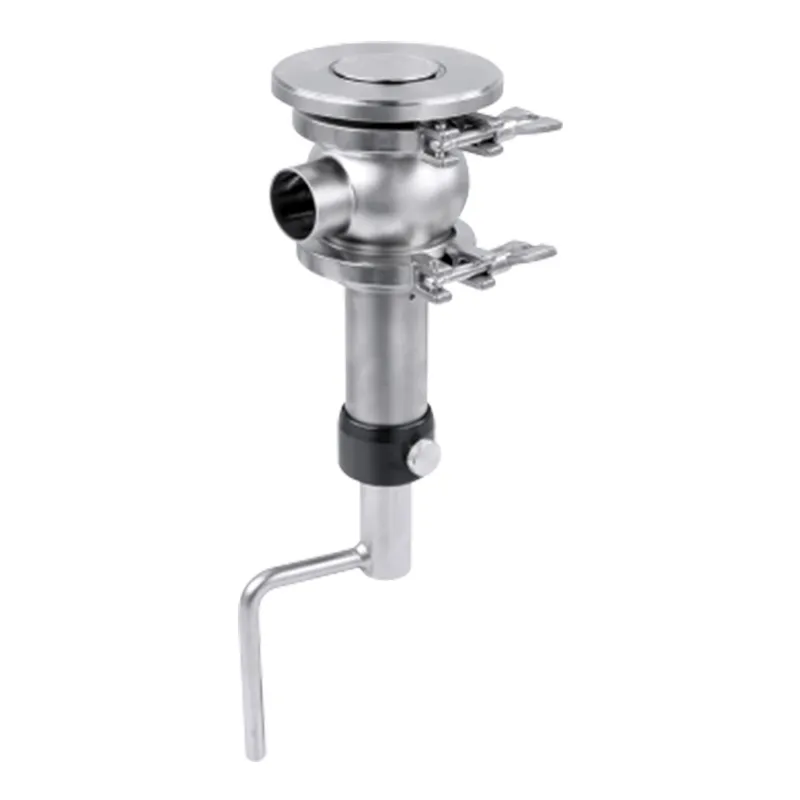

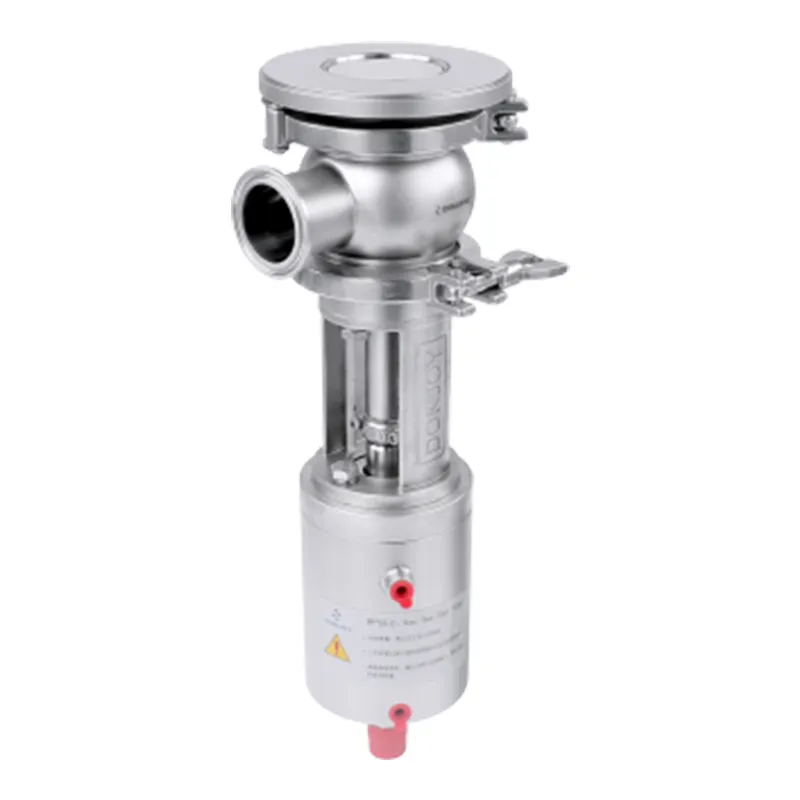

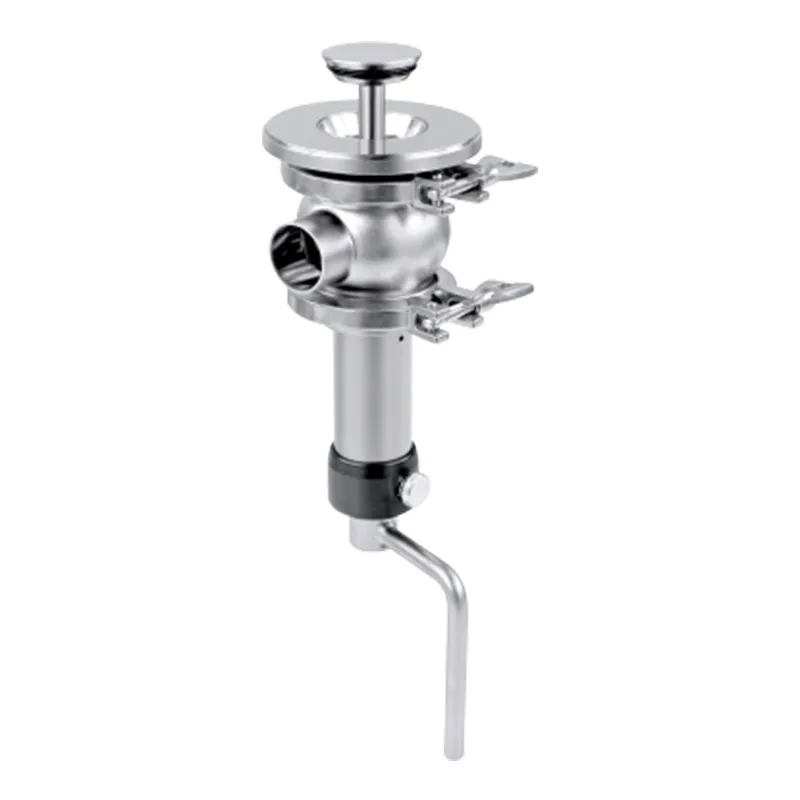

The tank bottom valve has two designs of valve core contraction and valve core extension, and has a very flexible valve body combination and various functional configurations, such as sterilization type, jacket insulation, damping buffer type, etc. Various automatic controls such as valve positioners, control units, feedback devices, and position sensors can also be installed.
| Specifications | 1/2"-6", DN10-DN150 |
| Material | 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5% |
| Pressure | Vacuum to 10bar (1.0 Mpa) |
| Temperature | -20℃ to +150℃, Depending on the seal material |
| Seal | EPDM FKM HNBR PTFE |
| Connection standard | DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853 |
| Connection method | Thread, clamp, welding, flange |
| Drive mode | manual, pneumatic, electric |
| Finish | Ra≤0.6μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm |
| Certification | FDA 177.2600; 3A-53-06; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC. |
