Small torque, long service life, full degreasing, sealing elastic compensation, small size, no internal retention, very flexible function combination, maintenance without professional tools, economical, simple and reliable.
Tank bottom ball valve is suitable for manual, pneumatic, electric and other driving devices, including positioner, control unit, feedback, position sensor, etc.
| Specifications | 1/2"-4", DN10-DN100 |
| Material | 304/1.4301, 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5% |
| Pressure | Vacuum to 10bar (1.0 MPa) |
| Temperature: | PTFE -20℃ to +130℃, Depending on the seal material |
| Sealing | TFM; PTFE; PTFE+Carbon; PEEK |
| Connection standard: | DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853 |
| Connection method | Thread, clamp, welding, flange |
| Drive mode | manual, turbo, pneumatic, electric |
| Surface finish | Ra≤0.8μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm |
| Certification | FDA 177.2600; 3A-68-00; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC. |

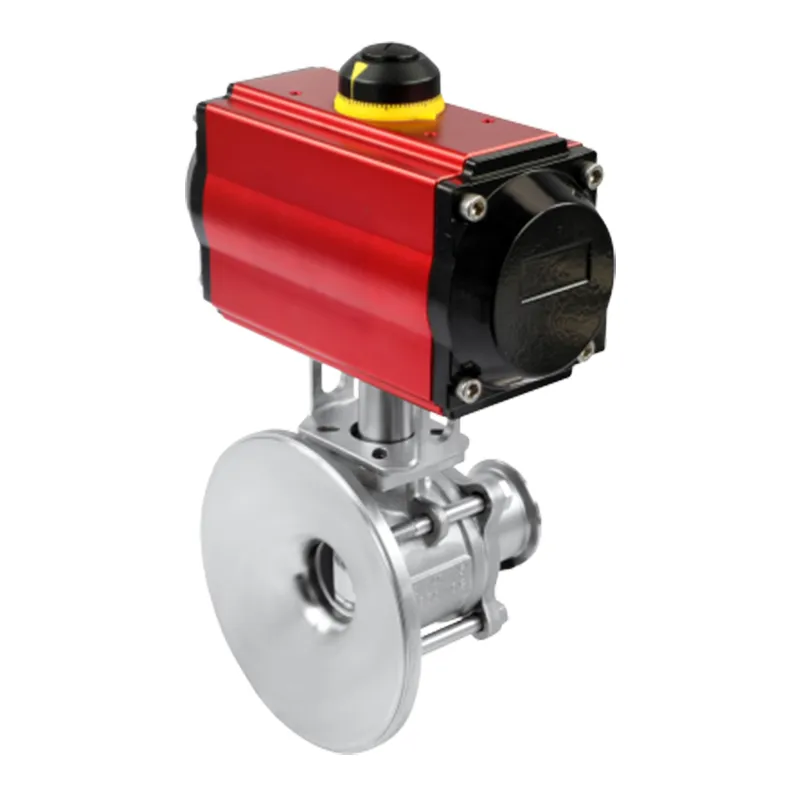

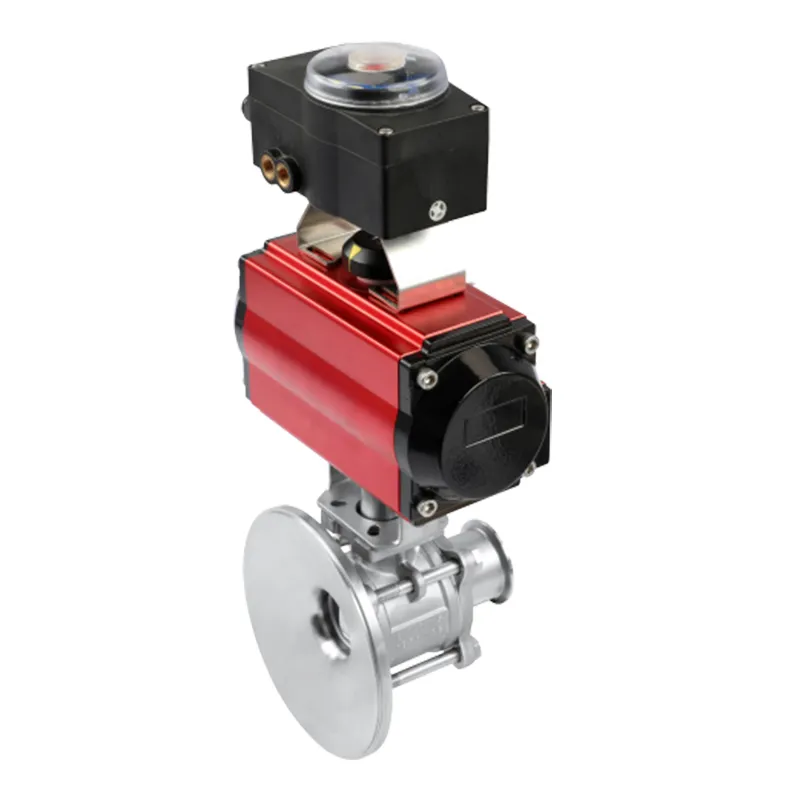

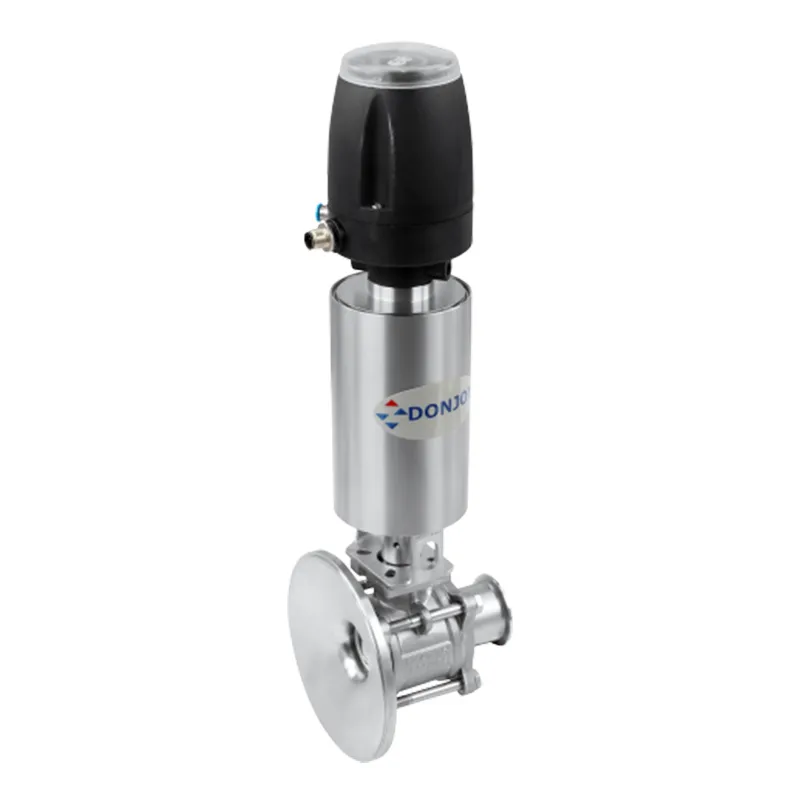

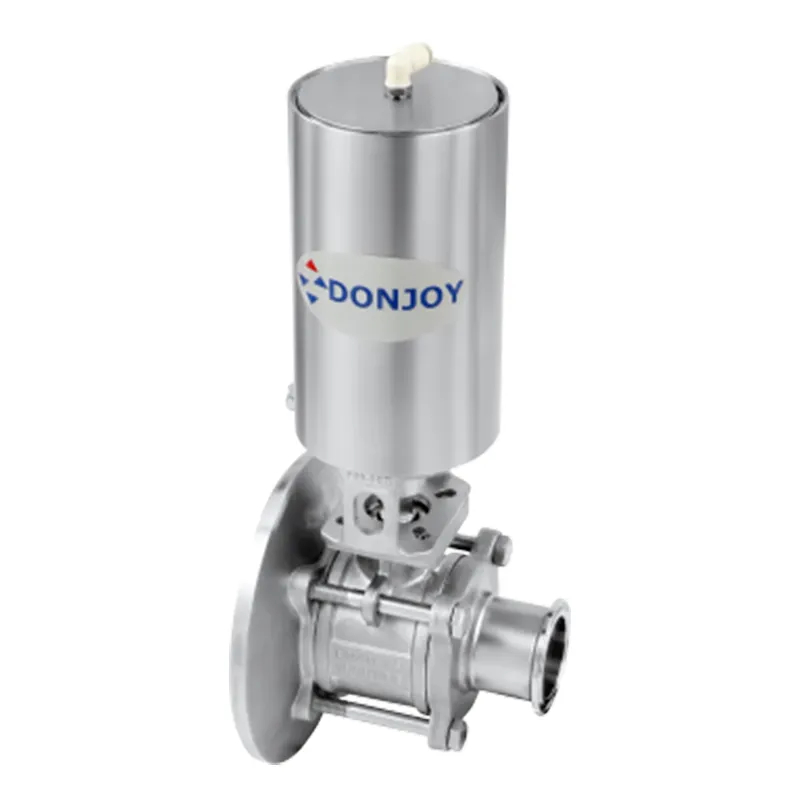

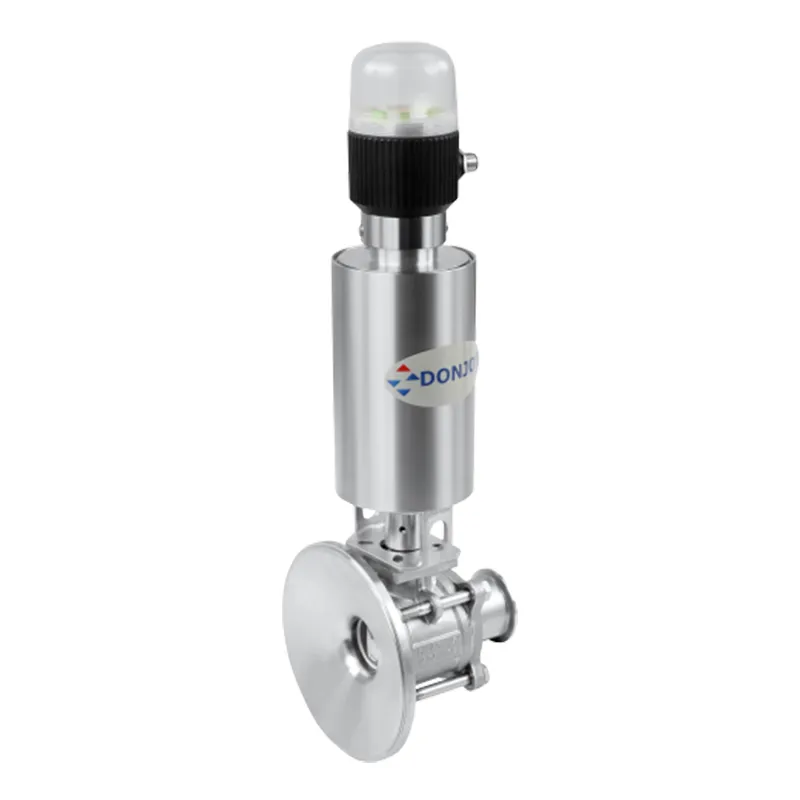

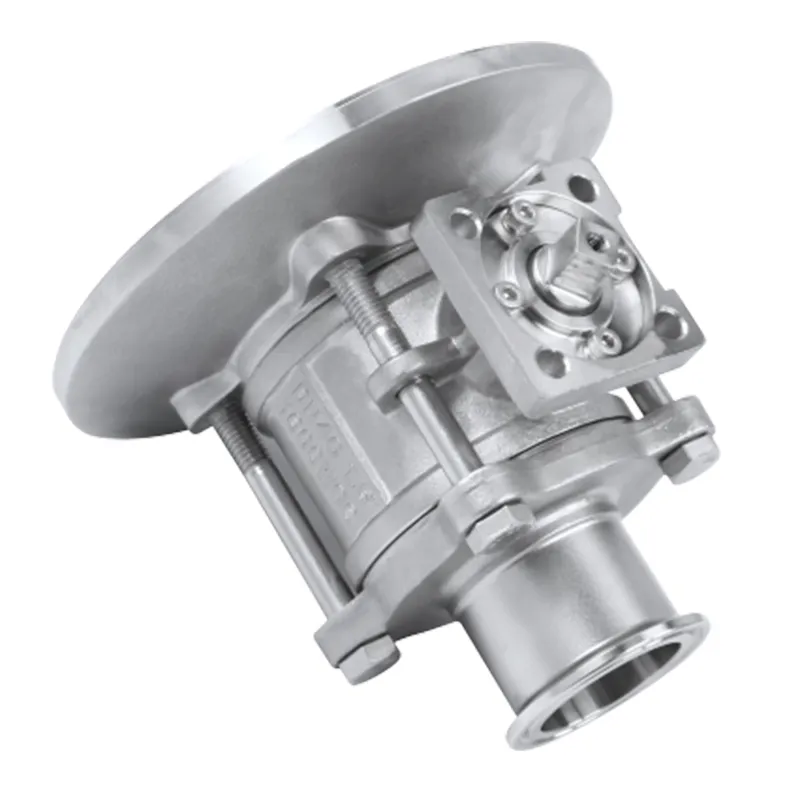

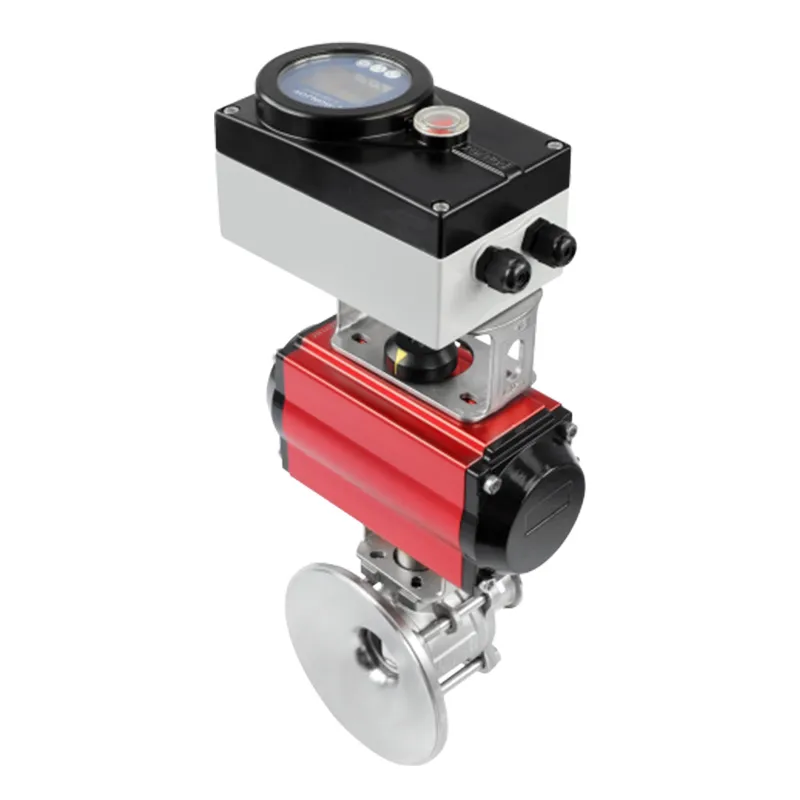

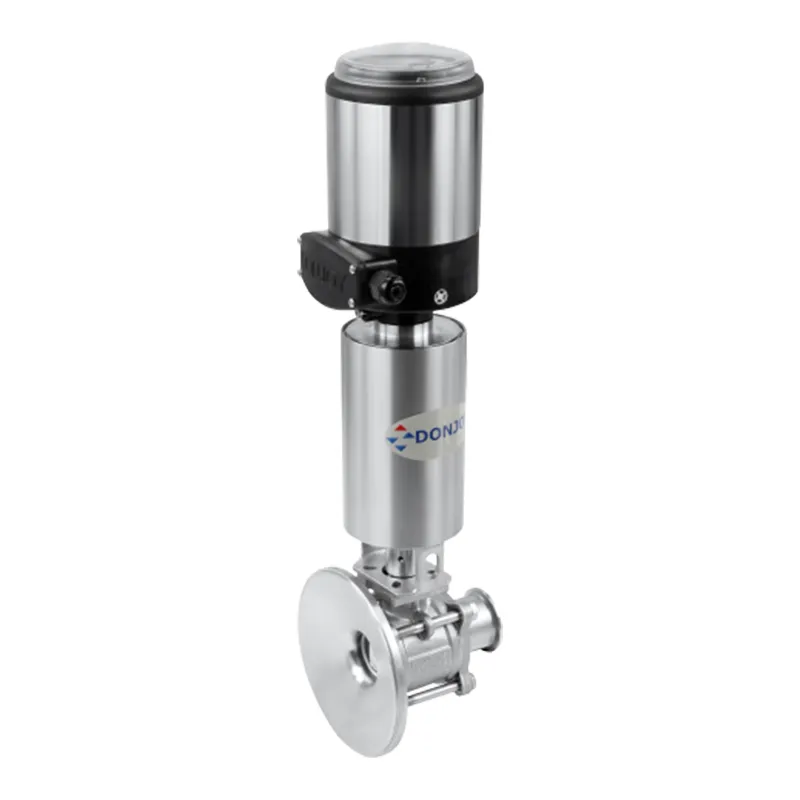

Donjoy's 3-Piece Tank Bottom Ball Valve ensures high cleanliness with zero internal retention, easy maintenance, and long service life. Perfect for sanitary applications like biopharmaceutical and food industries. Contact us for reliable solutions
