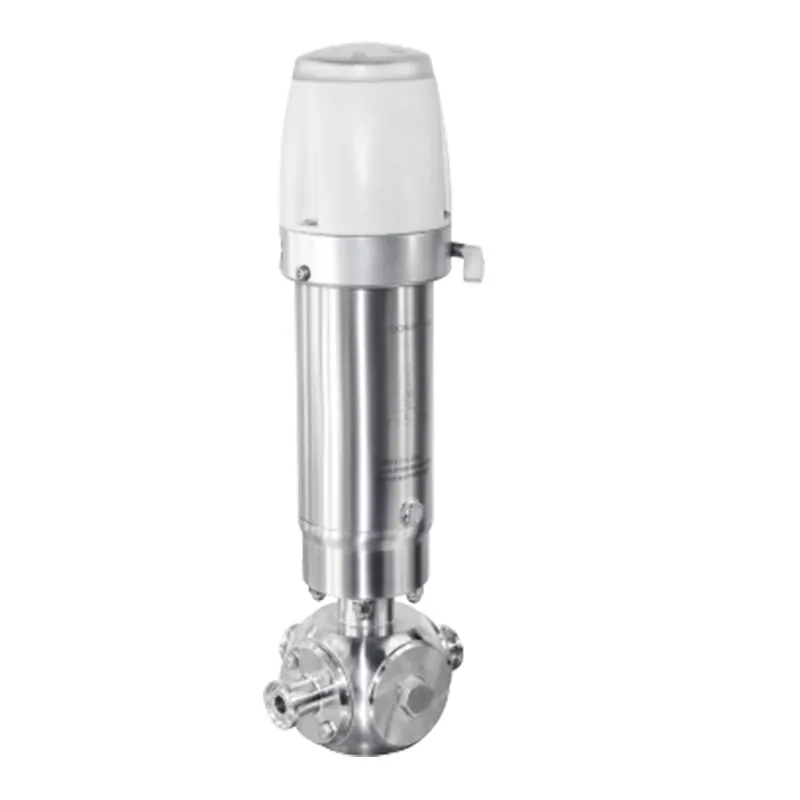

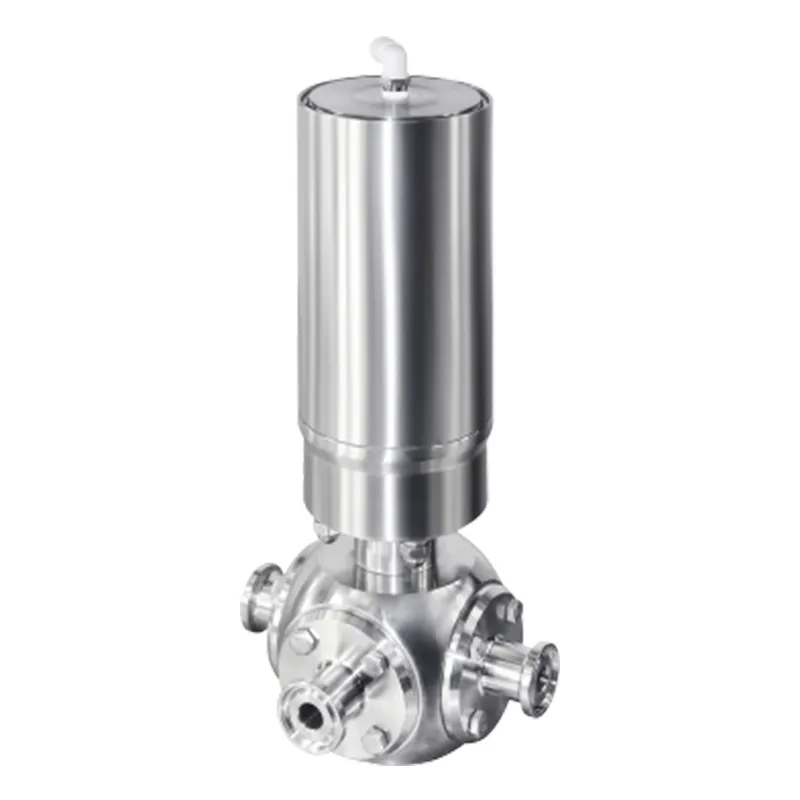

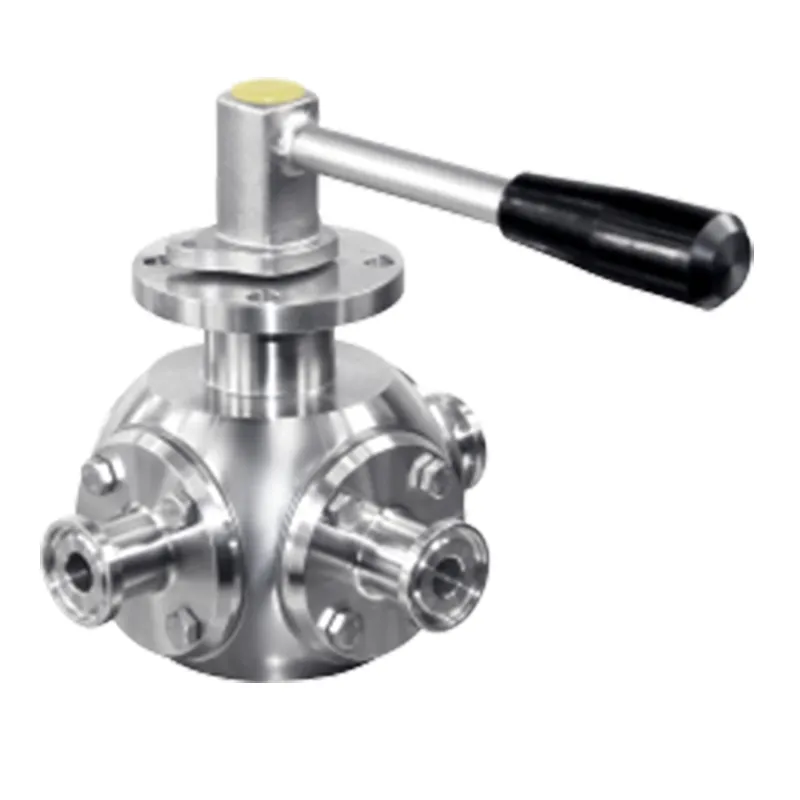

Mini 3-Way Ball Valve
Mini 3-Way Ball Valve
Mini 3-Way Ball Valve
Mini 3-Way Ball Valve

Mini 3-Way Ball Valve

Donjoy series ball valves are designed in strict accordance with the high cleanliness requirements of the United States 3-A-68-00, with small torque, long life, full degreasing, sealing elastic compensation, small size, no internal retention, appearance close to no dead ends, and very flexible functional combination , It is economical, simple and reliable series sanitary ball valve that can be maintained without professional tools. After more than 20 years and more than 3 million pieces of manufacturing and application experience, combined with the latest technology and material applications, it is innovatively designed based on rich on-site installation and product application experience. It can be applied to all kinds of food, pharmaceuticals, beverages, beer, liquor, water treatment, cosmetics, new energy, daily chemical washing, etc. at the same time.

Specifications of Mini 3-Way Ball Valve


Specifications1/2"-4", DN10-DN100
Material304/1.4301, 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%
PressureVacuum to 10bar (1.0 MPa)
Temperature:PTFE -20℃ to +130℃, Depending on the seal material
SealingTFM; PTFE; PTFE+Carbon; PEEK
Connection standard:DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853
Connection methodThread, clamp, welding, flange

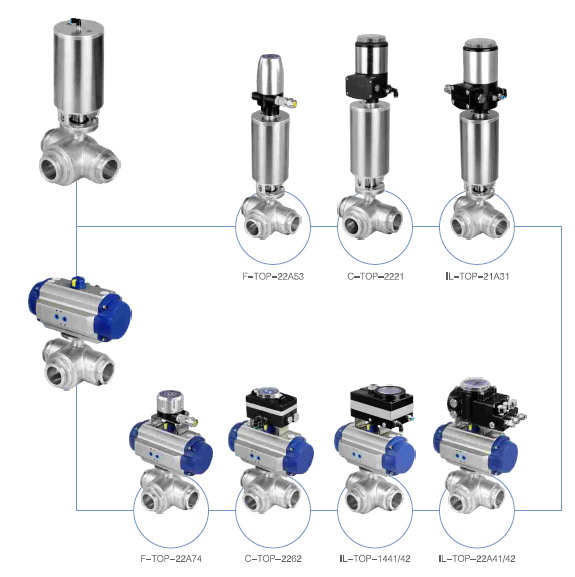

Drive modemanual, turbo, pneumatic, electric
Surface finishRa≤0.8μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm
CertificationFDA 177.2600; 3A-68-00; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC.


Donjoy's Mini 3-Way Ball Valve delivers compact design, low torque operation, and hygienic performance with 3A certifications. Ideal for high-purity applications in biopharmaceutical and food industries, ensuring efficiency and reliability. Upgrade your system now

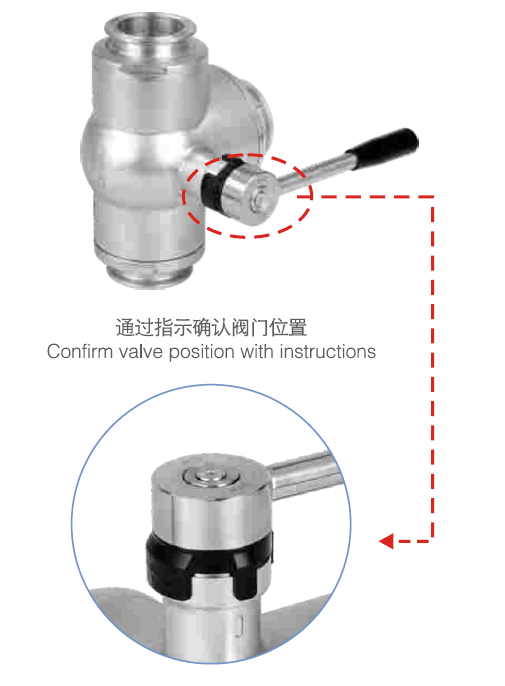

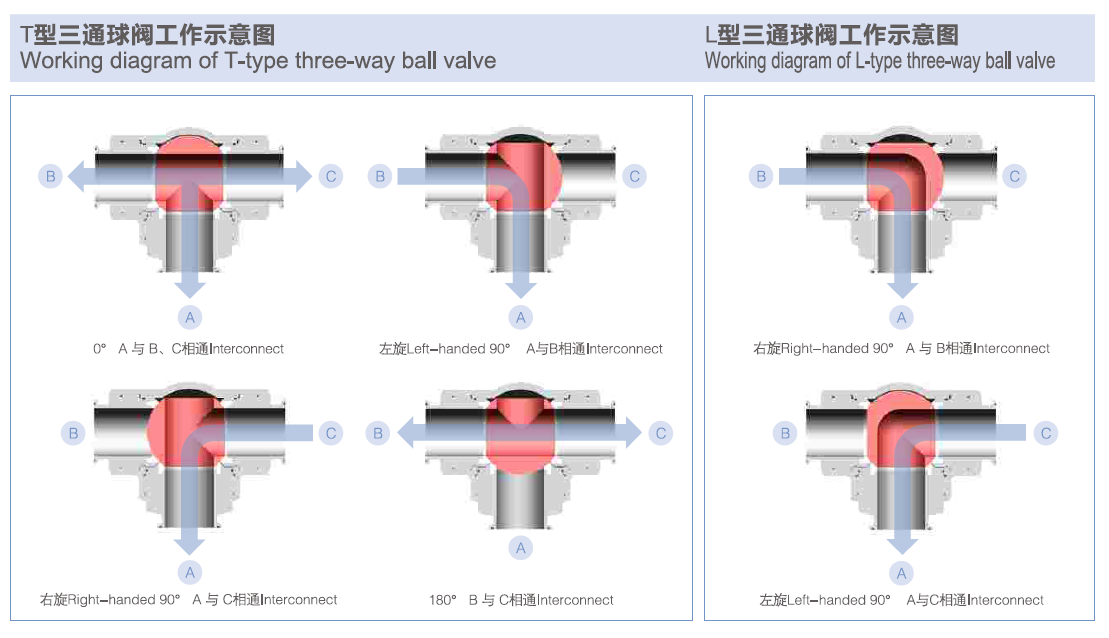

Position Indication of Mini 3-Way Ball Valve


Surface Finish of Mini 3-Way Ball Valve

Surface Finish of Mini 3-Way Ball Valve

Surface Finish of Mini 3-Way Ball Valve

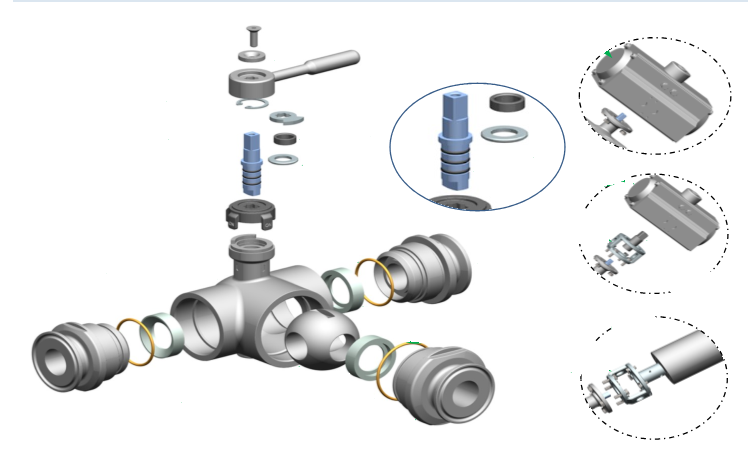

Surface Finish of Mini 3-Way Ball Valve

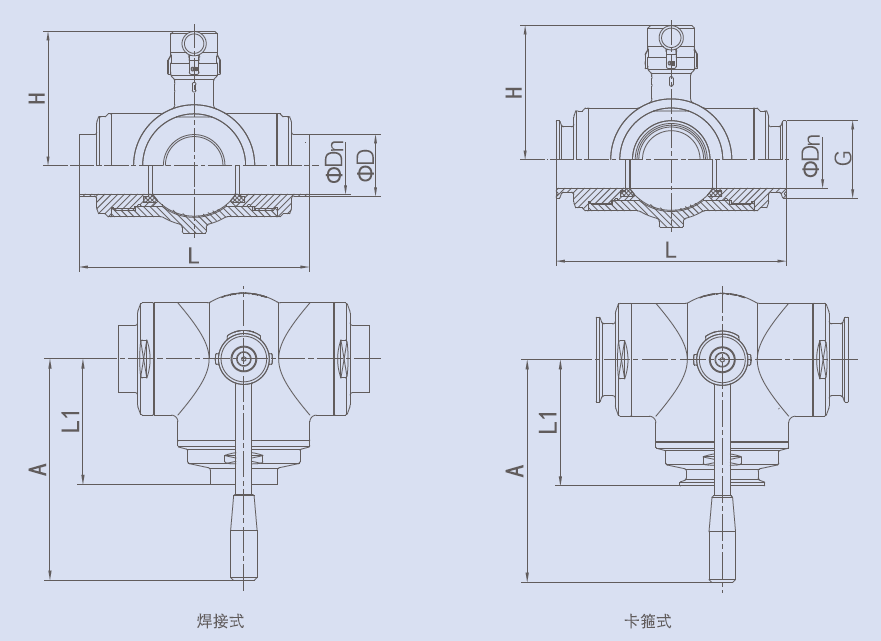

Drawing of Mini 3-Way Ball Valve


Drawing of Mini 3-Way Ball Valve

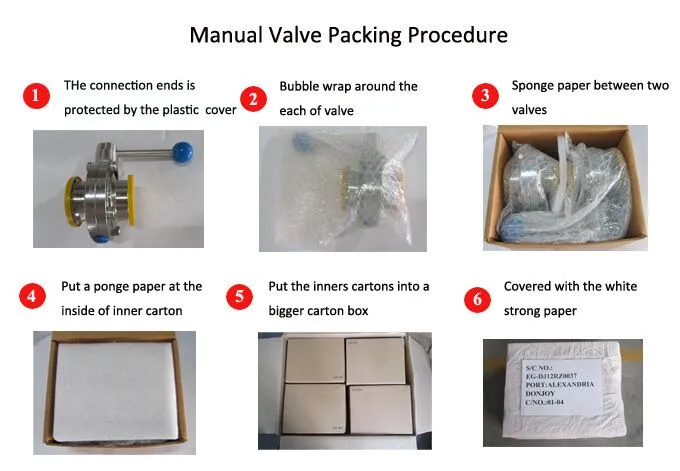

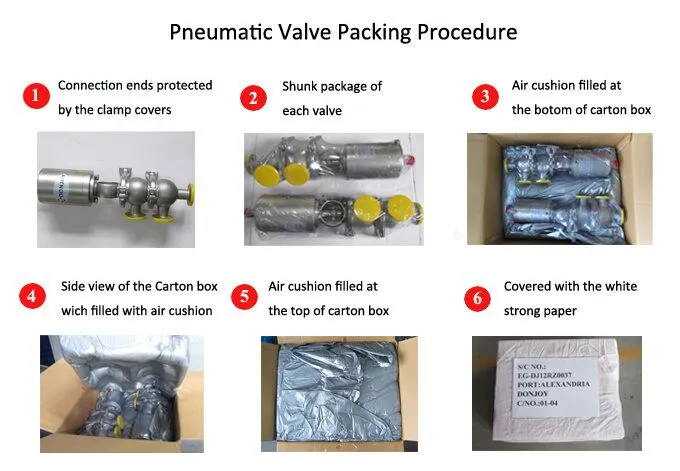

Packing of Mini 3-Way Ball Valve


Packing of Mini 3-Way Ball Valve

Packing of Mini 3-Way Ball Valve
