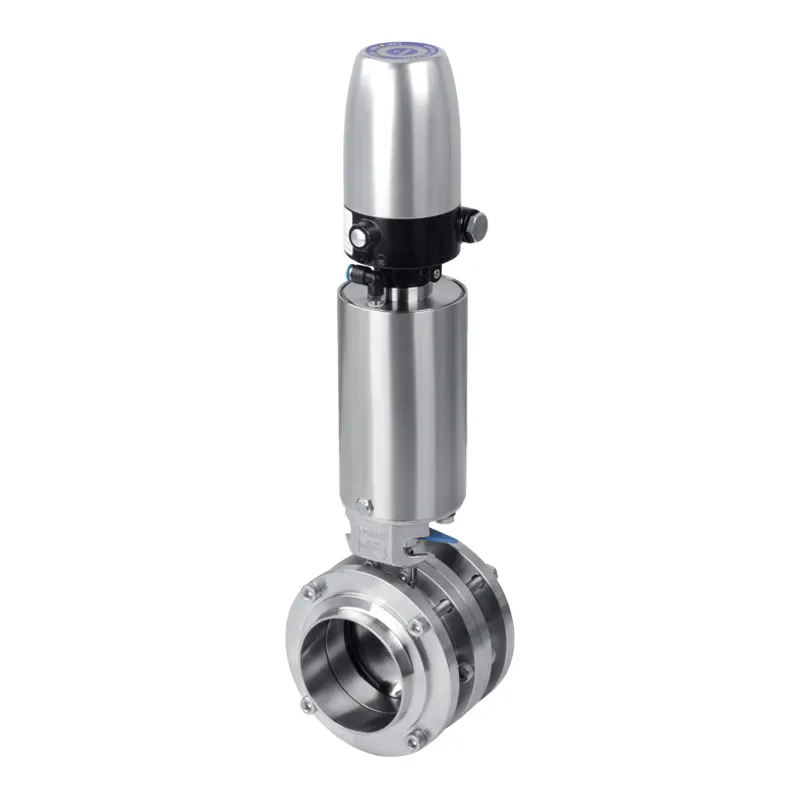

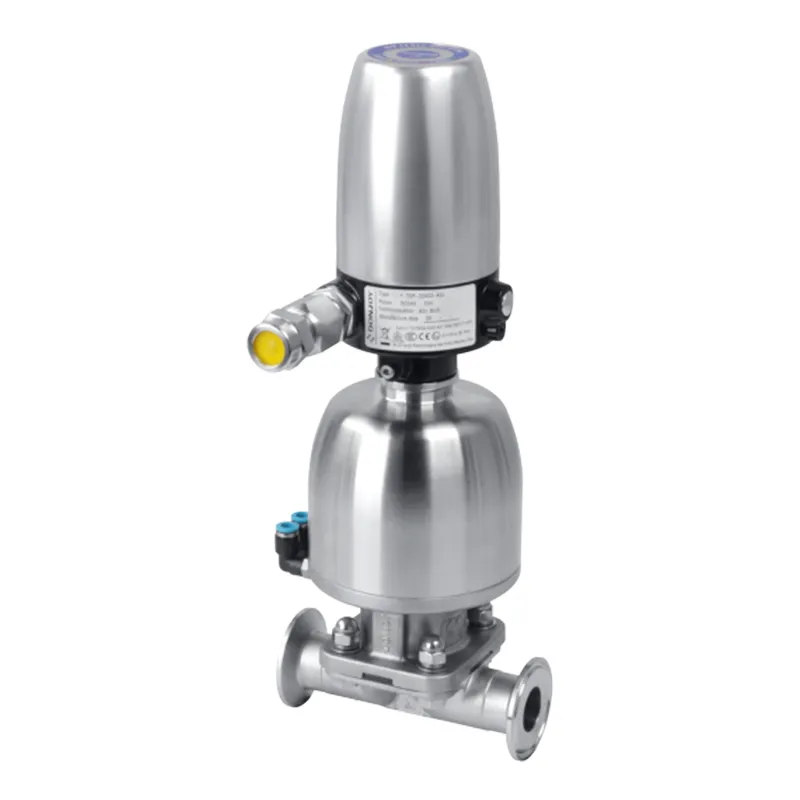

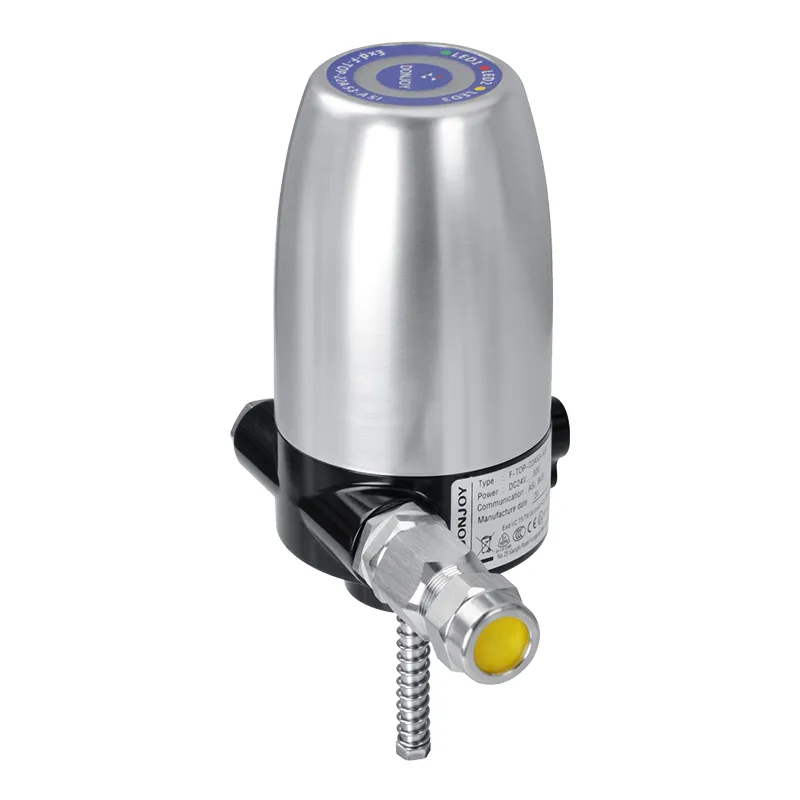

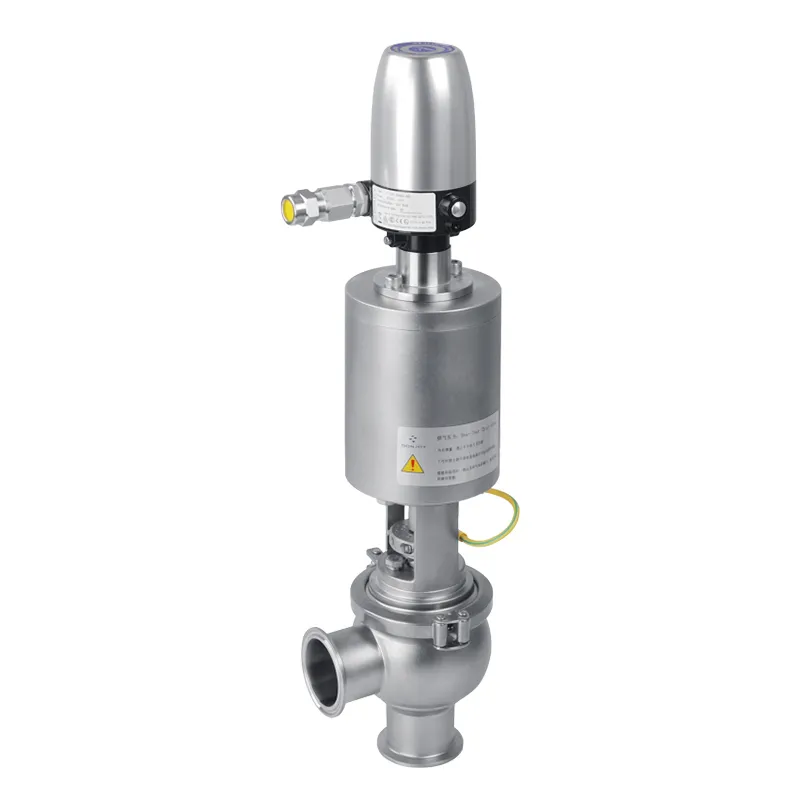

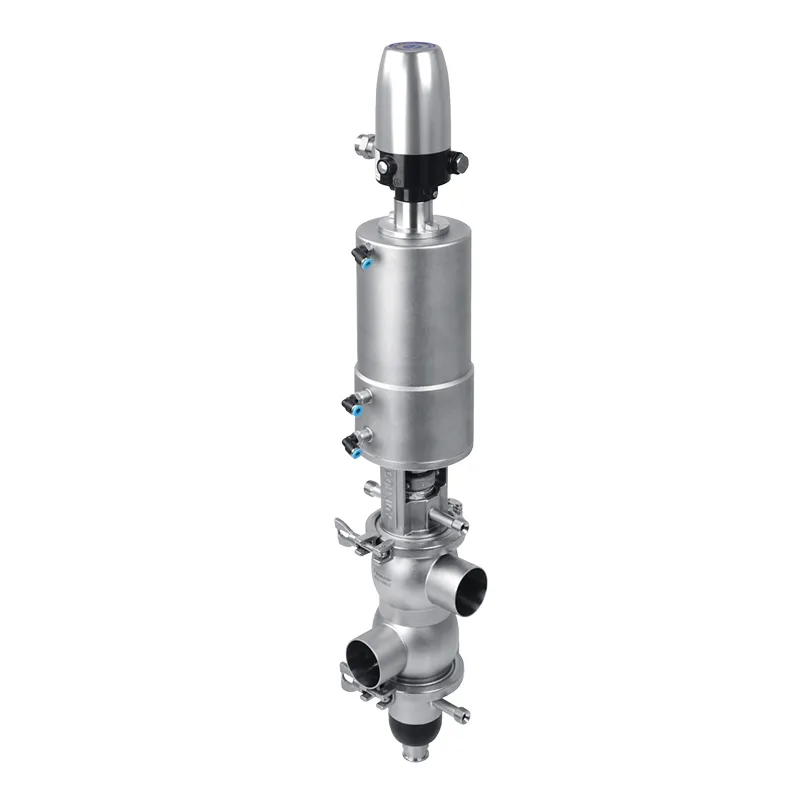

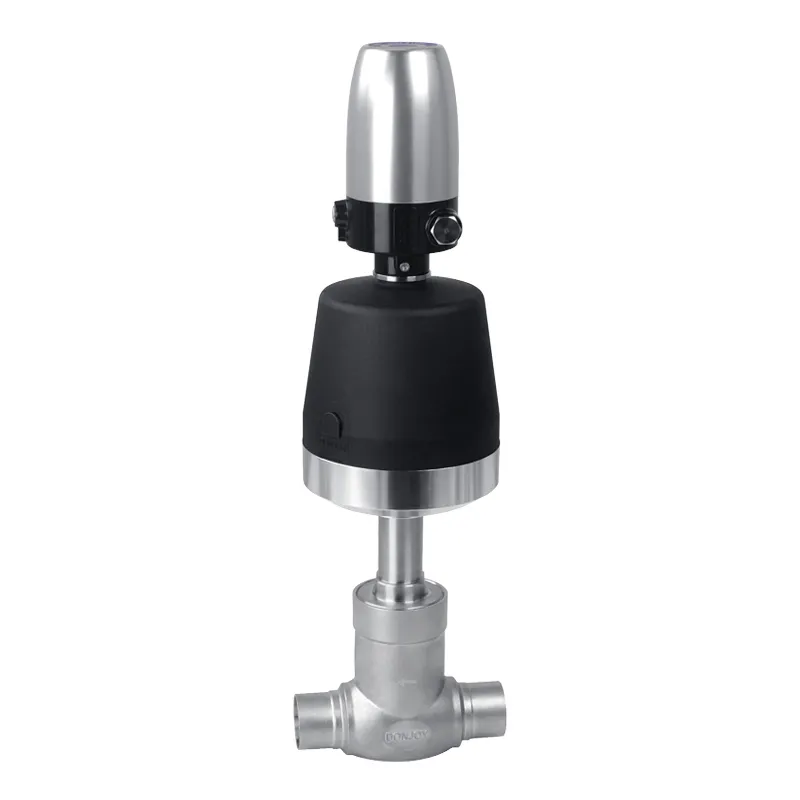

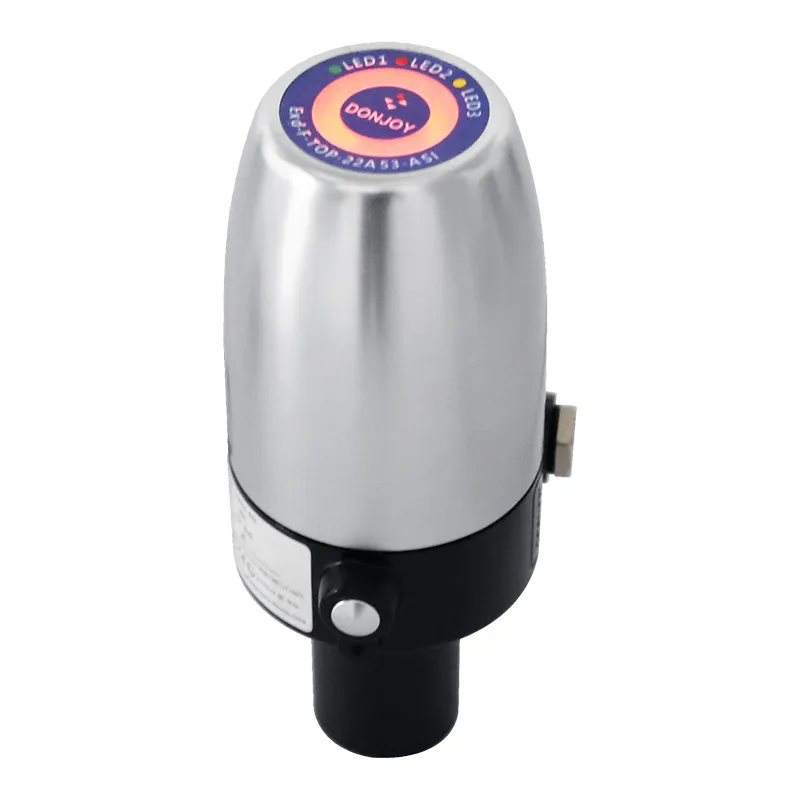

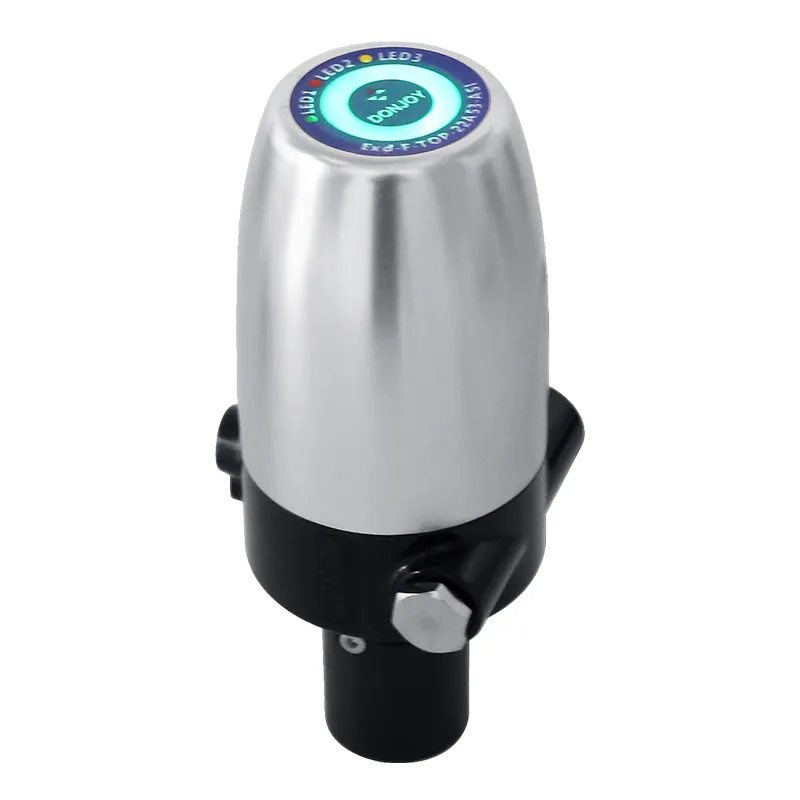

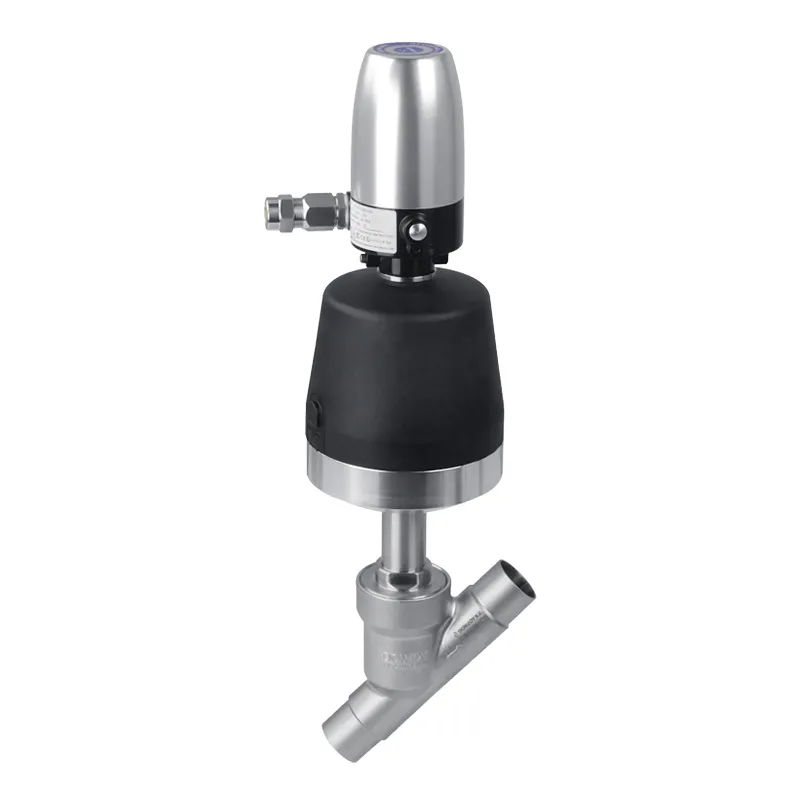

F-TOP-22A53 is a flation-proof valve position feedback device, it has different colors of LED lights to display the current valve position state, at the same time feed back the current valve position signal to a variety of automatic control system including PLC/DCS.
1. High precision, leakage proof valve.
2. High efficiency, high cleanliness, precision can be set.

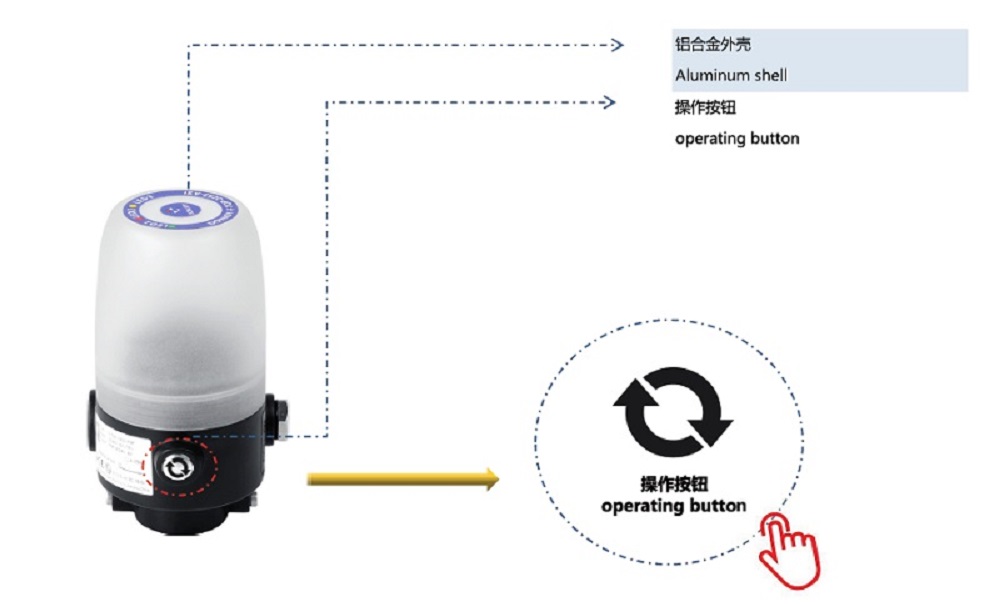

3. Push-button operation, no disassembly, Ex d explosion-proof & intrinsic safety explosion-proof double certification.
| Single key automatic setting | |
| Valve anti-leakage function | |
| Valve fault feedback function | |
| Different valve positions display different colors of LED lights | |
| Signal feedback | PNP NPN passive contact 4-20mA |
| Bus communication | IO-Link; AS-I V3.0 |
| Power supply | DC24V..... DC8V |
| Stroke | 60mm; 30mm |
| The precision of valve position can be set on site | 0.2mm, 0.5mm, 1mm, 2mm, 3mm |
| High and low color can be set on site | |
| rotection level | Ip67 |
Flameproof linear position sensor with automatic calibration, ensures leak detection and continuous 4-20mA/PNP feedback.
