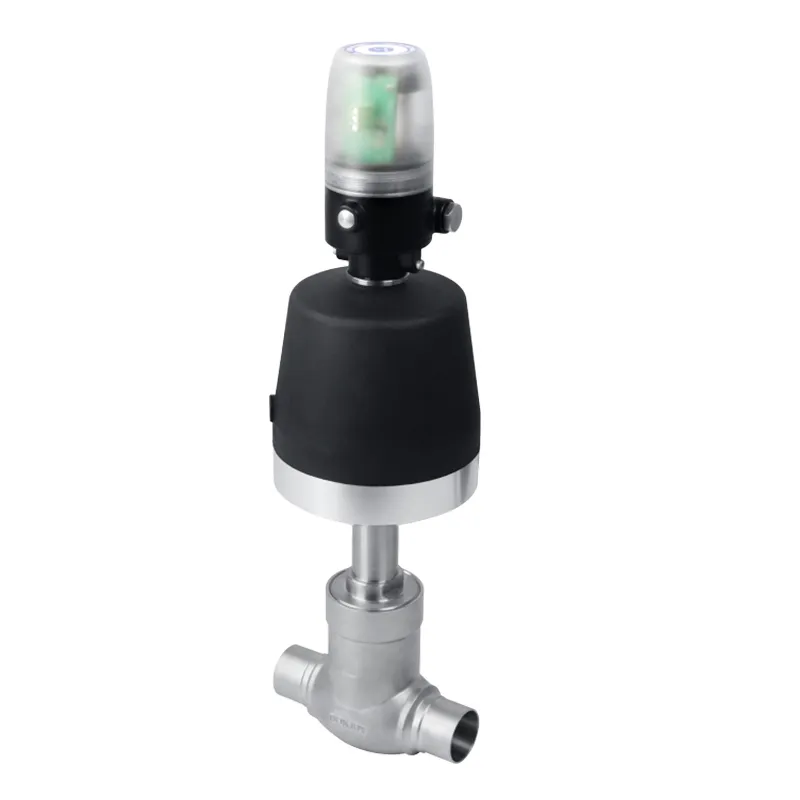

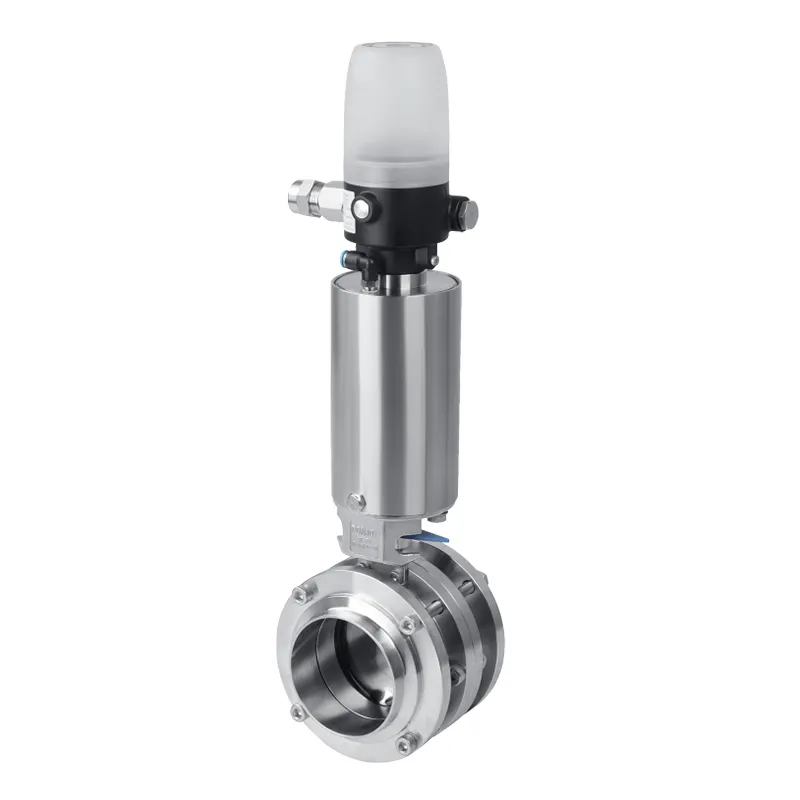

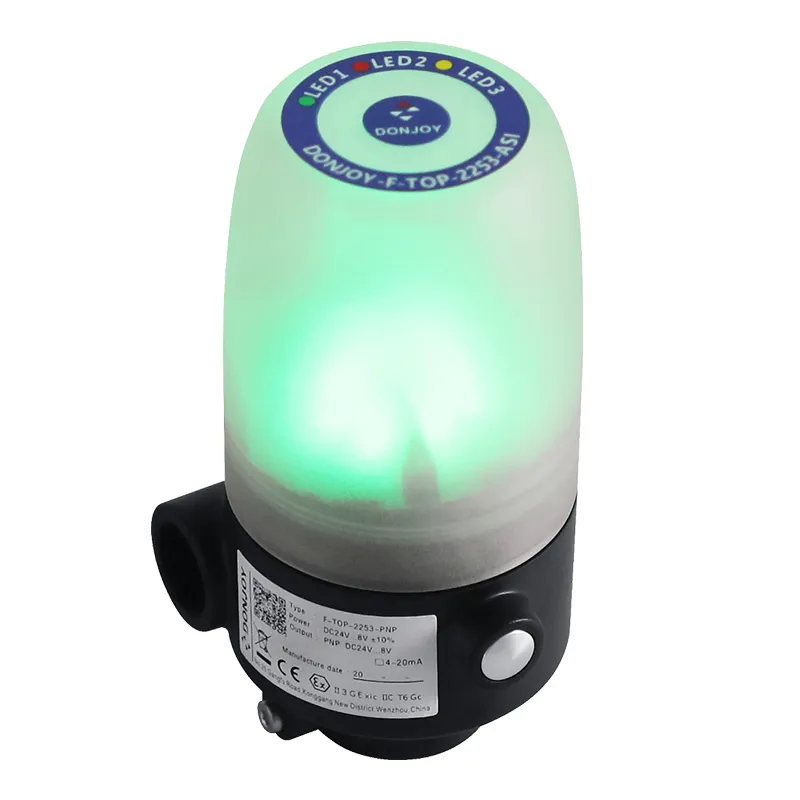

F-TOP-2253 is an intrinsically safe and explosion-proof design valve position feedback device, it has different colors of LED lights to display the current valve position state, and feed back the current valve position signal to various automatic control systems including PLC/DCS.
1. High precision, leakage proof valve.
2. High efficiency, high cleanliness, precision can be set.

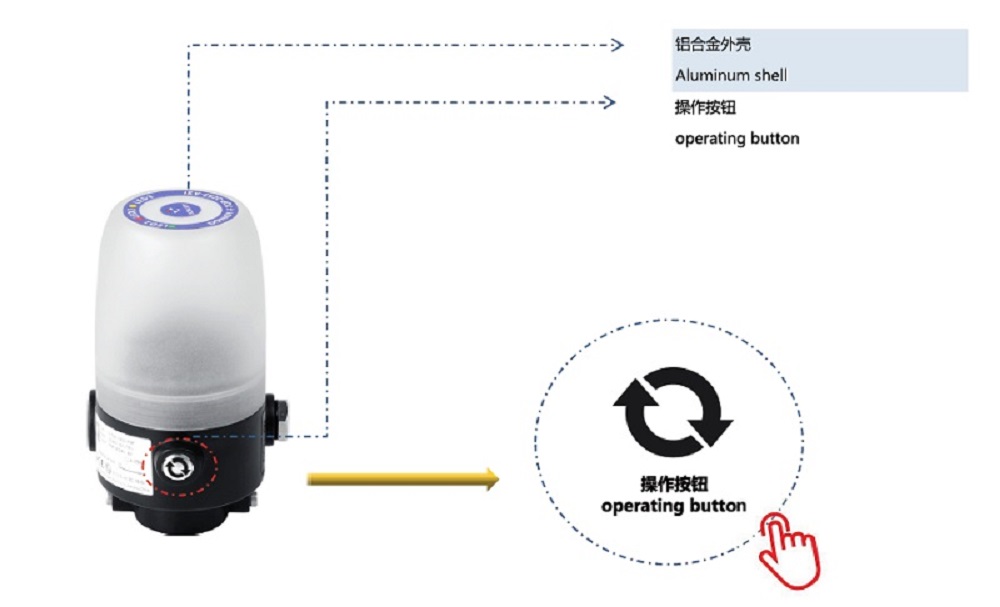

3. Push-button operation, no disassembly, intrinsic safety explosion-proof certificate.
| Single key automatic setting | |
| Valve anti-leakage function | |
| Valve fault feedback function | |

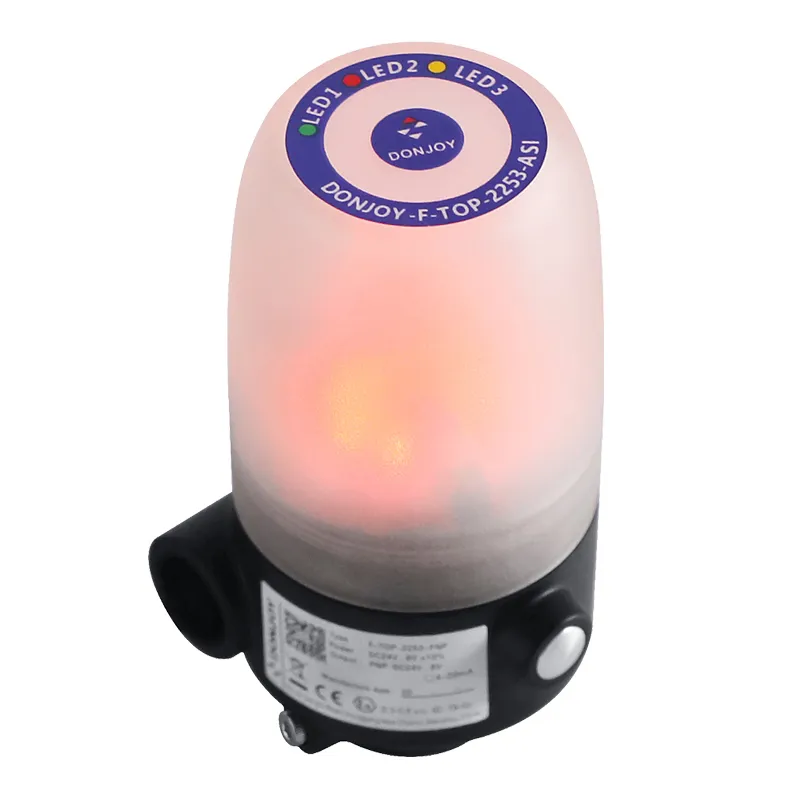

| Different valve positions display different colors of LED lights | |
| Signal feedback | PNP NPN passive contact 4-20mA |
| Bus communication | IO-Link; AS-I V3.0 |
| Power supply | DC24V..... DC8V |
| Stroke | 60mm; 30mm |
| The precision of valve position can be set on site | 0.2mm, 0.5mm, 1mm, 2mm, 3mm |
| High and low color can be set on site | |
| rotection level | Ip68 |
Intrinsically safe feedback device with multi-color LED indicators, offers IP68 protection and flexible signal outputs for real-time monitoring.
