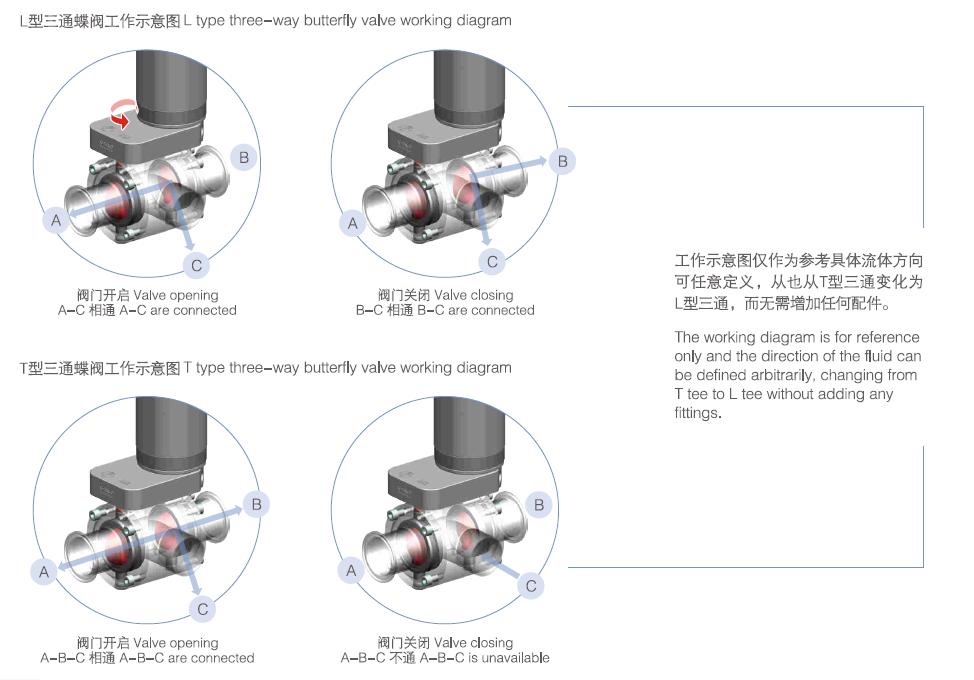

One drive device can realize L-type and T-type.
Three-way applications, opening and closing synchronization, low torque, long life, no retention, no dead angles, very flexible function combination, and it is efficient, economical and simple.
One drive device can realize L-type and T-type.
Three-way applications, opening and closing synchronization, low torque, long life, no retention, no dead angles, very flexible function combination, and it is efficient, economical and simple.
| Size | 1"-4", DN25-DN100 |
| Material | 304/1.4301, 316L/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5% |
| Pressure | Vacuum to 10bar (1.0 MPa) |
| Temperature | EPDM -20℃ to +130℃, Depending on the seal material |
| Seal | EPDM SILICON FKM FFKM HNBR FVMQ NBR |
| Connection standard | DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853 |
| Connection method: | thread, clamp, welding, flange |
| Drive mode | manual, pneumatic, electric |
| Finish | Ra≤0.8μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm |
| Certification | FDA 177.2600; 3A-18-03; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC |
Donjoy's Synchronous 3-Way Butterfly Valve delivers efficient L/T-type flow control with minimal torque, zero dead legs, and long service life. Ideal for sanitary applications like biopharma and food processing, it ensures hassle-free, hygienic operations. Upgrade to reliability—explore our solutions now
