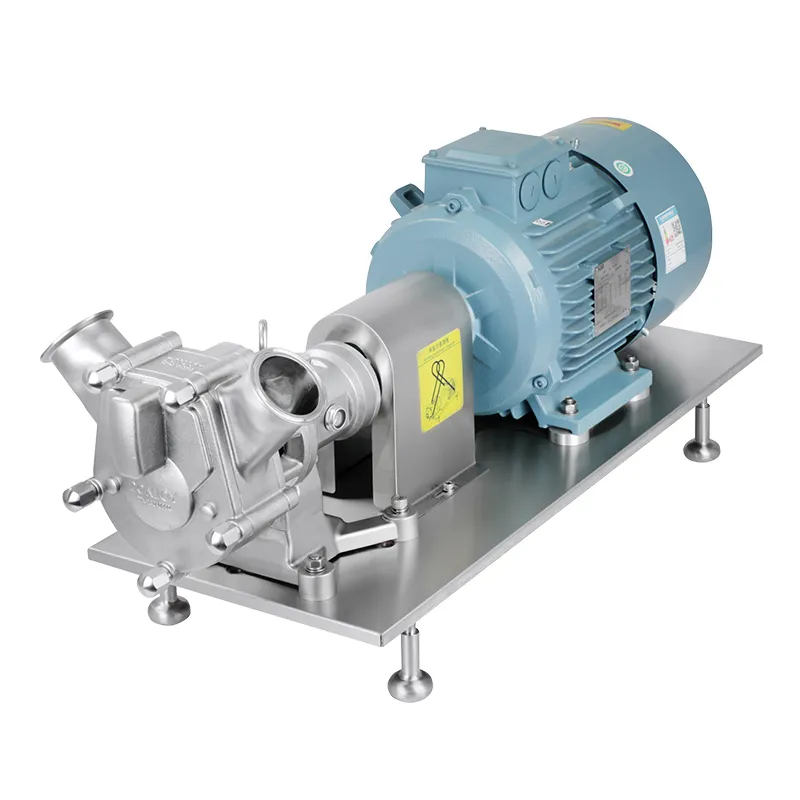

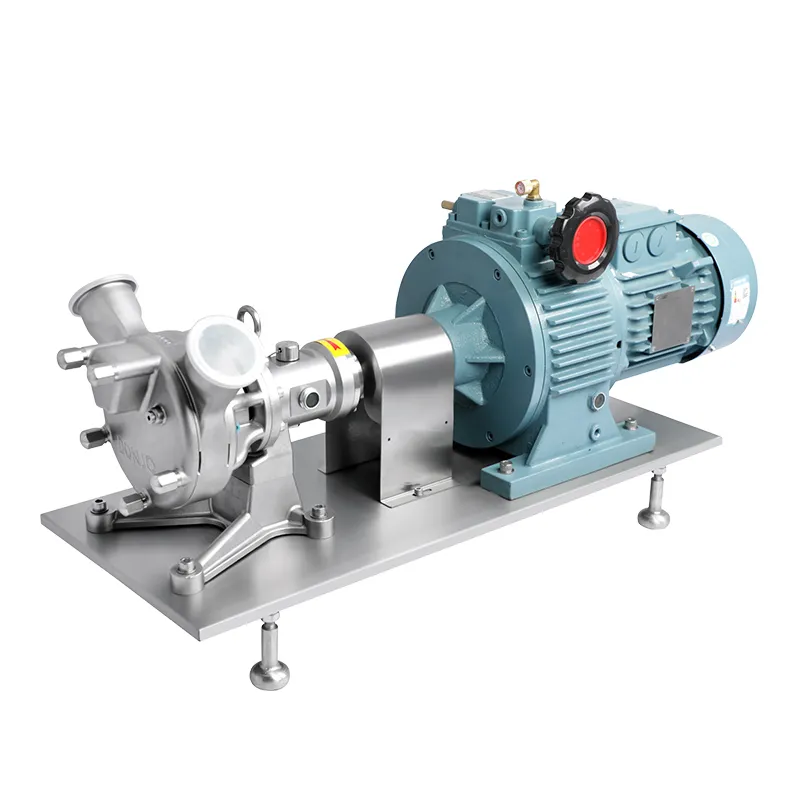

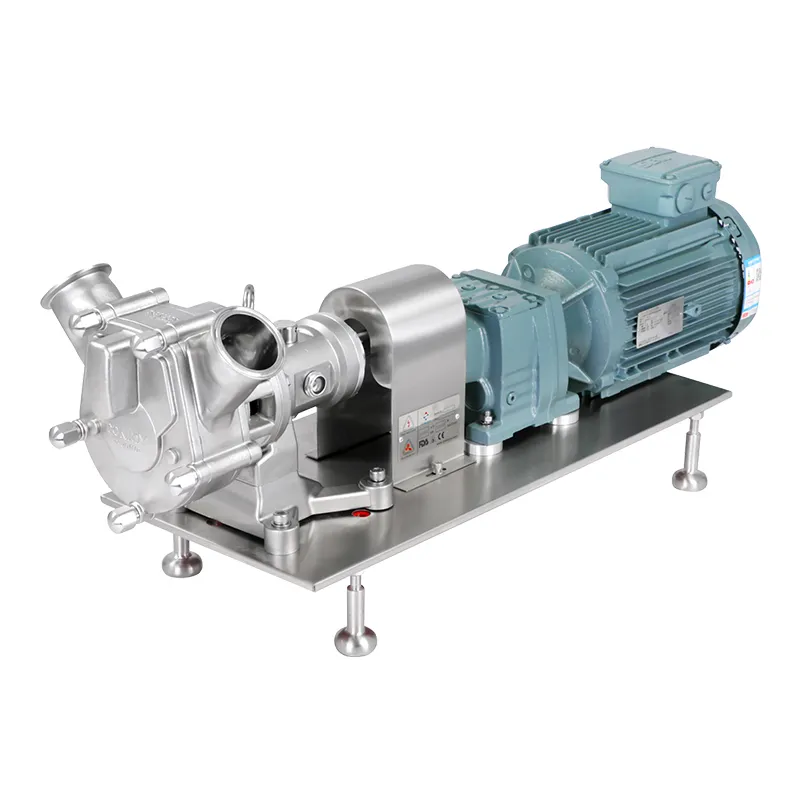

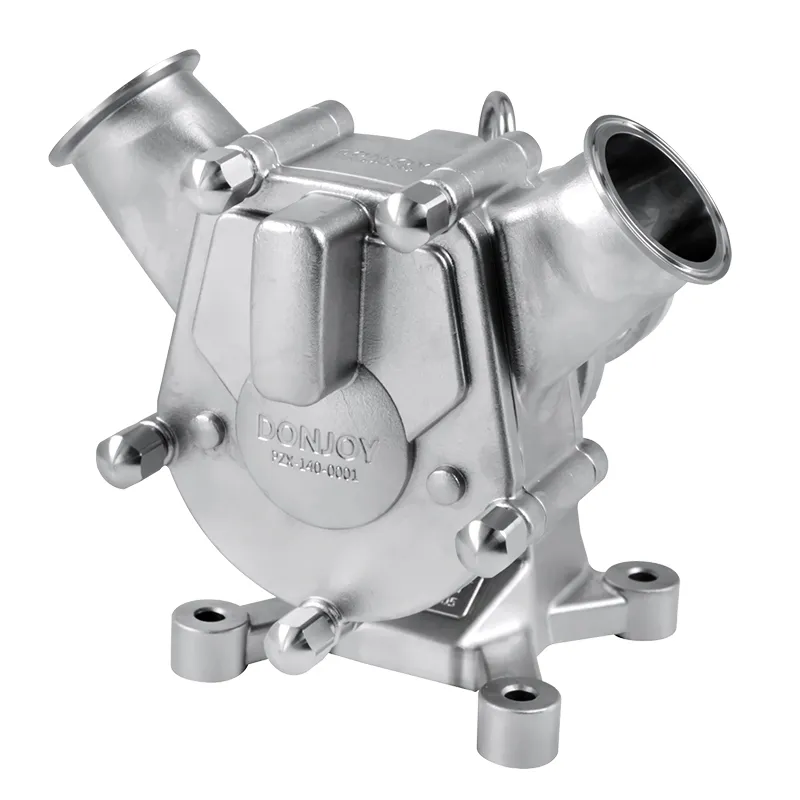

Sanitary Sine Pump​​

Sine pump is a new type of positive displacement pump, which has the characteristics of more compact structure, higher conveying efficiency, and wider viscosity range of applicable conveying medium. Can be widely used in food, beverage, dairy, chemical, pharmaceutical and other industries.

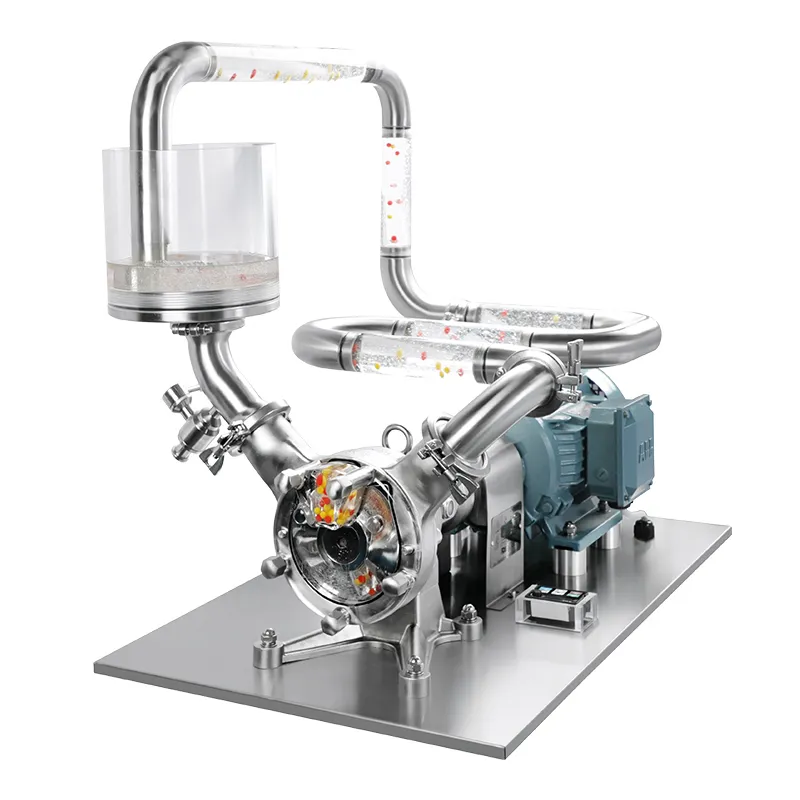

Bidirectional reversible operation, worry-free granule transferring, no damage to material transferring, worry-free high and low viscosity, super self-priming ability, no pulse in transferring, clean, efficient, durable, safe, and low-cost solutions.


Specifications of Sine Pump


Max flow93m3/h
Max pressure15 bar
Max Temperature130℃, Suitable for CIP or SIP cleaning and sterilization
Material1.4404/SS316L 2205/ C276; Dual-phase steel 2205, Hastelloy alloy C276
Certification3-A-02-12, FDA177.2600, 177.1550, MD/06/42/EC

A compact positive displacement pump with ultra-low shear, high suction capability (-0.85 bar), and bidirectional operation. Excels in handling viscosities from 1 cp to 8 million cp for pharmaceuticals and food.


Features of Sine Pump​​


  • Ultra-low shear conveying to effectively ensure media integrity

  • High suction capacity, inlet negative pressure can reach -0.85bar

  • Low-pulse conveying can effectively prevent pipeline vibration, make the medium convey smoothly and quickly, and also increase the measurement accuracy

  • The conveying process is gentle, and it is not easy to generate air bubbles

  • Bidirectional operation

  • Simple and fast maintenance

  • All medium contacting parts comply with FDA and EC1935 standards

  • Wide range of medium viscosity, 1cp to 8,000,000cps

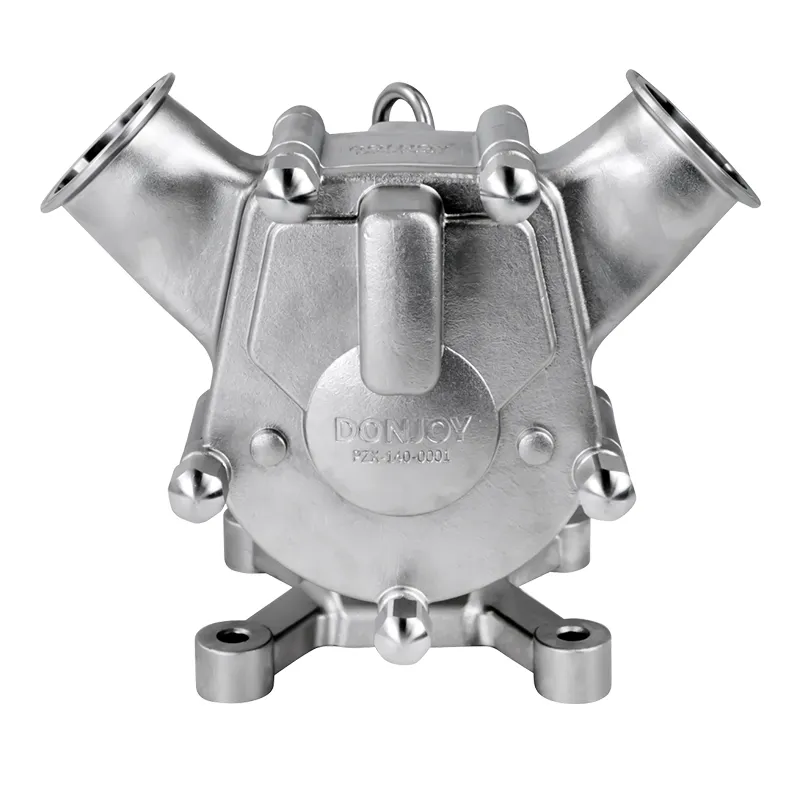

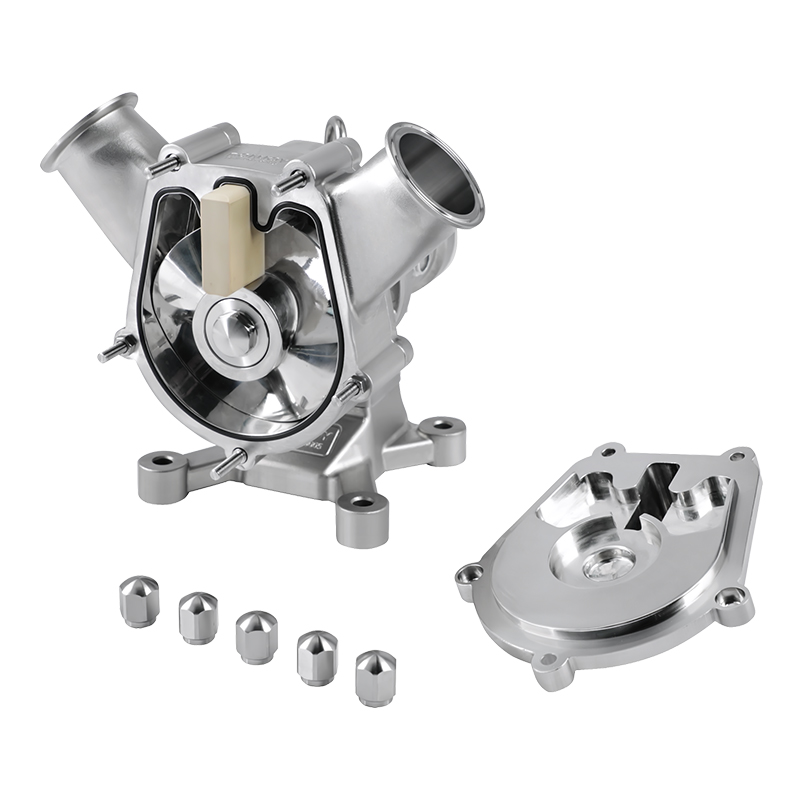

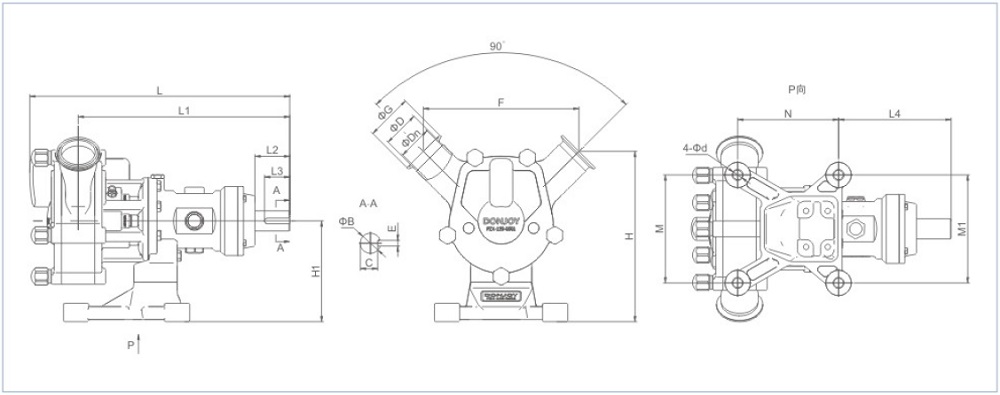

Details of Sine Pump​​


Details of Sine Pump

Details of Sine Pump

Details of Sine Pump

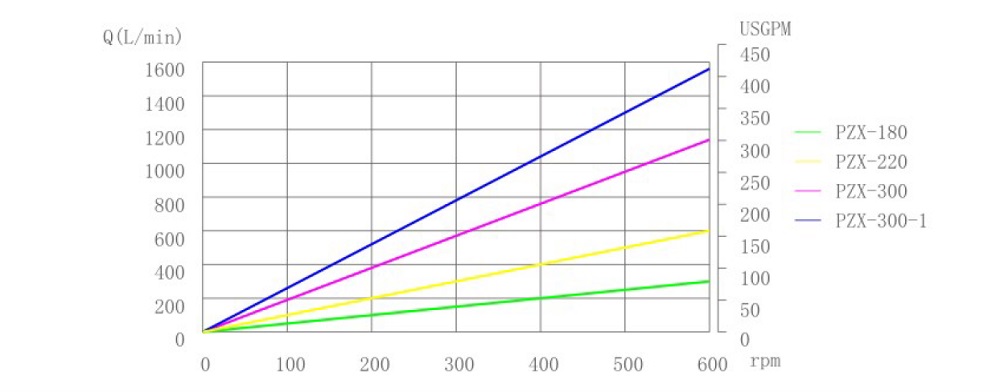

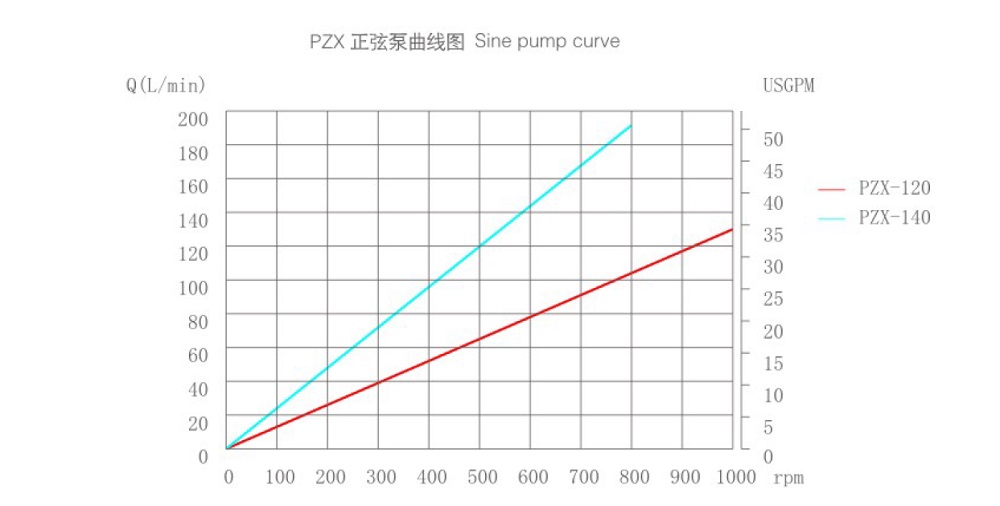

Performance Curve of Sine Pump​​


Performance Curve of Sine Pump

Performance Curve of Sine Pump

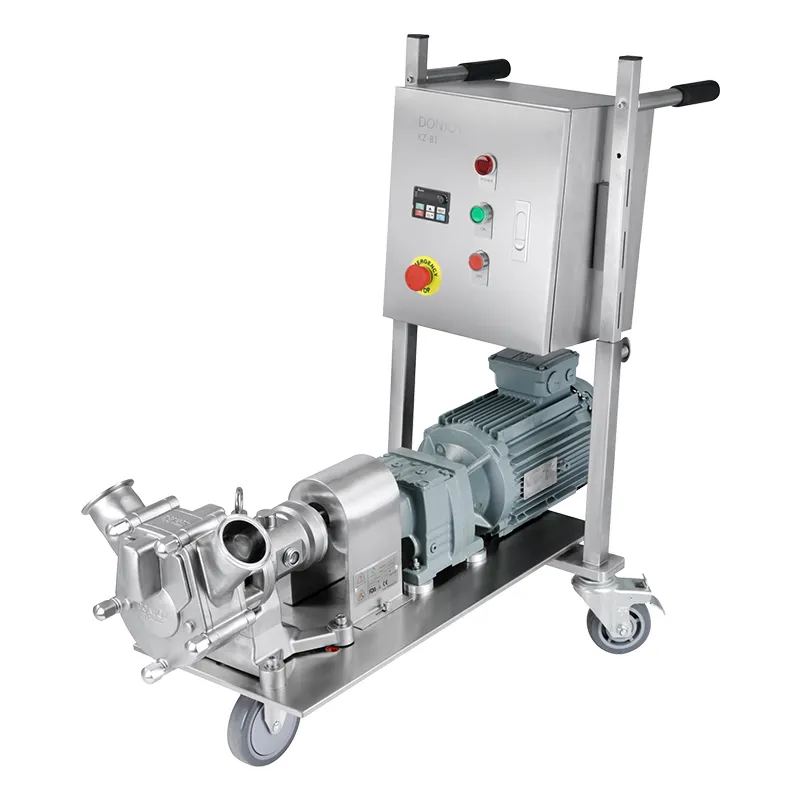

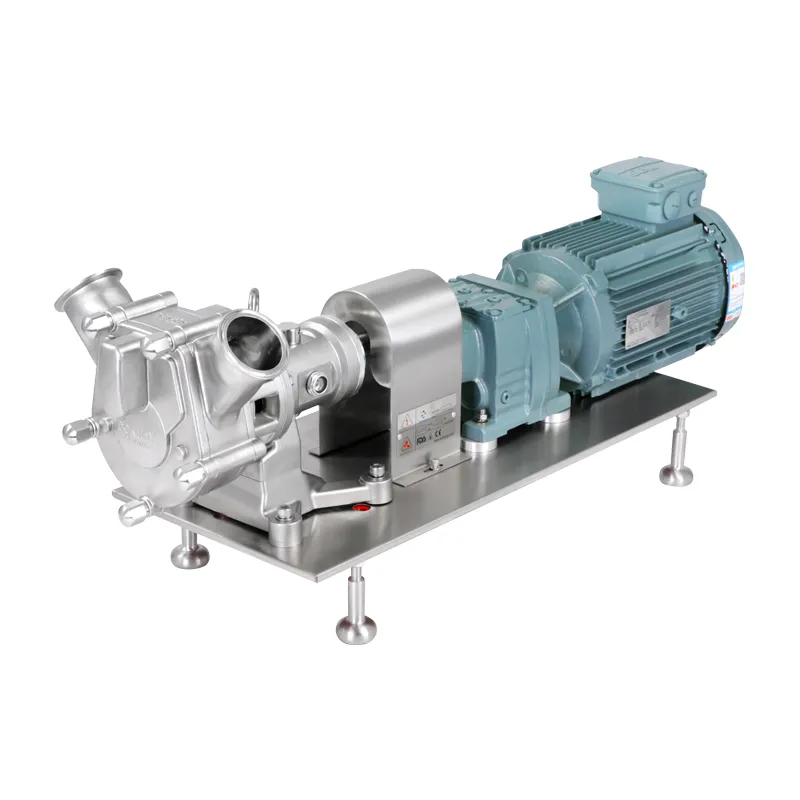

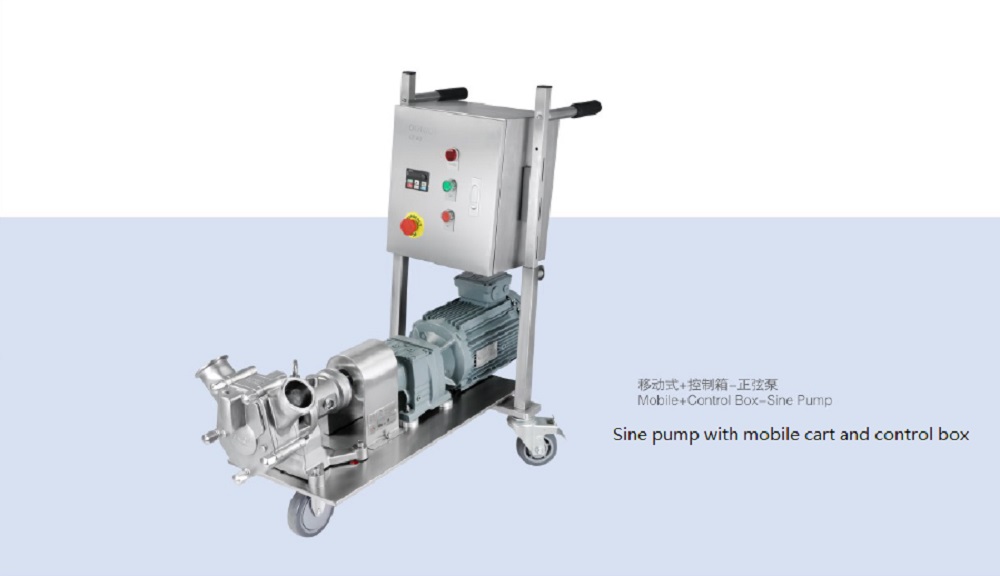

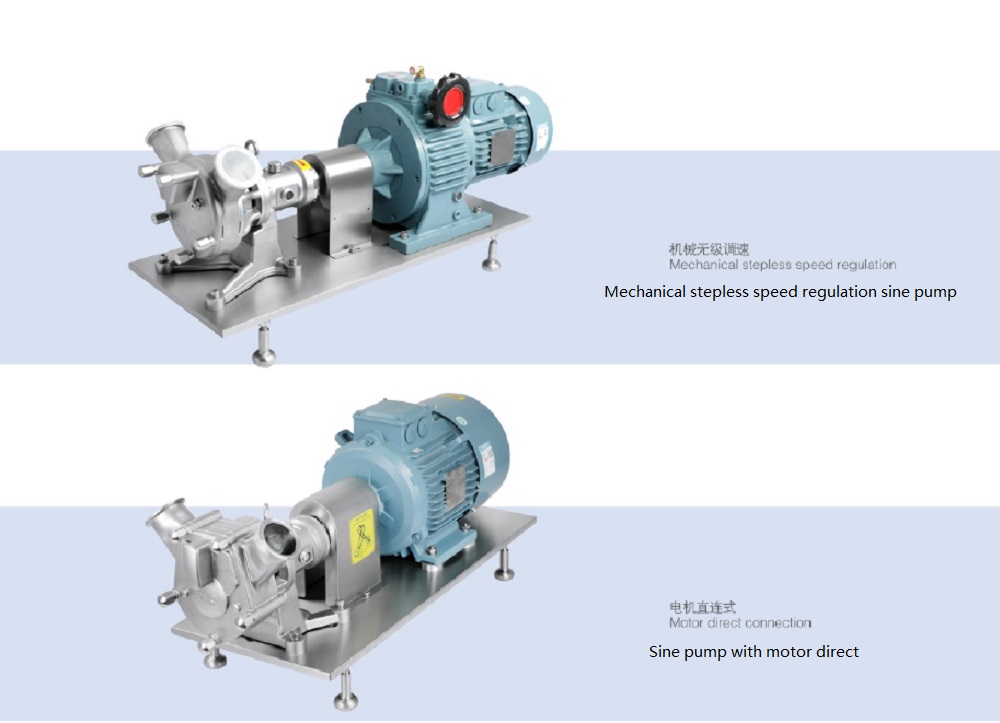

Configuration of Sine Pump​​


Configuration of Sine Pump

Configuration of Sine Pump
