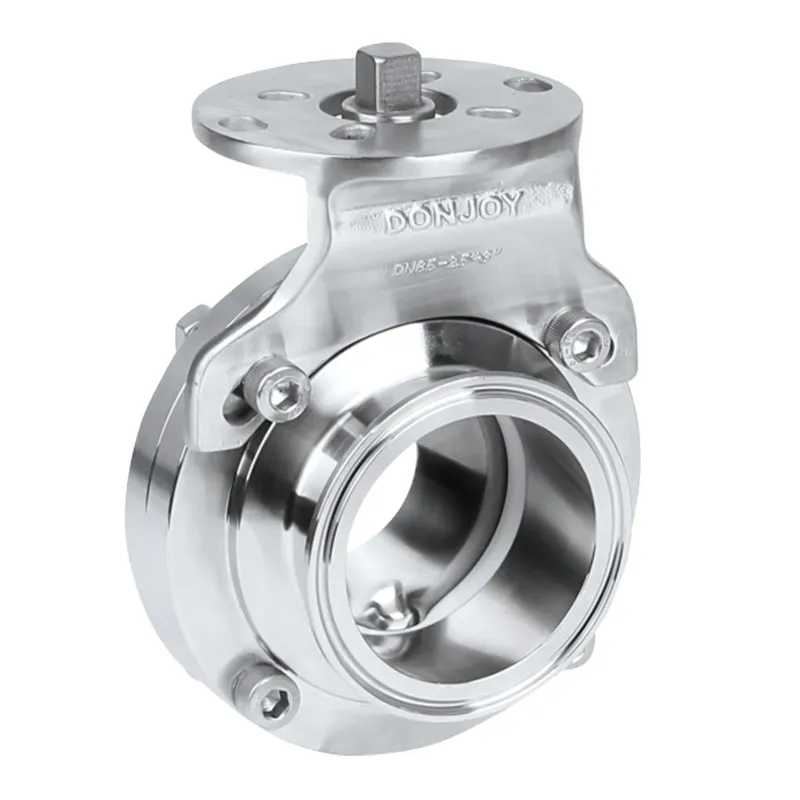

Donjoy has been producing butterfly valves for more than 30 years.
Manufacturing more than 3 million units for various industries, Very flexible valve body combination, super long life, super small torque, Forged valve body, forged valve disc, Fully automatic robot production line.
| Size | 1/2"-12", DN10-DN300 |
| Material | 304/1.4301, 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5% |
| Pressure | vacuum to 10bar (1.0 MPa) |

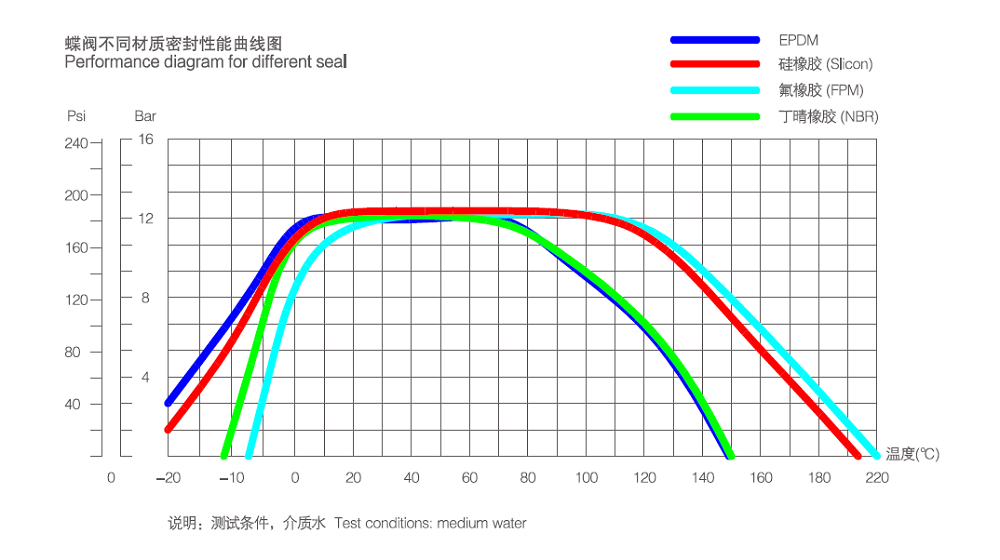

| Temperature | EPDM -20℃ to +130℃, Depending on the seal material |
| Seal | EPDM SILICON FKM FFKM HNBR FVMQ NBR |
| Connection standard | DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853 |
| Connection method | thread, clamp, welding, flange |

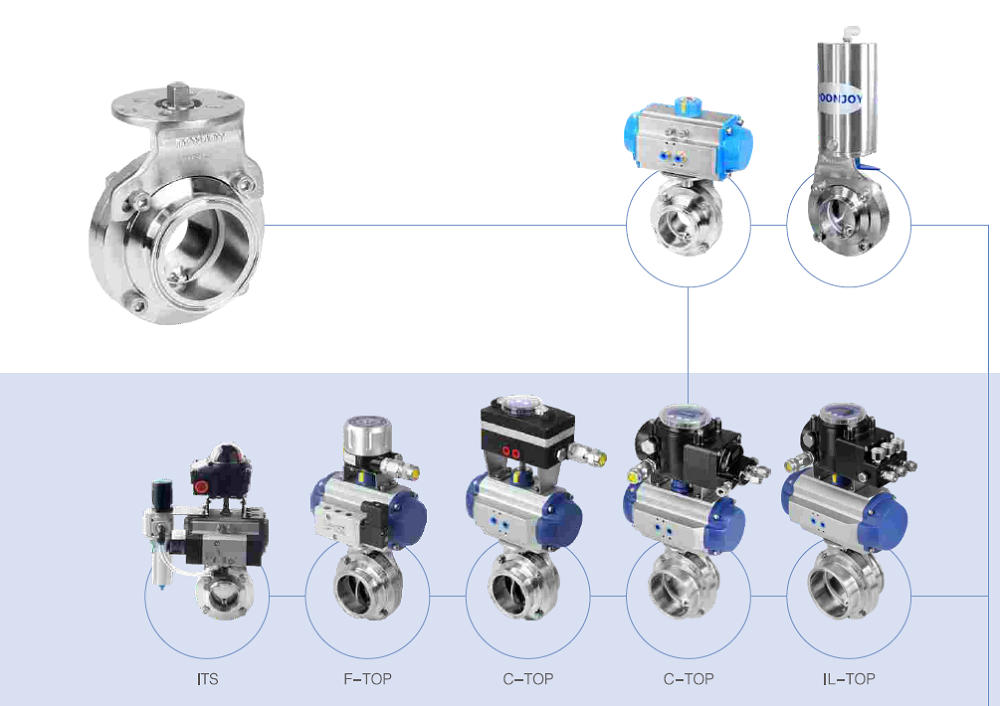

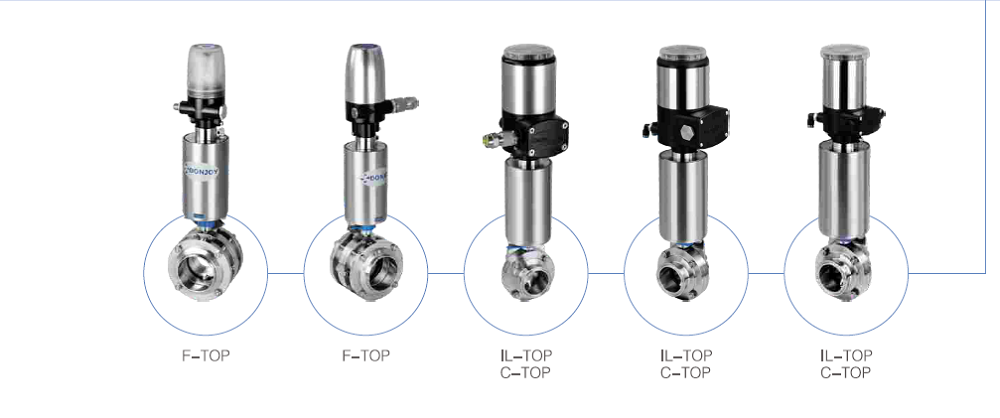

| Drive mode | manual, turbo, pneumatic, electric |
| Surface | Ra≤0.8μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm |
| Certification | FDA 177.2600; 3A-18-03; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC |

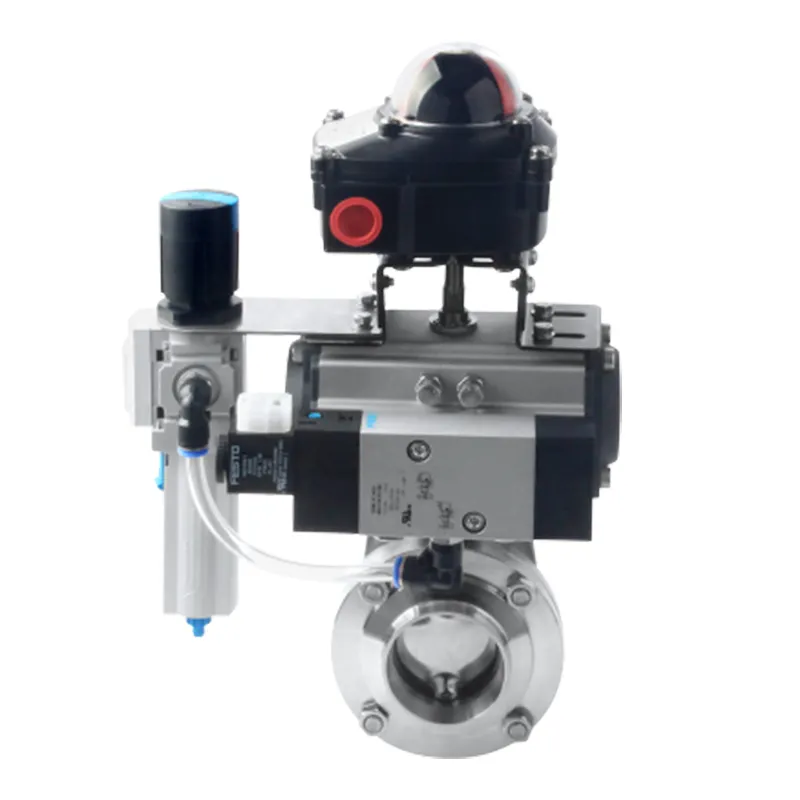

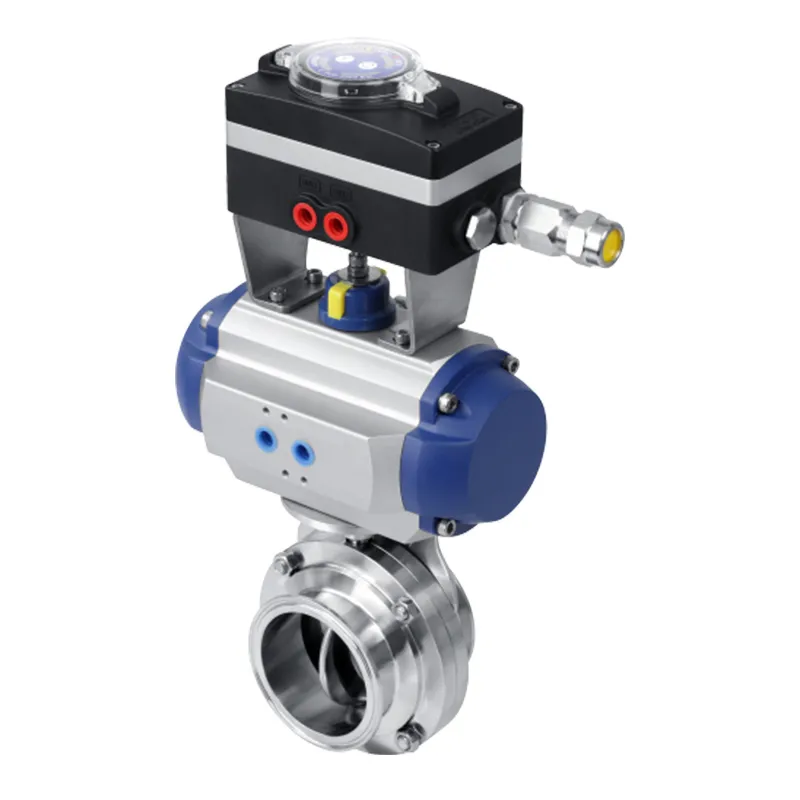

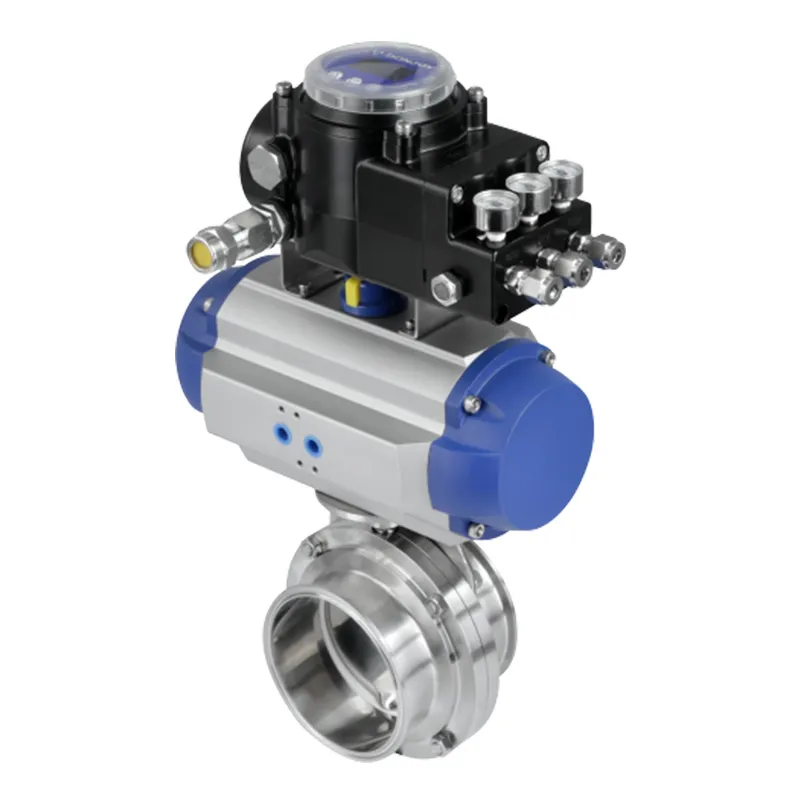

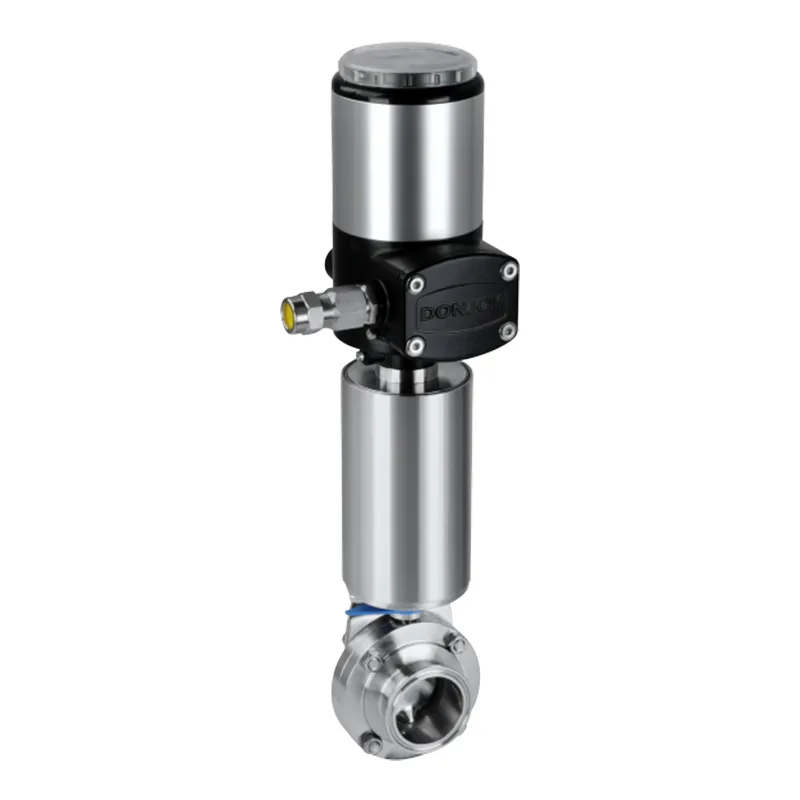

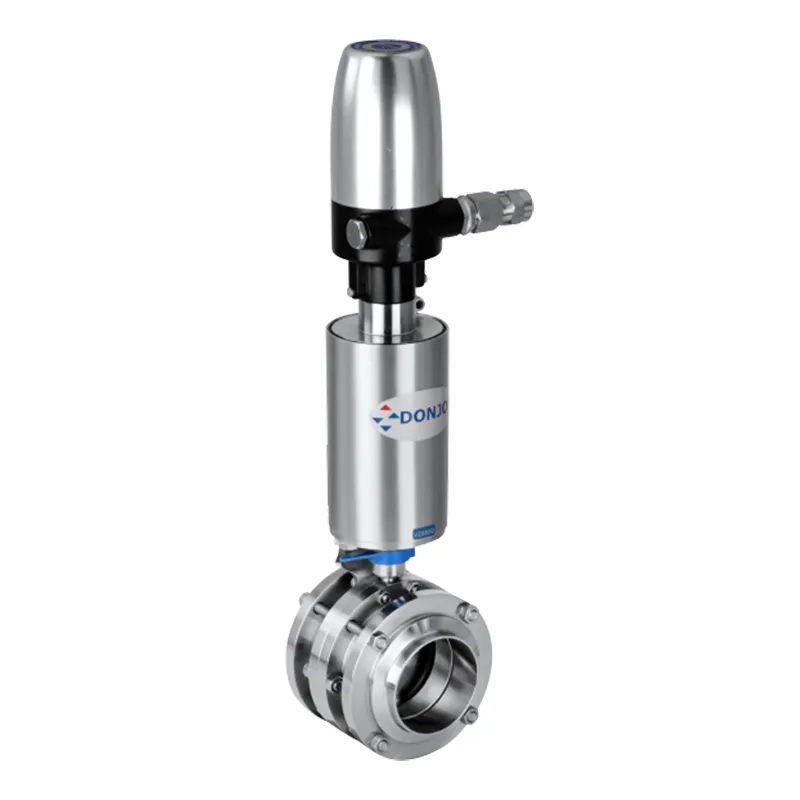

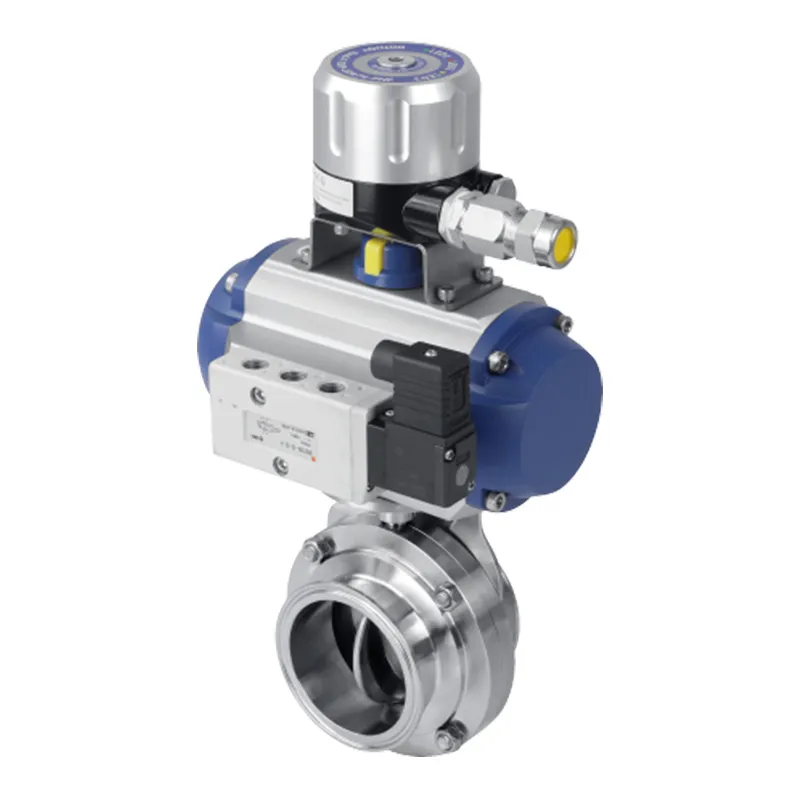

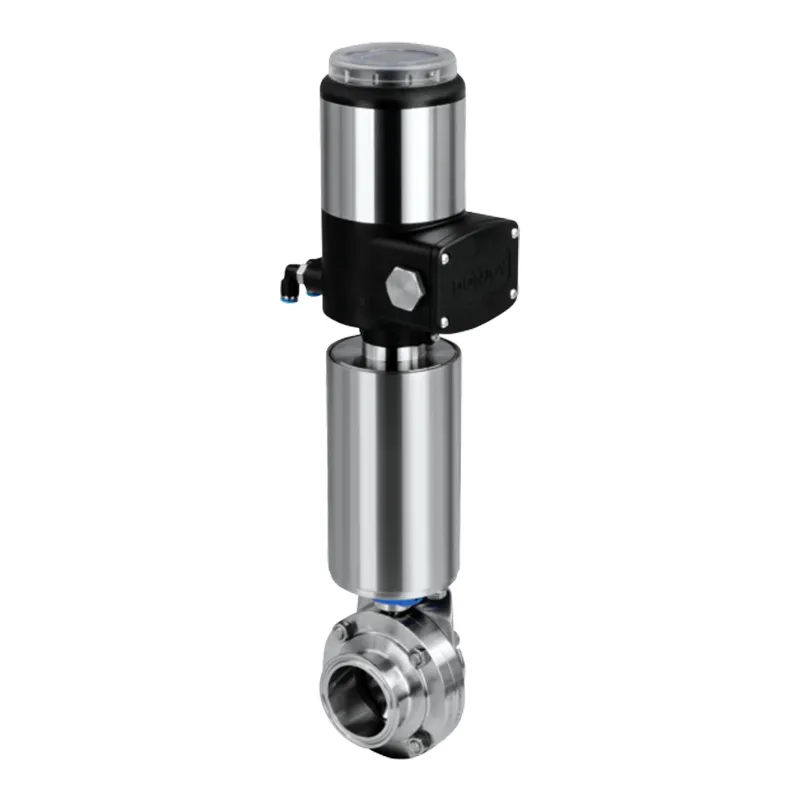

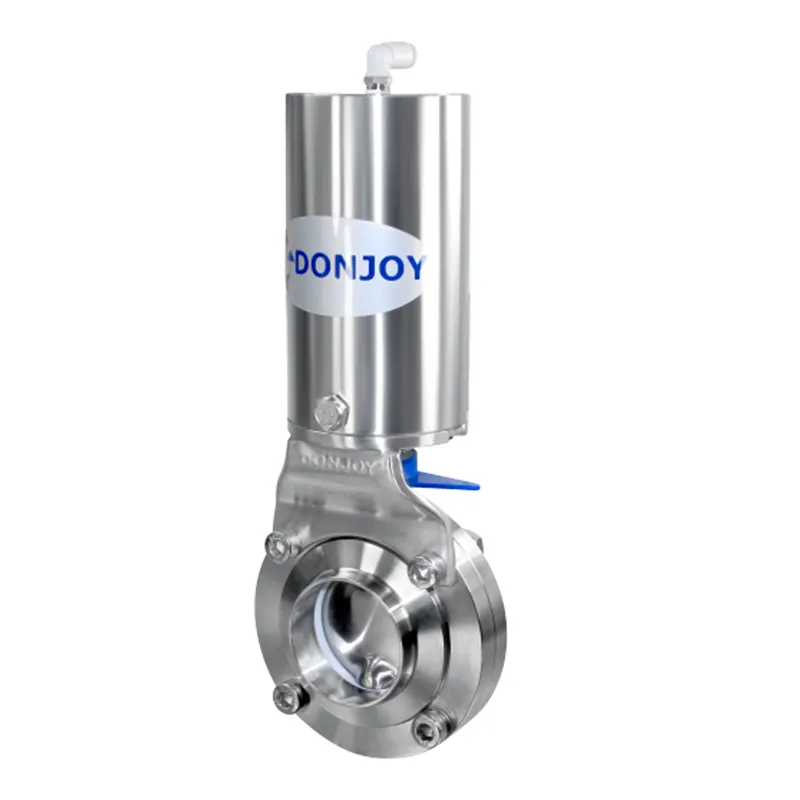

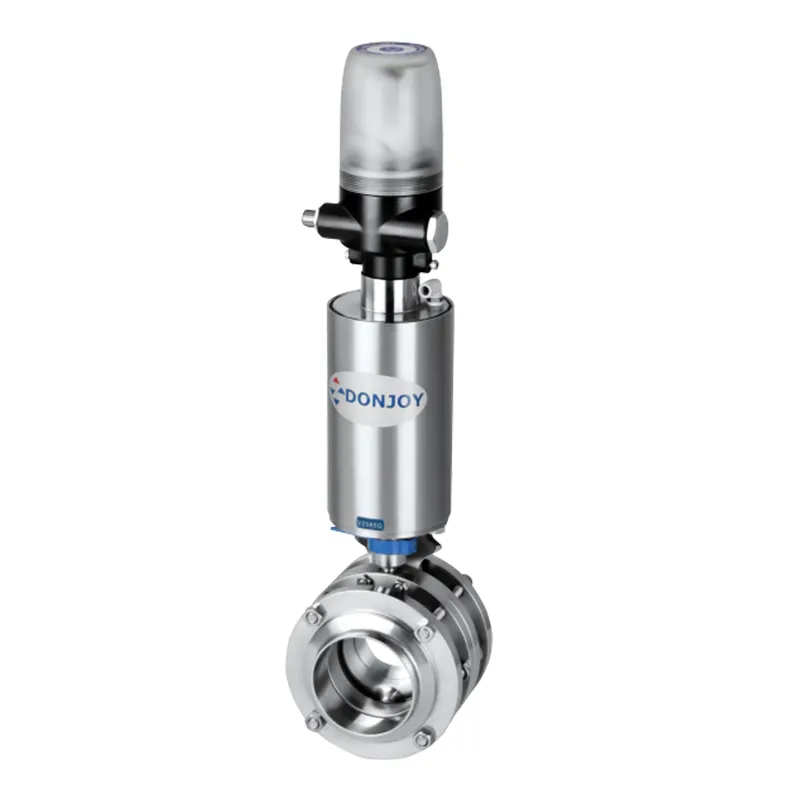

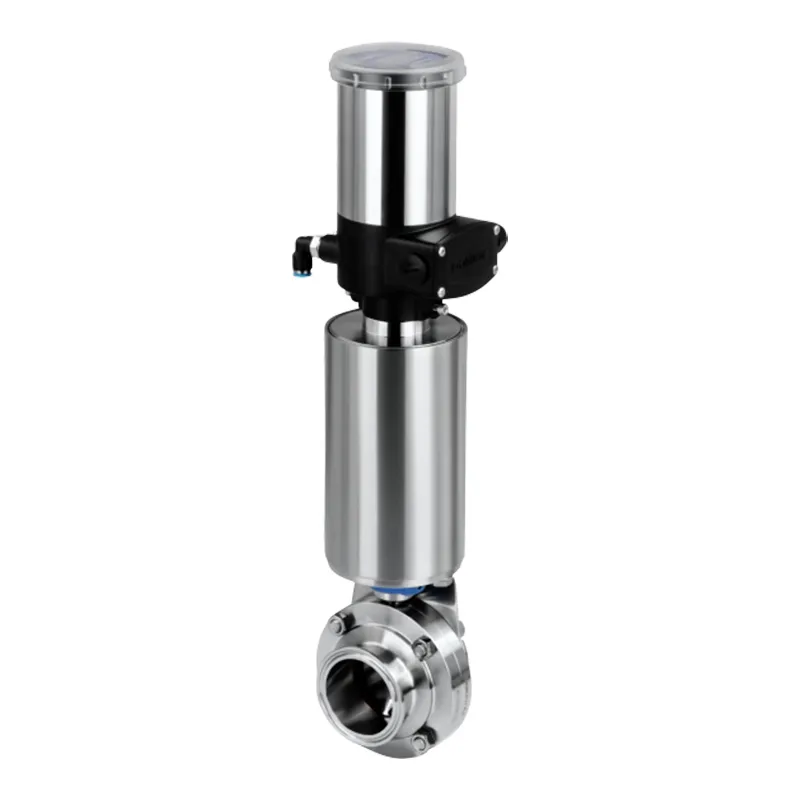

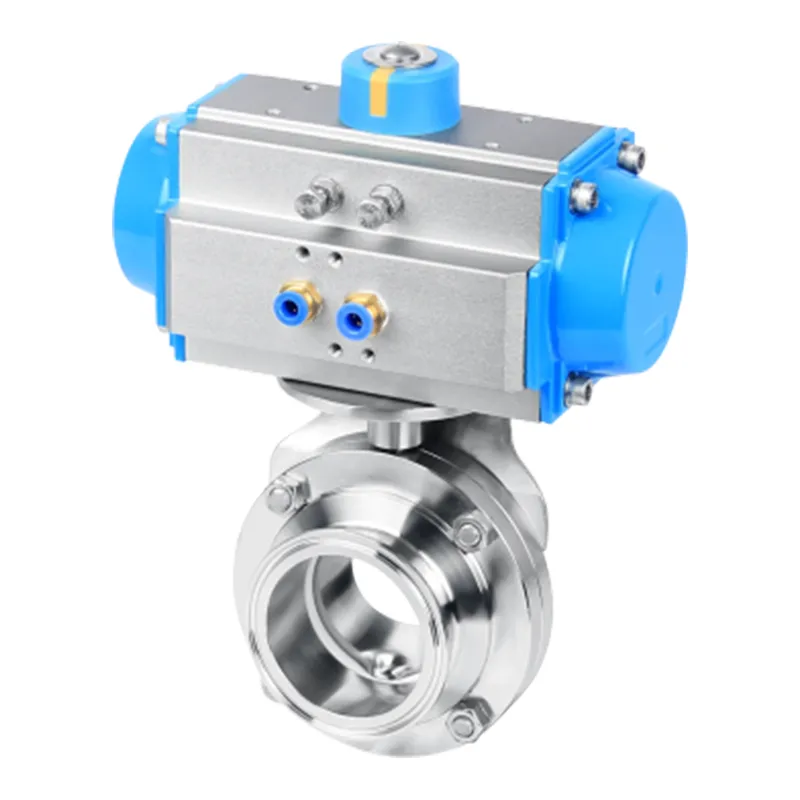

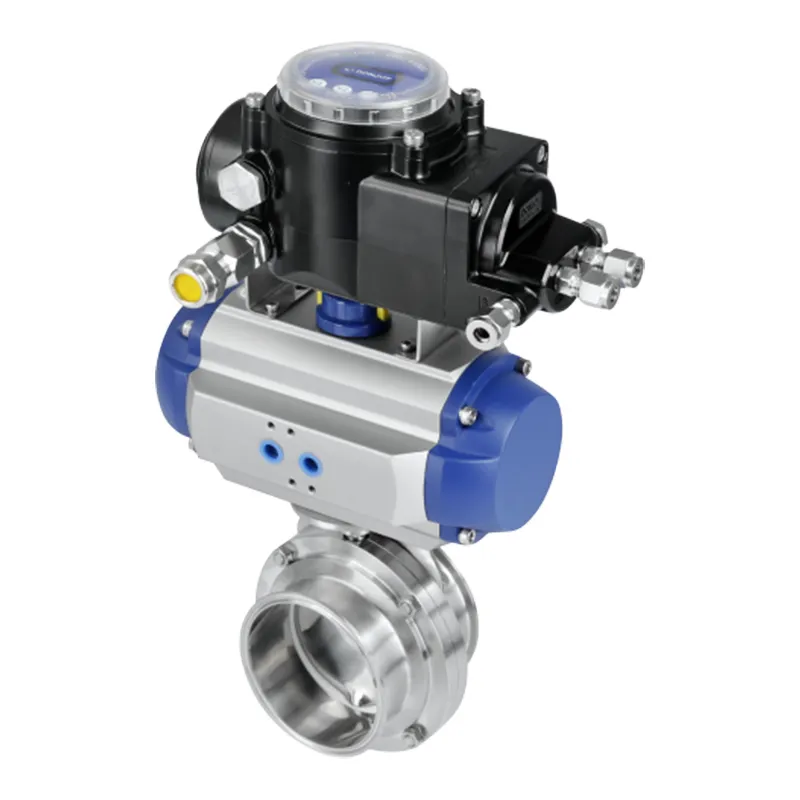

Donjoy's Sanitary Pneumatic Butterfly Valves with Control Unit deliver high-precision flow management, exceptional cleanliness, and durable performance. Designed for biopharmaceutical and food industries, they ensure reliable, efficient operations with flexible configurations. Enhance your process safety and productivity—choose Donjoy for superior quality.
