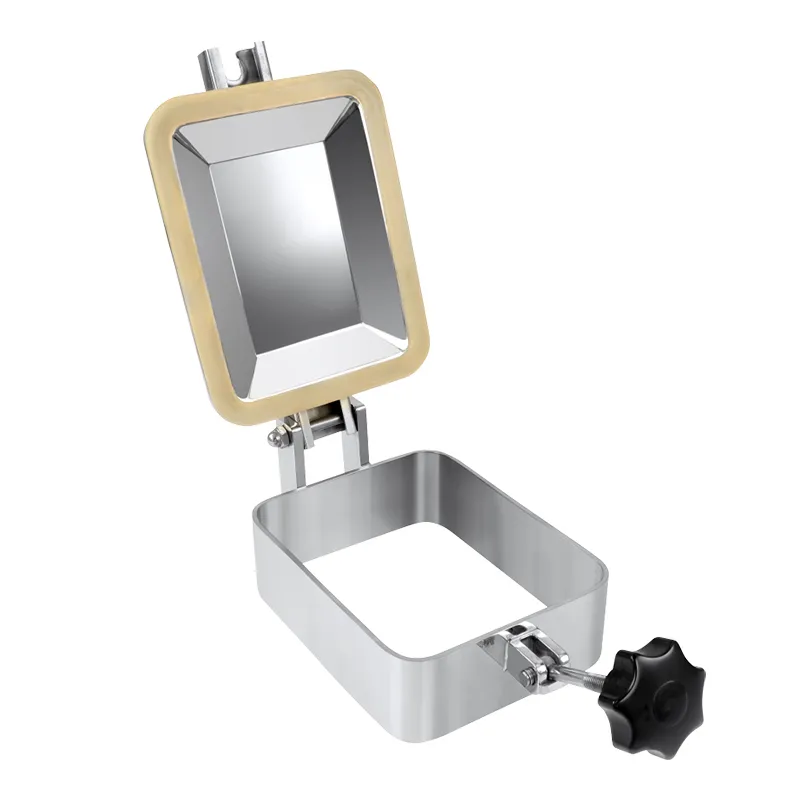

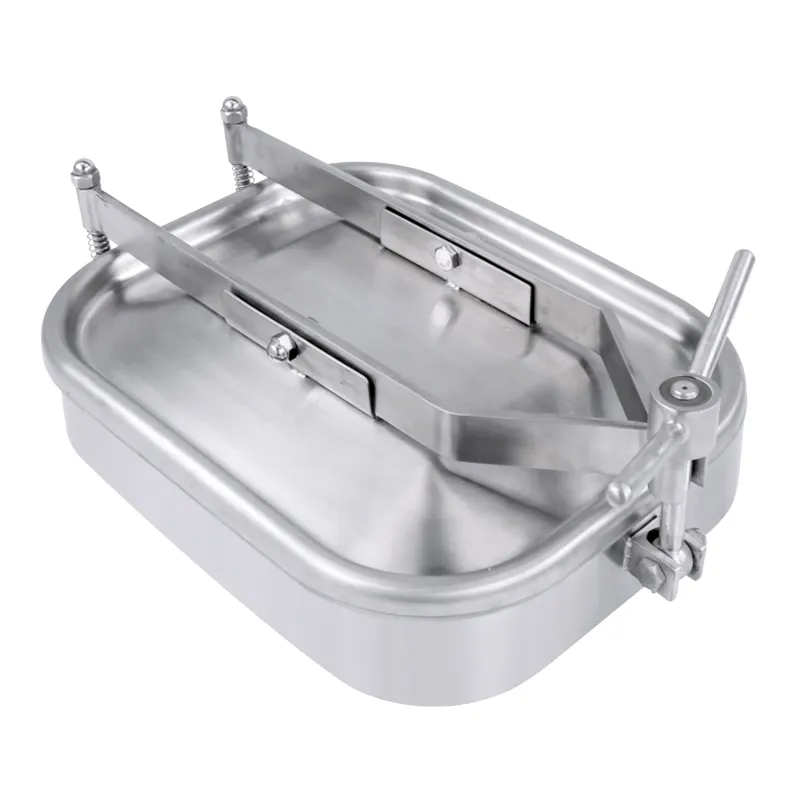

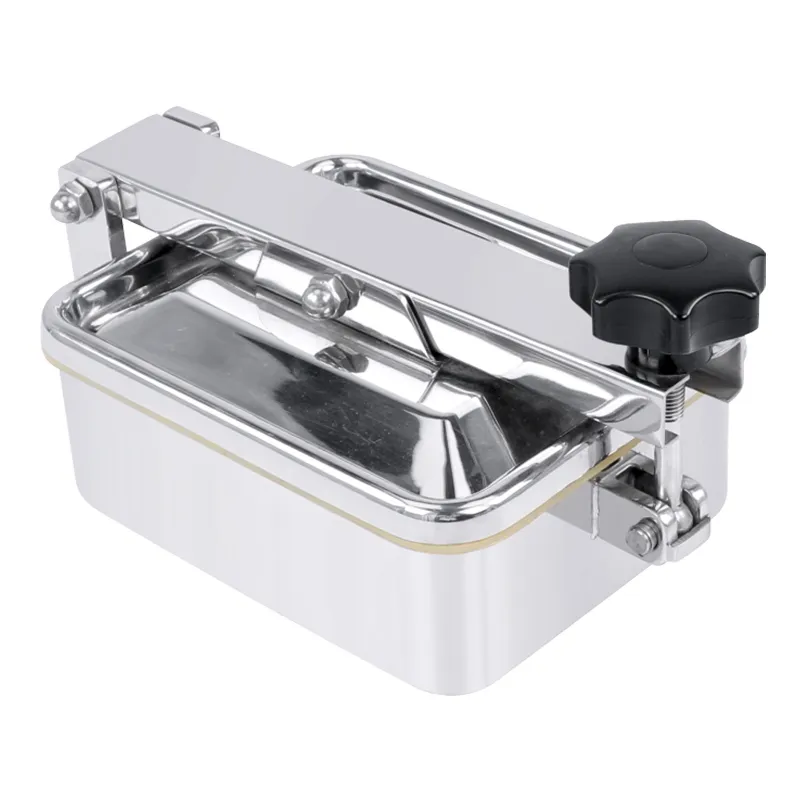

Engineered for food, beverage, and pharmaceutical industries, our rectangular manway ensures hygienic tank access with FDA-compliant seals, stainless steel construction, and customizable pressure ratings (up to 1.0 bar). Ideal for maintaining cleanliness and efficiency—optimize your equipment today!
DJ-RK-FX-MINI type
| Size | 120*180, 185*235, 200*280 |
| Seal material | EPDM; FKM; Slicon; HNBR |
| Shell material | 304/1.4301; 316L/1.4404 |
| Handwheel material | Nylon、304 |
| Operating temperature | -20℃~130℃ |
| Working pressure | ≤0.5bar |
DJ-RK-FX type
| Size | 425*335, 535*435 |
| Seal material | EPDM; FKM; Slicon; HNBR |
| Shell material | 304/1.4301; 316L/1.4404 |
| Handwheel material | Nylon、304 |
| Operating temperature | -20℃~130℃ |
| Working pressure | ≤0.5bar |
