Donjoy has been manufacturing high-cleanliness diaphragm valves for 20 years and has applied more than 500,000 pieces in various fields, involving more than 300 varieties, such as 2-way, 3-way, U-shaped 3-way, multi-ports, adjustable, manual, pneumatic, electric, etc. And they are interchangeable.
| Size | 1/4"-4", DN6-DN100 |
| Material | 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5% |
| Pressure | vacuum to 10bar (1.0 Mpa) |
| Temperature | -20℃ to +150℃, Depending on the seal material |
| Seal | EPDM SILICON FKM FFKM HNBR NBR EPDM+PTFE |
| Connection standard | DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853 |
| Connection way | threaded, clamp, welding, flange |
| Drive mode | manual, pneumatic, electric |
| Roughness | Ra≤0.6μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm |
| Certification | FDA 177.2600; 3A-18-03; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC. |

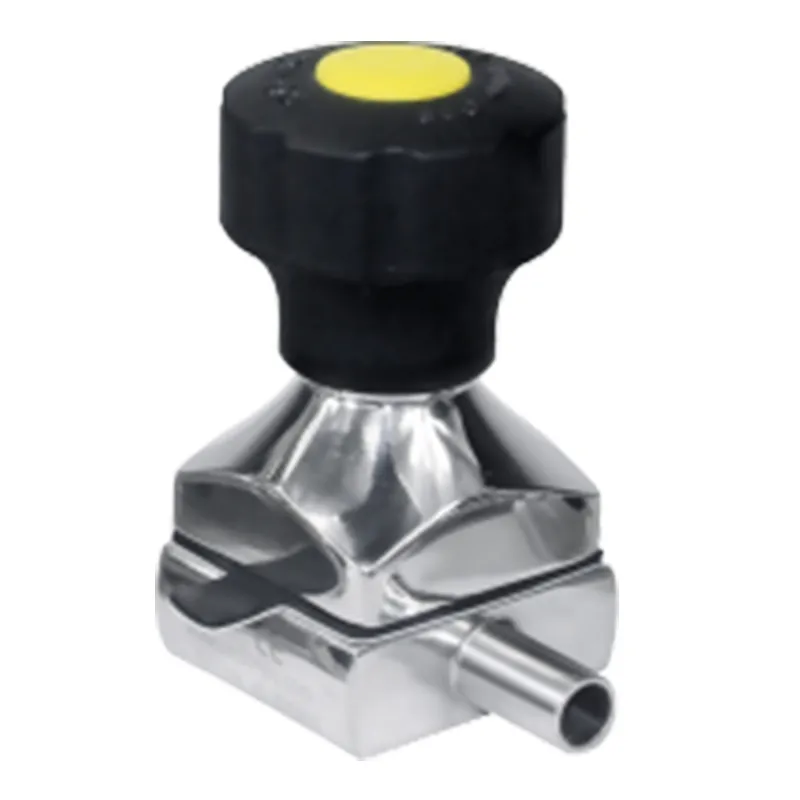

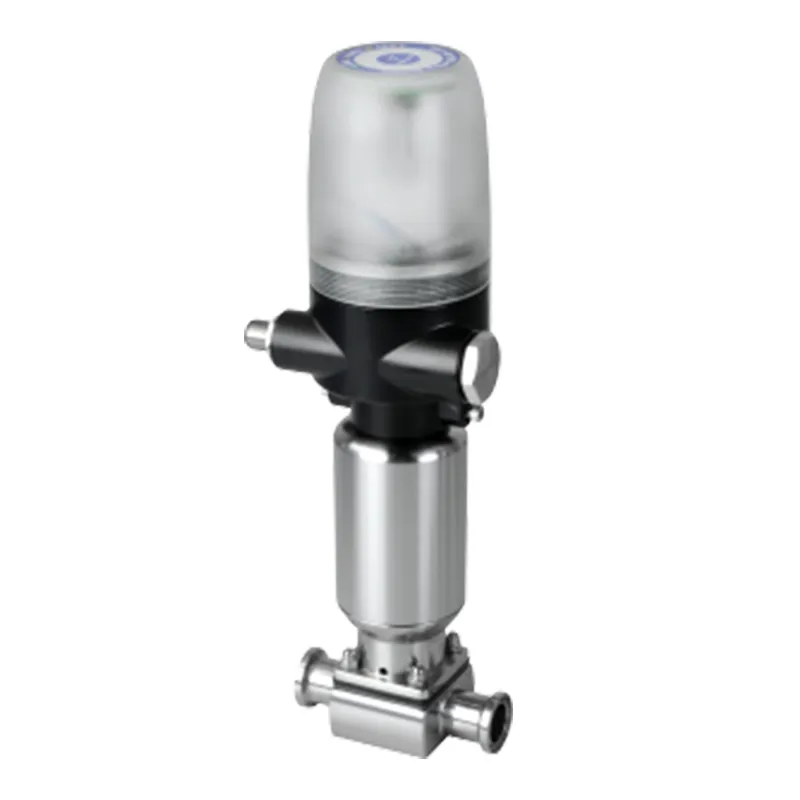

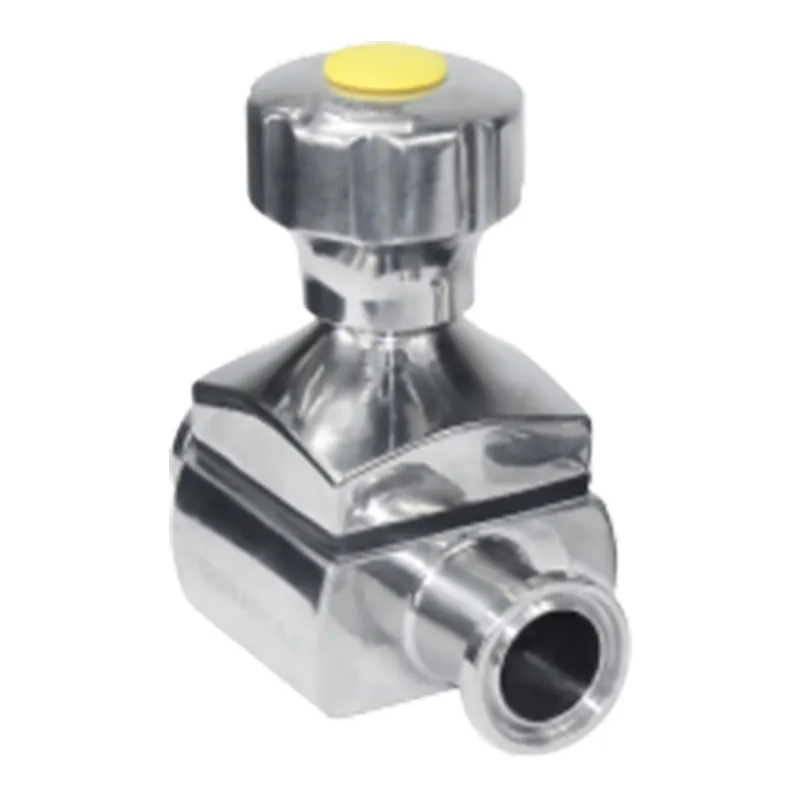

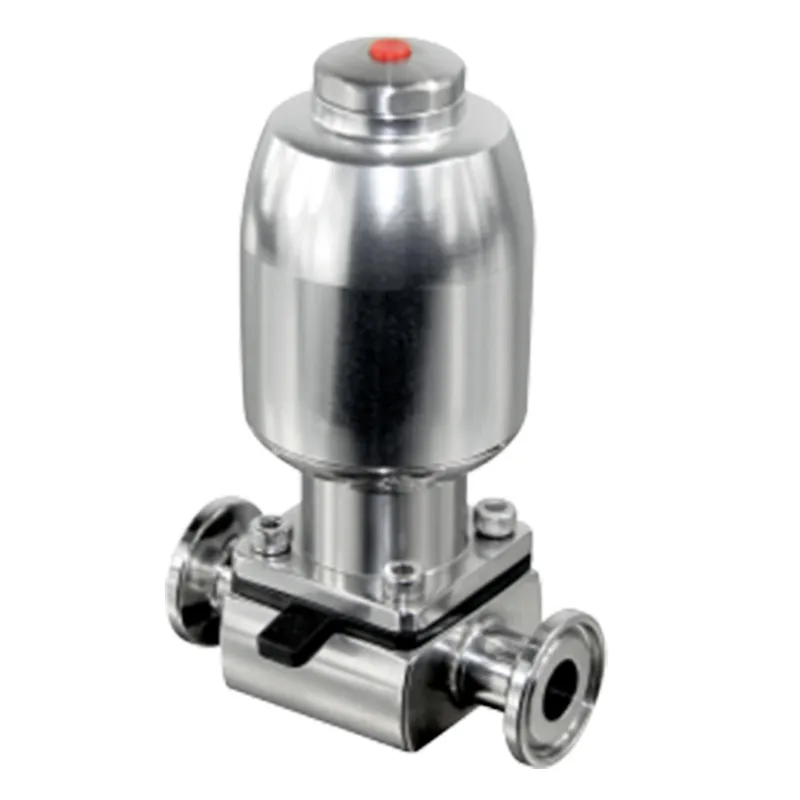

Discover Donjoy's Mini Diaphragm Valve: a compact, high-purity solution for sanitary applications in biopharma, food, and beverage industries. With FDA and 3-A certifications, it ensures reliability and efficiency. Enhance your process with our innovative design—contact us to learn more
All synthetic resin and additive are comply with FDA certification
Material chemical composition, physical properties and manufacturing process are documented
All diaphragm seal consistency with FDA certificate
-21-CFR-FDA 177.1550 perfluorocarbon synthetic resin
-21-CFR-FDA-177.2600 rubber
USP 28 class VI CHAPTER 87 IN VITON and CHAPTER 88 IN - VITON consistency the authentication
3-A consistency authentication NO: 54-02-1580
EN 10204-3.1 Certificate on traceability of stainless steel Chemical composition synthesis
CE-PED/97/23/EC N.O.: TUV DGR 0036-QS-1153-14
