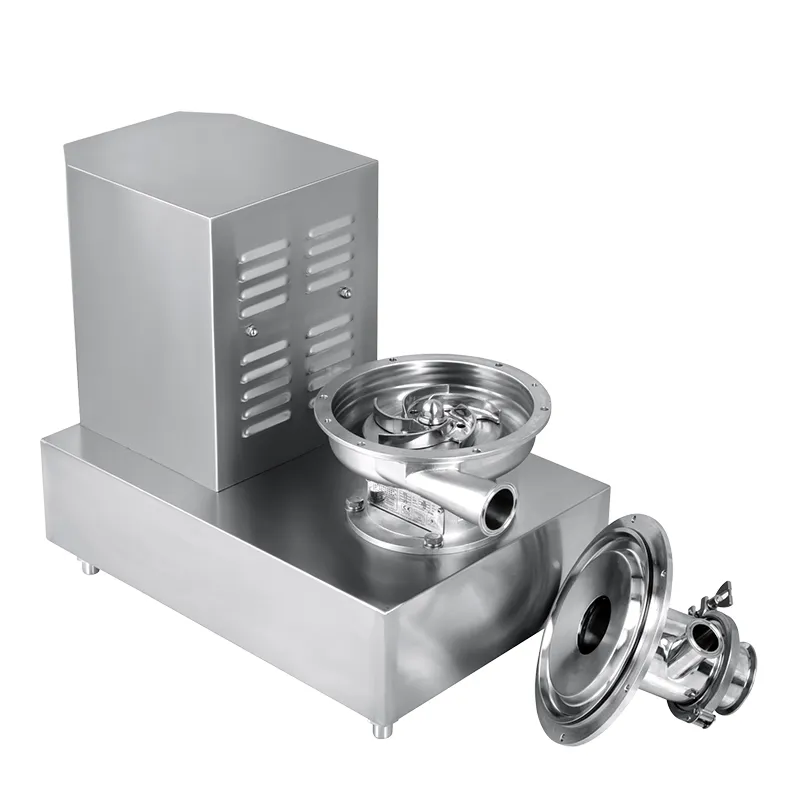

The HHQ series mixing pump is for mixing solid or powder into the liquid. It provides on-line perfect processing solutions for milk powder compounding, syrup making and brine making, etc. It also can be used for preparing solid and powder mixing, in the food and beverage, biopharmacy, traditional chinese medicine making, cosmetics and chemicals.
HHQ series is typically used for mixing, emulsification, homogenization and other functions of powder, solid, liquid and other materials and liquids.
| Max capacity of powder | 9000kg/h |
| Max capacity of thickeners | 3000kg/h (Depends on the viscosity and concentration of the material) |
| Max temperature | 130℃ |
| Material | 304 /316L, 1.4301/1.4404, ASME BPE 316L, 1.4435 BN2 Fe≤0.5% Dual-phase steel 2205, Hastelloy alloy C276 |
| Surface treatment | ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm |
| Mechanical seal | Single mechanical seal and double mechanical seal |
| Mechanical seal combination | See configuration table |
| Inlet/Outlet Connection | Thread, Clamp, Flange, Aseptic flange |
| Certification | 3-A-02-12(N.O.1579); MD/06/42-EC (N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004 |

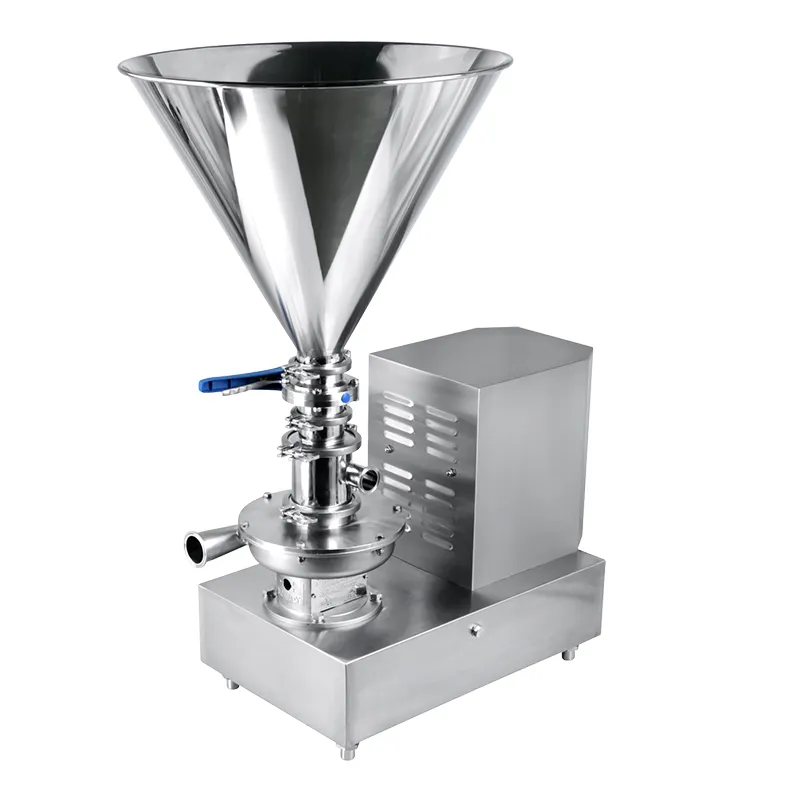

Simple hopper-based mixer for solid-liquid blending, with capacities up to 9000 kg/h. Easy to clean and ideal for powder dissolution in water or solvents.
Very Simple And Clear Piping Layout:
Multiple tasks can be handled simultaneously.
Ratio between liquid and powder is adjustable.
The powder inlet is designed with a valve that controls the amount of powder inhaled. The valve can be manual and pneumatic.
The liquid inlet is designed with a valve that controls the flow of liquid inhaled.
The side of the hopper is designed with a vibrator to prevent the powder from accumulating and agglomerating.
The hopper can be configured with tuning fork sensor. when work automatically, the sensor can prevent mixture ratio from inconsistent caused by low amounts of powder, and also can prevent the powder from overflowing.
