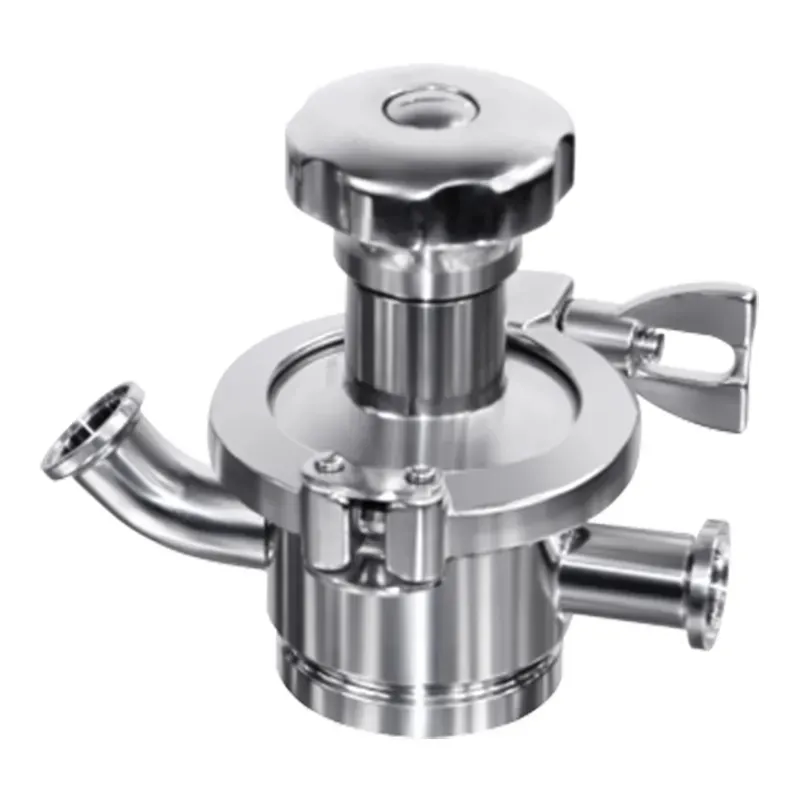

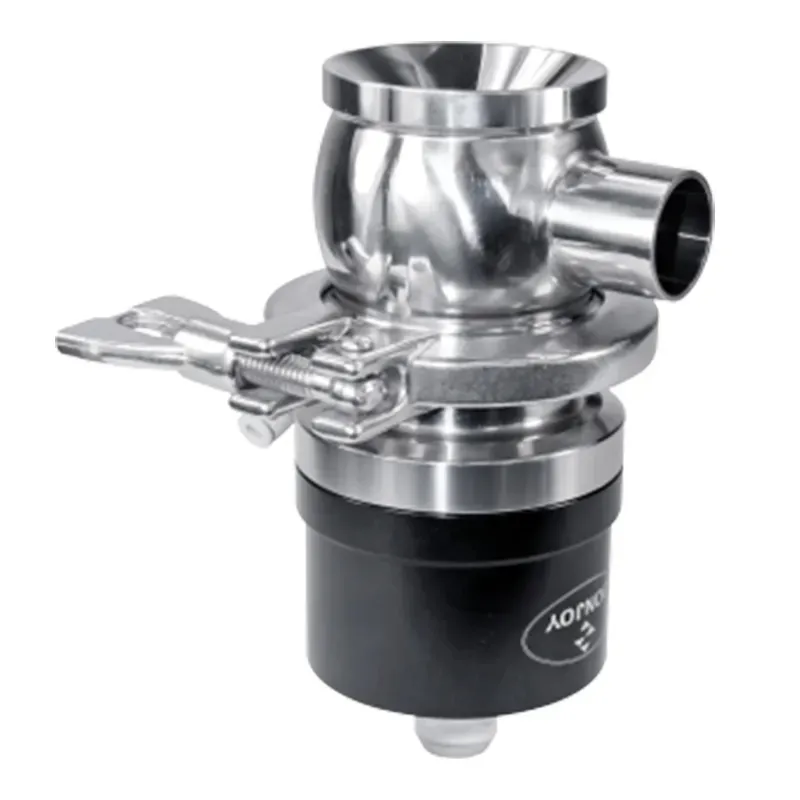

Mainly used in pharmaceutical, biotech, health care, cosmetic and food industries.
In the pharmaceutical industry, the valve can be used as process control valve, dosing valve, sampling valve and aseptic drain valve etc.
New diaphragm design.
Maintenance is simple, safe, and easy to operate.
Self-emptying function.
Dead leg minimization.
Had excellent KV value
CIP/SIP sterilization and cleaning

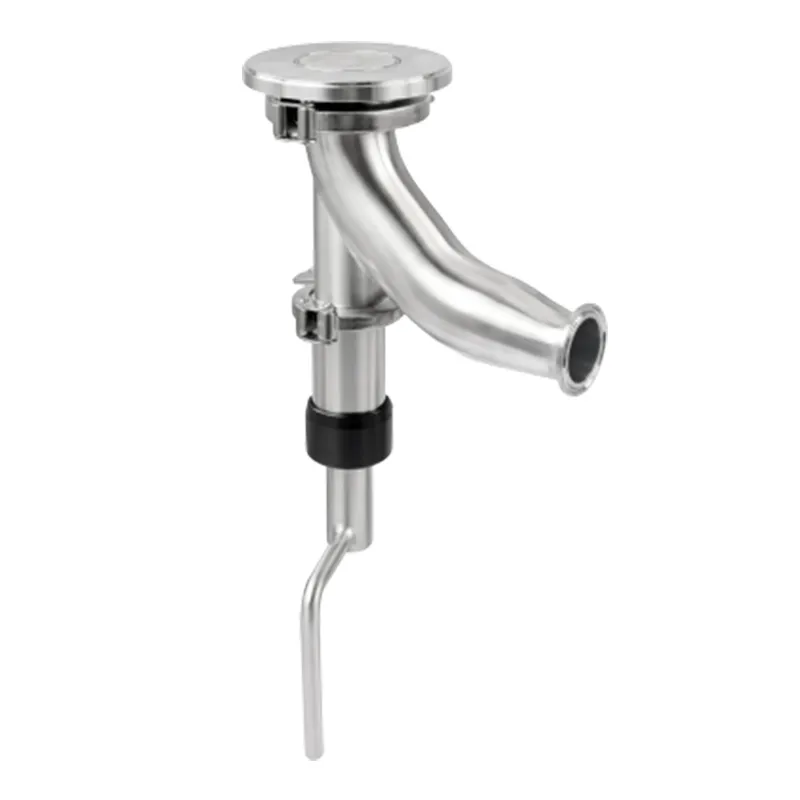

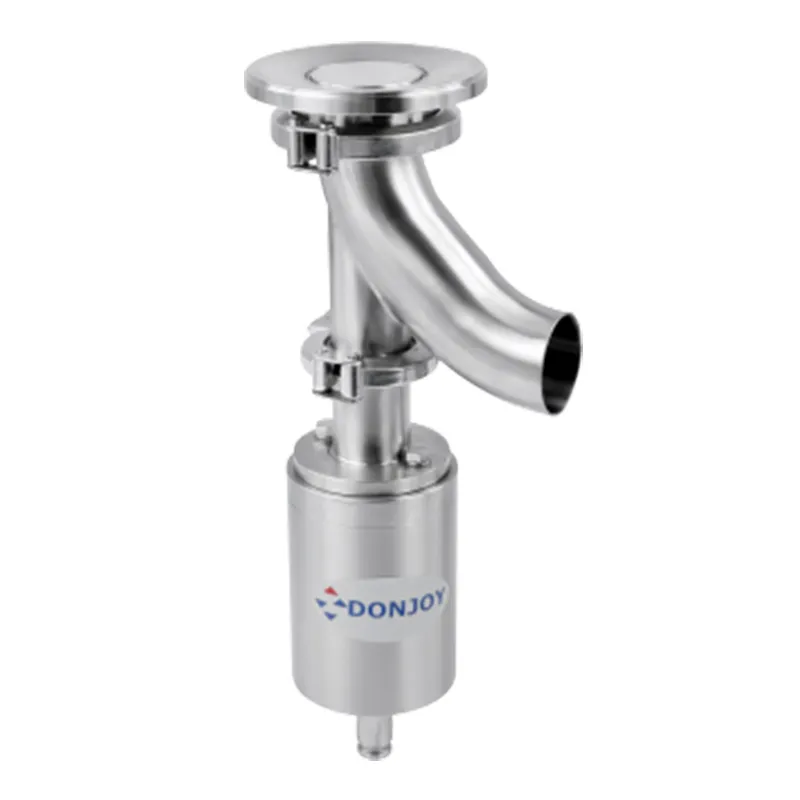

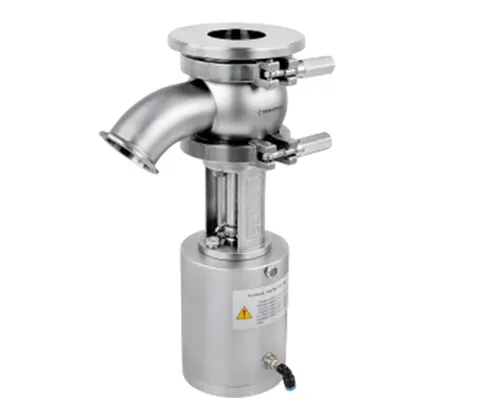

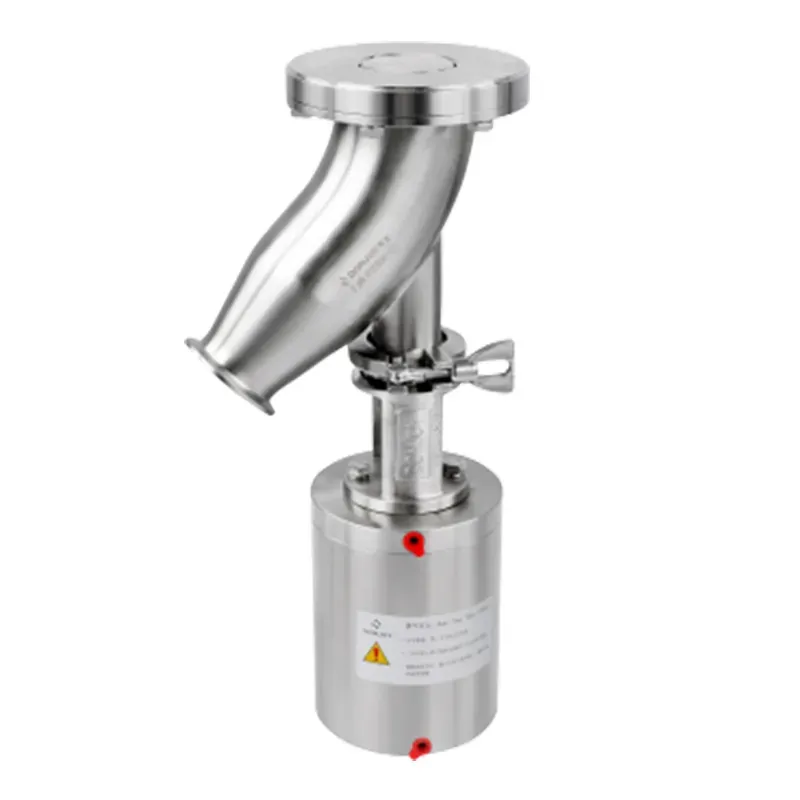

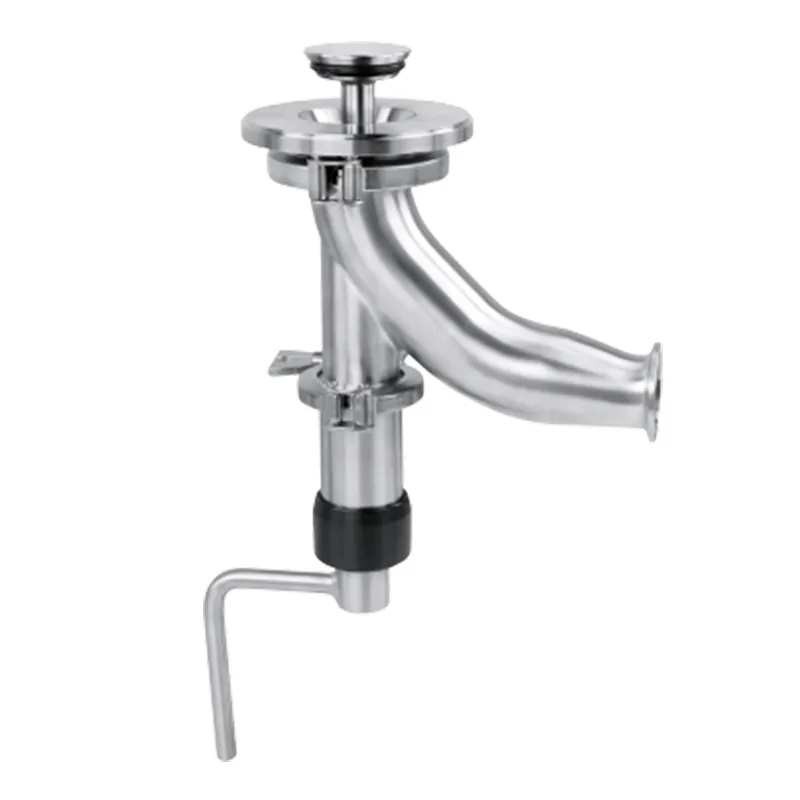

The tank bottom seat valve is a pneumatically operated single seat valve,assembled at the bottom of tank,used in diary,food processing, beverage,pharmaceutical and fine chemical industries.
Operated by Air/Spring, Air/Air
Compressed air push shaft to open and close valve
Valve structure: Valve seat opens construction inside so that it can avoid pushing when pipeline is over pressure
3A sanitary design
Complete discharge system avoids retention
Normally closed valve (closed by spring)-standard version
Normally open valve (opened by spring) by a 180 degree rotating of the pneumatic actuator
The valve seat opens into the tank to avoid accidental openings
360°adjustable body, even after welding the flange to the tank
Open lantern for visual inspection of the shaft sealing
Easy disassembly by loosening the clamp
Connections: clamp
