Elliptical Internally Opening Manway
Elliptical Internally Opening Manway
Elliptical Internally Opening Manway

Elliptical Internally Opening Manway

Elliptical Internally Opening Manway offers sanitary, FDA-compliant design for food and pharmaceutical sectors. Easy to clean, pressure-resistant up to 3.0bar, and built with high-purity materials. Contact us for a custom solution!

Specifications of Elliptical Internally Opening Manway


Size435*335, 530*430, 635*525
Seal materialEPDM; FKM; Slicon; HNBR
Shell material304/1.4301; 316L/1.4404
Handwheel material304/handle/hand wheel
Operating temperature-20℃~130℃
Working pressure≤3bar

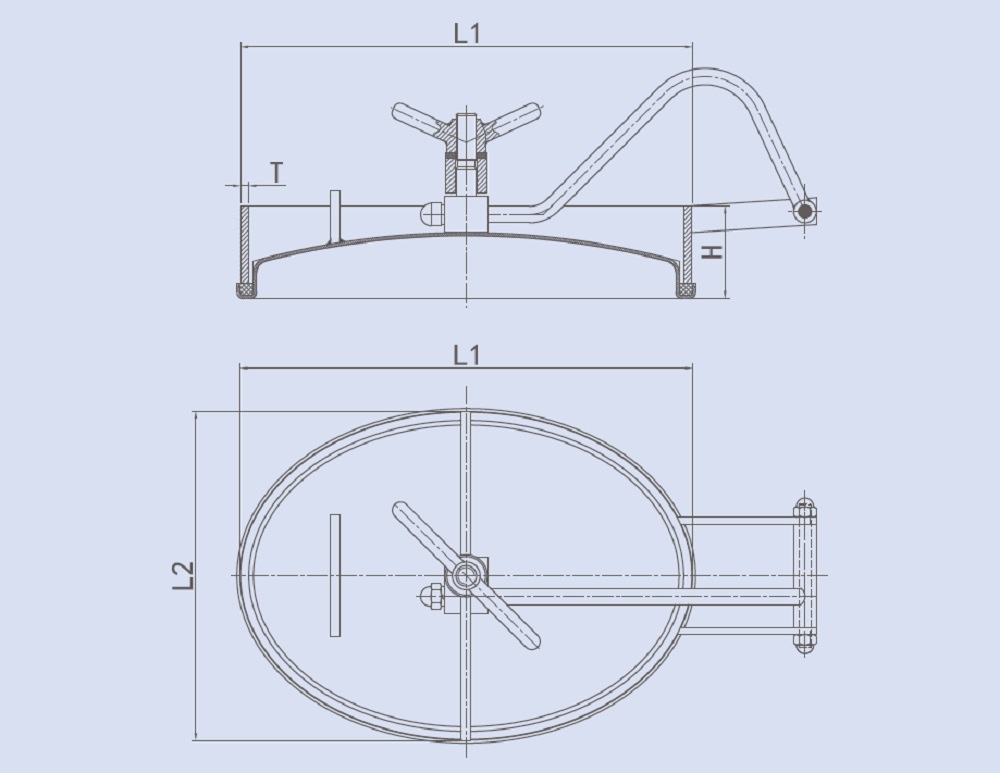

Drawing of Elliptical Internally Opening Manway


Drawing of Elliptical Internally Opening Manway

Drawing of Elliptical Internally Opening Manway

Drawing of Elliptical Internally Opening Manway

Drawing of Elliptical Internally Opening Manway
