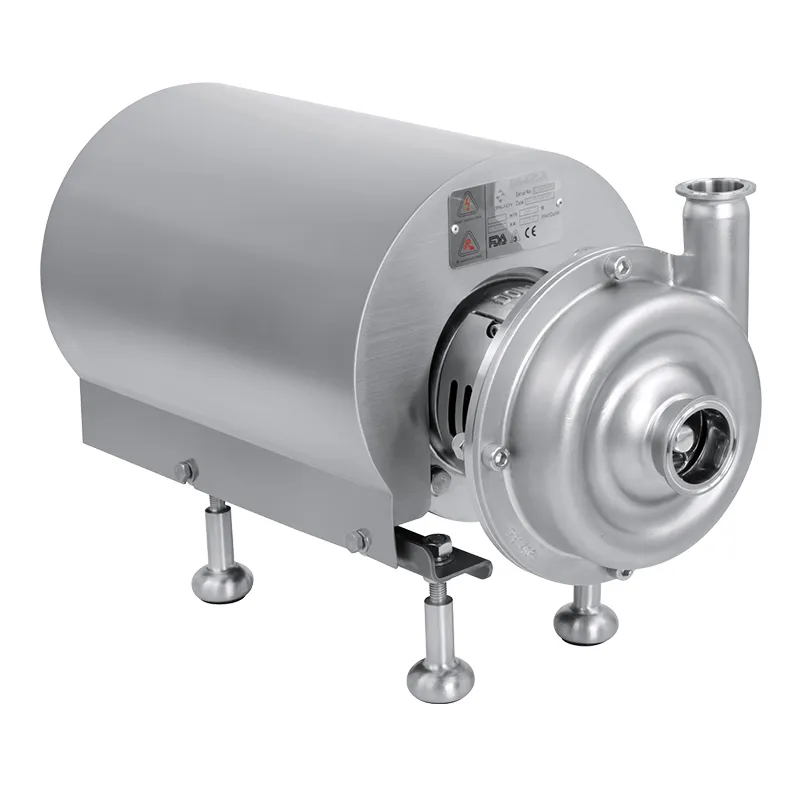

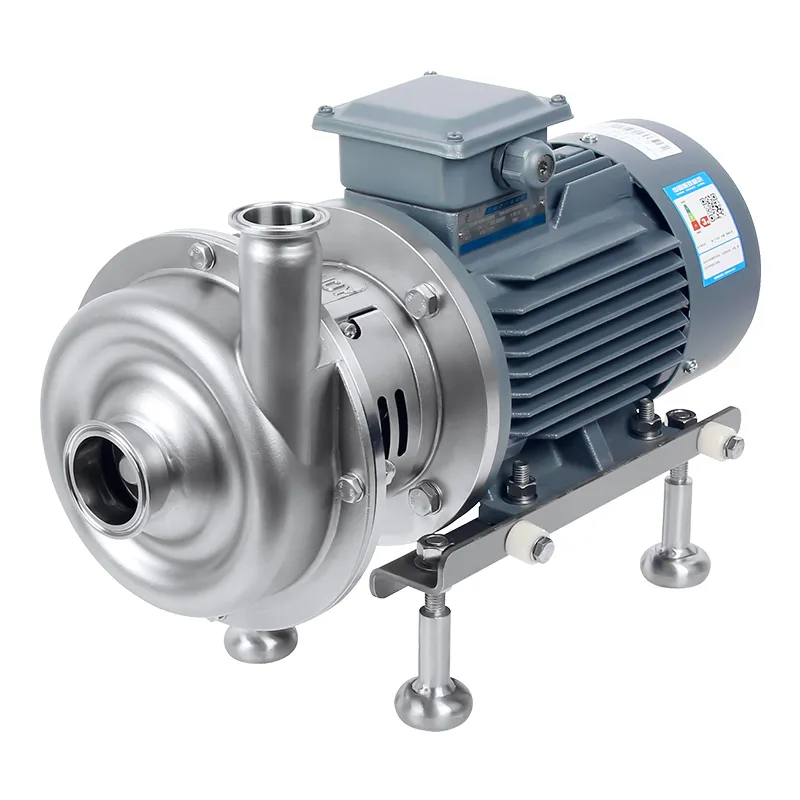

DJ-BS Centrifugal Pump
DJ-BS Centrifugal Pump
DJ-BS Centrifugal Pump

DJ-BS Centrifugal Pump

DONJOY DJ-BS series is a closed impeller centrifugal pump with simple internal structure and pressure balance design. It is suitable for various liquid transportation industries such as food and beverage, brewing and water treatment, and meets CIP cleaning. , SIP sterilization, etc. In addition, we have maintained the most flexible combination application for DJ-BS series pumps. For example, the pump outlet angle can be adjusted from 0° to 135°, various connection and import modes, and a wide range of machine seal materials. At the same time, the maintenance efficiency is maintained, and the high professionalism of the personnel is reduced, and no special special tools are required to complete these tasks. Therefore, the goal of achieving high efficiency, hygiene, high reliability and low cost is to make the DJ-BS series centrifugal pump a high-performance and low-cost pump.


Technical Specifications of DJ-BS Centrifugal Pump


Max flow rate:40m3/h
Max head:40M

Temperature:-20℃到140℃
Power:1.5KW-5.5KW

Material:304 /316L,1.431/1.4404

Surface treatment:≤ Ra0.8μm,≤ Ra0.6μm,≤ Ra0.4μm
Inlet/Outlet connection:Thread, clamp, flange, aseptic flange
Certification:MD/06/42-EC (N.O.70521616101-00);  FDA177.2600;USPCLASS-II; EG/VO1935/2004


Technical Advantages of DJ-BS Centrifugal Pump


  • Maintenance disassembly and installation can be completed without professional staff and special tools.

  • This pump only rotate clockwise, forbid to rotate counterclockwise. (can check rotation direction from backside of motor)
