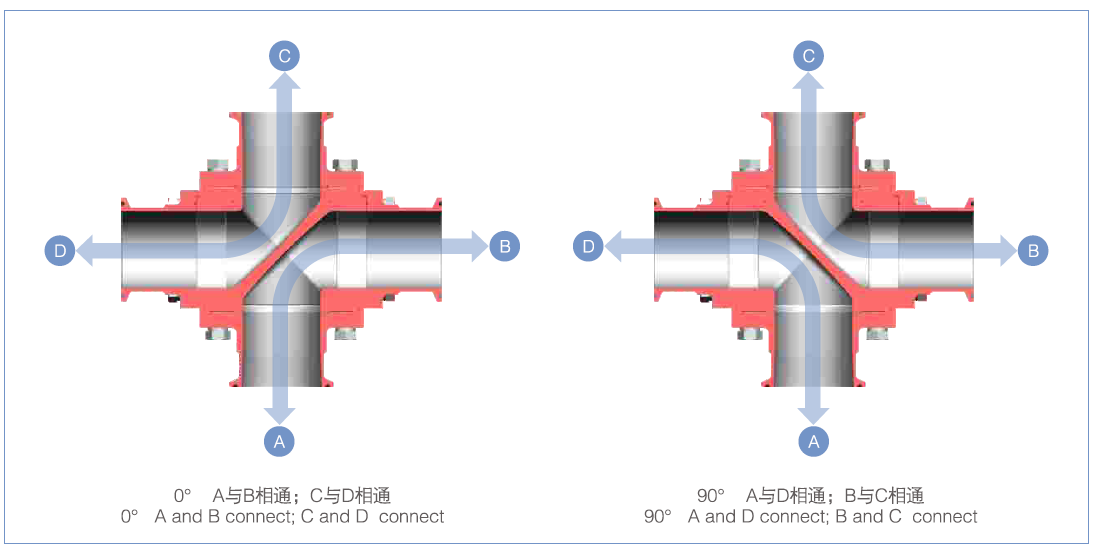

The four-way ball valve is a double L-channel ball valve, which is designed with 4 channels, and the channel can be switched by rotating 90°, and a double L-shaped channel is formed.
-
-
- EN
The four-way ball valve is a double L-channel ball valve, which is designed with 4 channels, and the channel can be switched by rotating 90°, and a double L-shaped channel is formed.

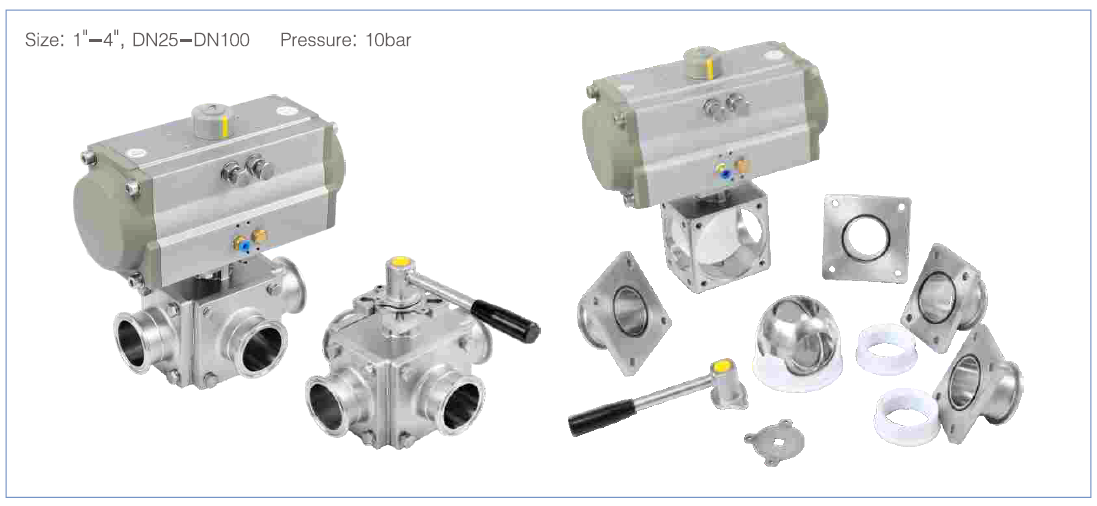

| Specifications | 1/2"-4", DN10-DN100 |
| Material | 304/1.4301, 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5% |
| Pressure | Vacuum to 10bar (1.0 MPa) |
| Temperature: | PTFE -20℃ to +130℃, Depending on the seal material |
| Sealing | TFM; PTFE; PTFE+Carbon; PEEK |
| Connection standard: | DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853 |
| Connection method | Thread, clamp, welding, flange |
| Drive mode | manual, turbo, pneumatic, electric |
| Surface finish | Ra≤0.8μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm |
| Certification | FDA 177.2600; 3A-68-00; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC. |
Donjoy 4-Way Ball Valve: Optimize Flow, Maximize Efficiency
Experience seamless multi-line diversion with Donjoy’s sanitary 4-way ball valve. Engineered for zero stagnation, CIP/SIP compatibility, and high-purity applications in biopharma, food, and beverage industries. Boost productivity with reliable, compact, and easy-to-maintain design.
