Small torque, long service life, full degreasing, sealing elastic compensation, small size, no internal retention, dead angle in appearance, very flexible function combination, maintenance without professional tools, economical, simple and reliable.

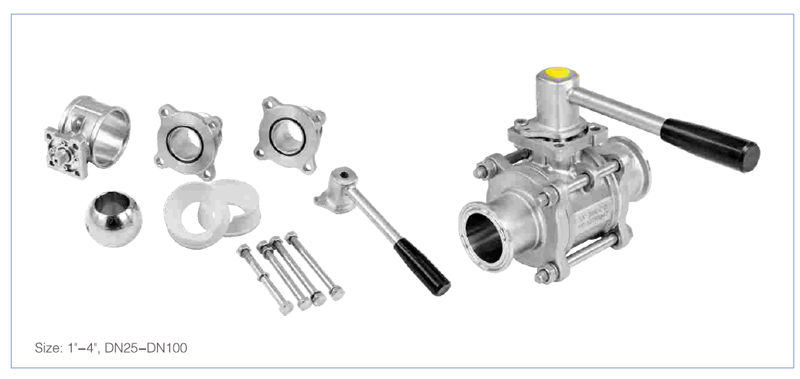

| Specifications | 1/2"-4", DN10-DN100 |
| Material | 304/1.4301, 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5% |

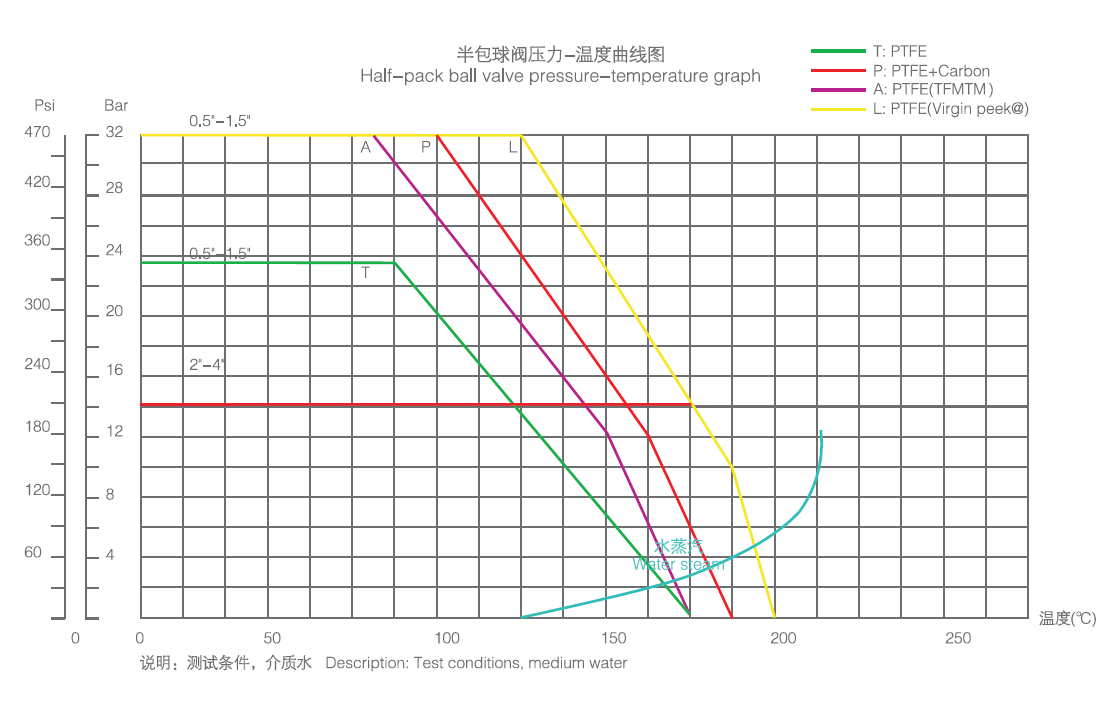

| Pressure | Vacuum to 10bar (1.0 MPa) |

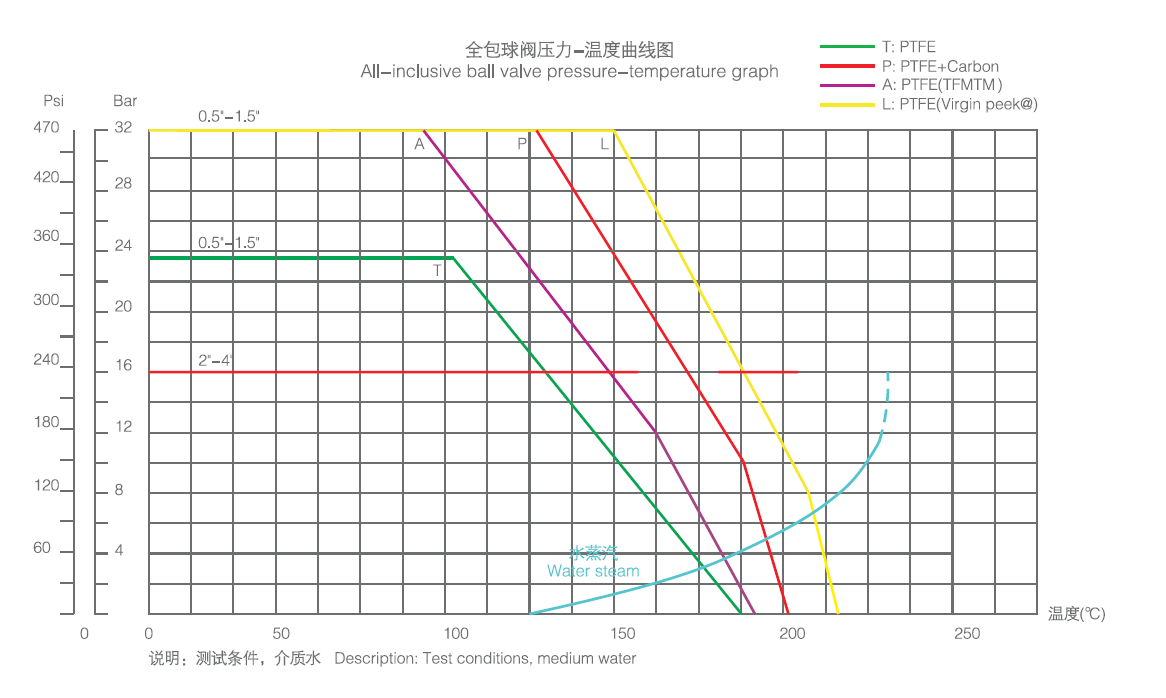

| Temperature: | PTFE -20℃ to +130℃, Depending on the seal material |
| Sealing | TFM; PTFE; PTFE+Carbon; PEEK |
| Connection standard: | DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853 |

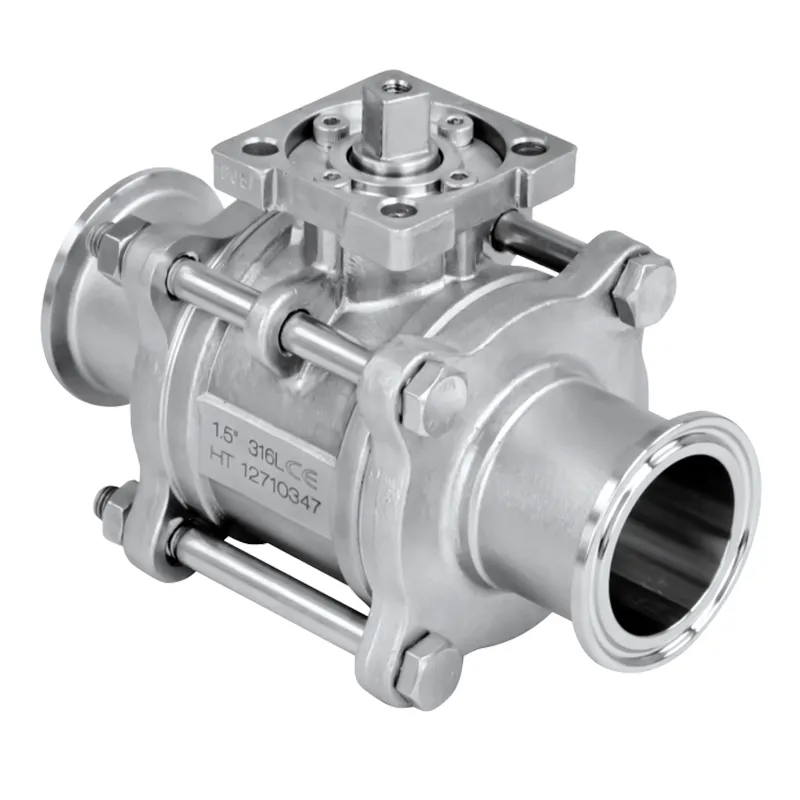

| Connection method | Thread, clamp, welding, flange |

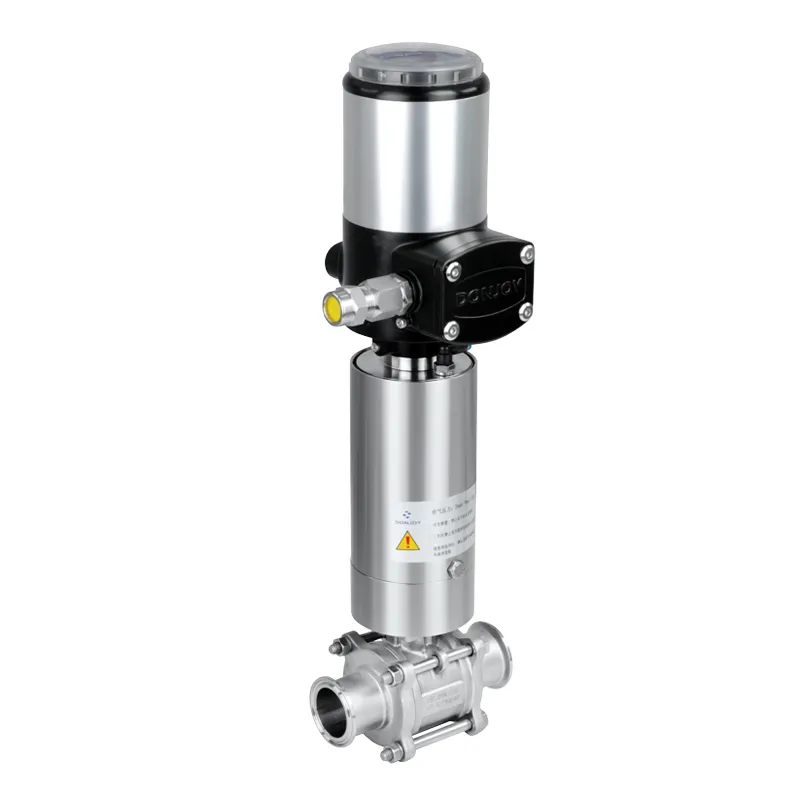

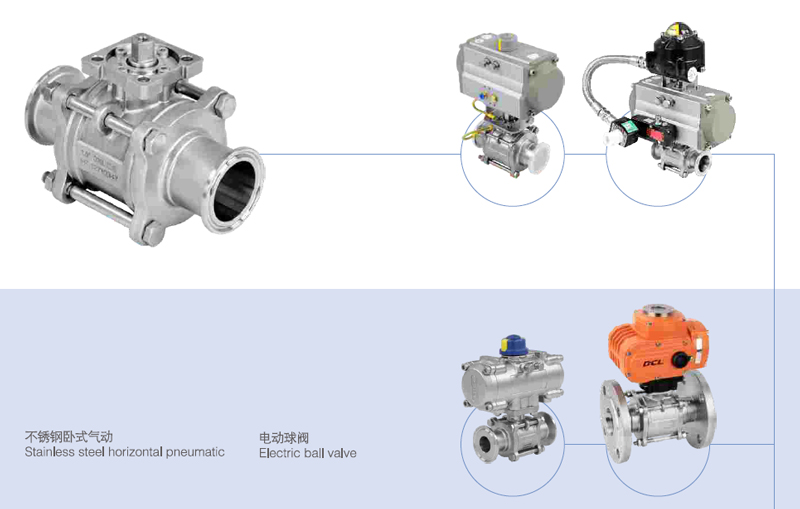

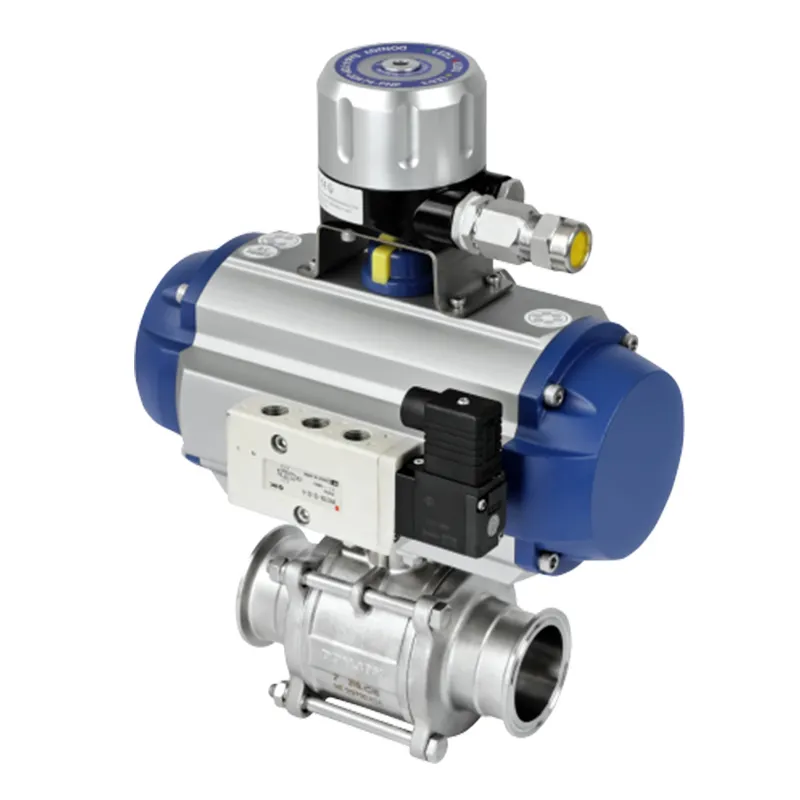

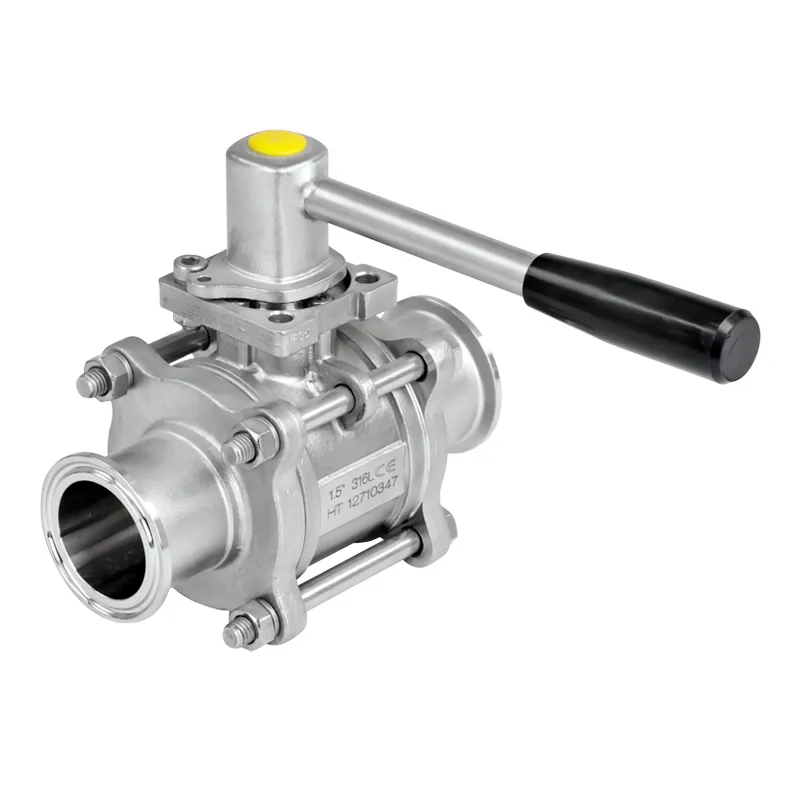

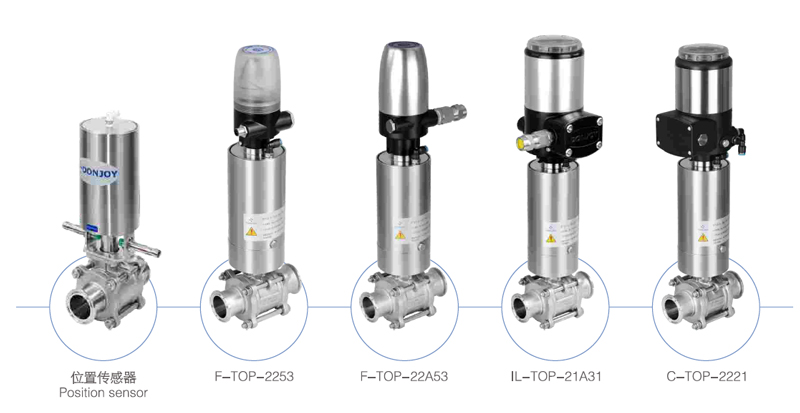

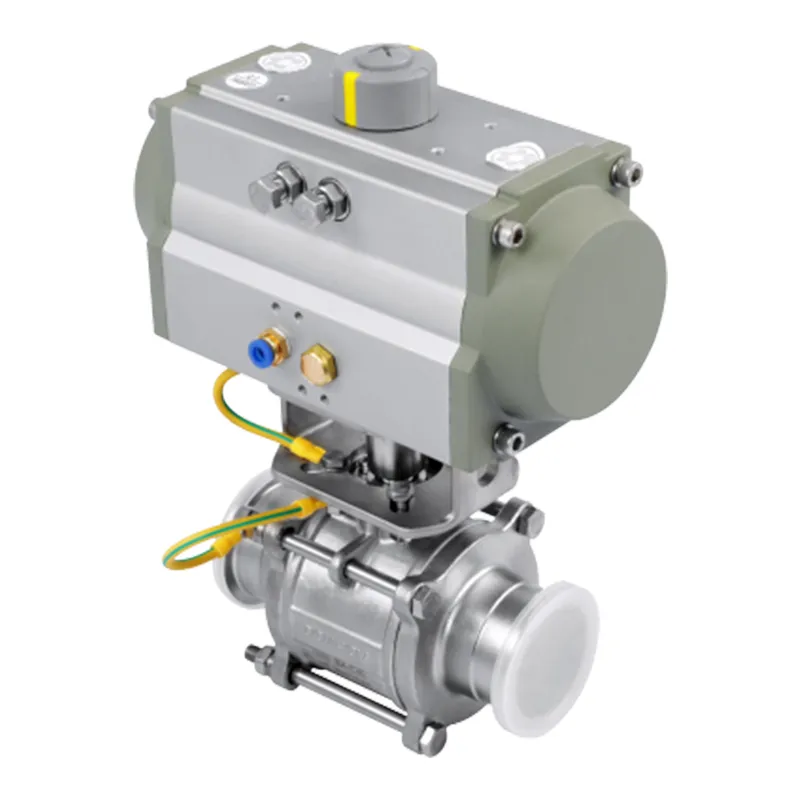

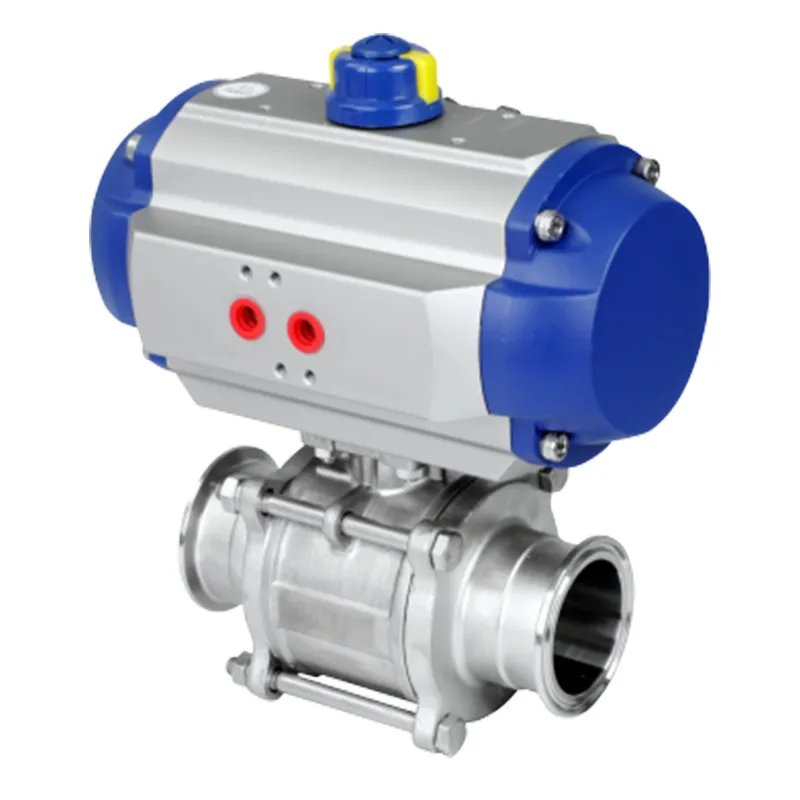

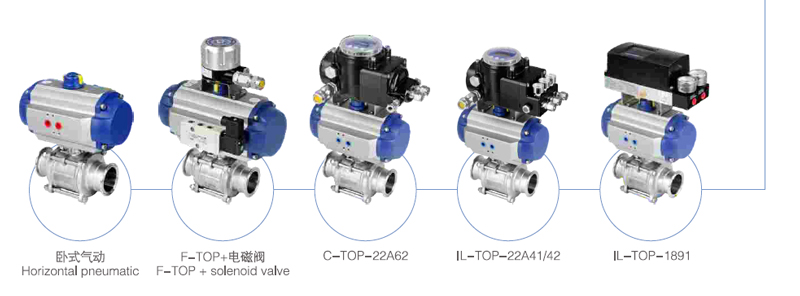

| Drive mode | manual, turbo, pneumatic, electric |
| Surface finish | Ra≤0.8μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm |
| Certification | FDA 177.2600; 3A-68-00; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC. |
Donjoy's sanitary 3-piece ball valve ensures zero contamination with easy maintenance, ideal for biopharma and food processing. Boost efficiency with certified, durable design.
